Specifications
| Measurement principle | eddy Current |
| Measurement range | 0~1500μm |
| margin of error | ±1~3%/±2.5μm |
| resolution | 0.1μm|1μm |
| Minimum measurement surface | 4mm |
| Minimum radius of curvature | Convex 10mm; Concave 8.5mm |

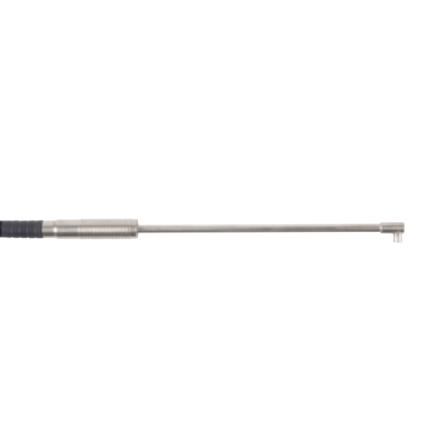

| probe | Miniature 90 ° probe |
| Calibrated Certificate | Yes. |
| Probe size | 400mm |
| Minimum headroom | 16mm |
| compatible model | Elcometer 456 Series |
| width | 7mm |
Packing list
Probe x1
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/12227/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
