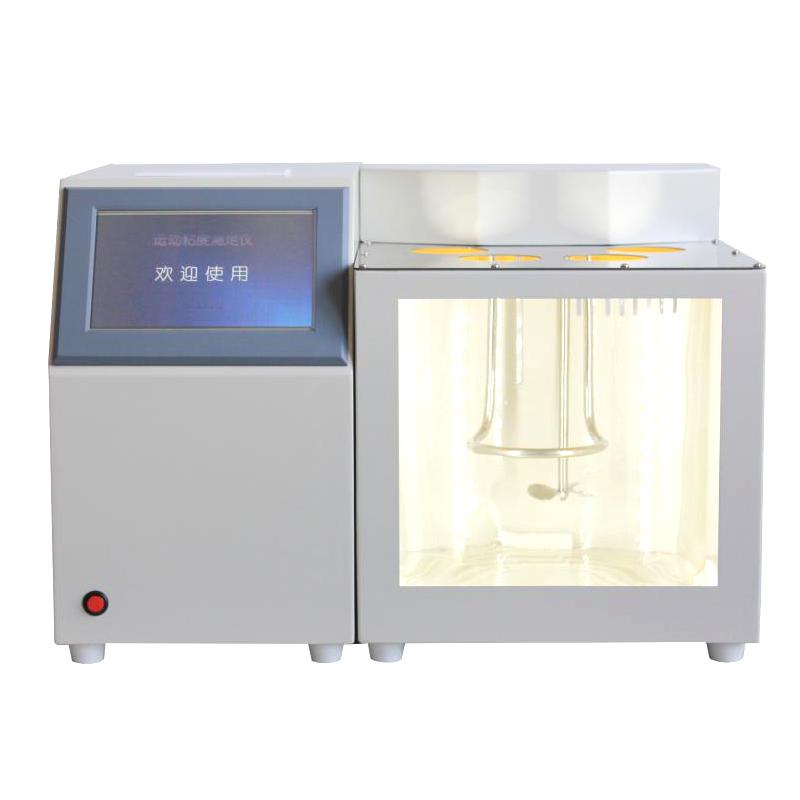

Jilin Haimai JLHM-205 Sports Viscosity Tester, temperature control: room temperature~ 100.0 ℃

JLHM-205

Motion Viscosity Tester

Introduction

The manufacture of Jilin Haimai JLHM-205 kinematic viscosity Tester complies with the requirements stipulated in the industry standard SY/T5651 of the People's Republic of CHINA "Technical Conditions for Kinematic Viscosity Testers for Petroleum Products". This instrument is suitable for measuring the kinematic viscosity of liquid petroleum products (Newtonian liquid) at a certain constant temperature according to the provisions of the People's Republic of CHINA Standard GB/T265 "Petroleum Products Kinematic Viscosity Measurement Method and Dynamic Viscosity Calculation Method".

main feature

JLHM-205 Kinematic Viscometer is based on single-chip microcomputer control, professional PID intelligent temperature control mode, temperature curve display, touch screen timing, can store 10 viscometer data, directly display the measurement results, and can print records, is Effective and intelligent analytical instruments.

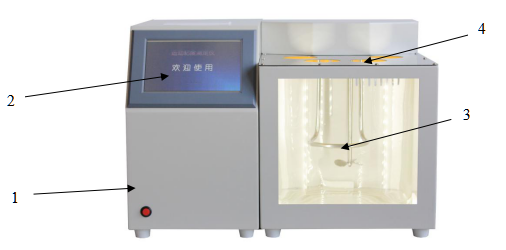

structure diagram

1- Host 2- Touch screen 3- Water bath 4- Viscometer fixture

Features

• 7-inch TFT true-color touch screen with a resolution of 800*480, the human-computer interaction is simple and easy to use.

• Using 32-bit microprocessor as the control core, a new generation of graphical operating system.

• The real-time curve displays the measured temperature, and the temperature control is accurate and stable.

• The kinematic viscometer has the function of timing, automatically calculates the arithmetic mean value, can also pre-set the viscosity coefficient, and automatically calculates the viscosity after the test is over, and automatically prints the test results.

• With the function of parameter storage, the instrument will automatically save the parameters such as the diameter and coefficient of the capillary after setting. When the same capillary is used for another test, there is no need to reset the parameters.

• It can store 50 sets of experimental data, it is convenient to find test records, and the results can be printed and deleted at any time.

• High-precision perpetual calendar clock, accurate travel time.

plan

Packing list：completeness-built unit X1, certificate of conformity X1, warranty card X1, operation manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
