Linear dispersion Tester TCK2003 DAQTECH 3 test channel, special for mobile phone UV painting tunnel furnace

TCK-2003

Furnace temperature tracker

Introduction

Dafengke TCK2003 furnace temperature curve Tester is a compact and powerful professional mobile phone UV coating furnace temperature curve Tester. It is a furnace temperature curve Tester specially designed for mobile phone UV coating tunnel furnace. It adopts K Type thermal couple, with good linearity, stability and uniformity. TCK2003 Furnace Temperature Curve Tester has 3 test channels, the measurement accuracy is ±(0.1%+1°C), equipped with special test controller and professional analysis software to provide users with accurate and effective furnace temperature tracking curve test and analysis.

Applications

TCK2003 Furnace Temperature Curve Tester is suitable for mobile phone shell coating and other similar coating processes, and is used to test the furnace temperature tracking curve.

Temperature curve analysis setting function

1. Set the temperature and transportation speed of the oven temperature zone

2. The name of the temperature sampling point and the schematic diagram of the workpiece

3. The slope between any two temperature values

4. The time between any two temperature values

5. Time beyond the specified temperature and arrival time

6. Maximum temperature and arrival time

7. Test date and time

8. Horizontal temperature line, vertical time line and the time between the two times

9. Mesh editing refinement and curve zoom display

10. Input of company name, product name and remarks

11. Select the printing direction (landscape printing and portrait printing)

12. Insert picture function to make the position of temperature test point clear at a glance

13. The temperature data report can be exported to Excel for editing

14. Call multiple sets of temperature curves for comparison

15. The software clears the data in the memory of the instrument

16. Three starting modes: manual, specified time and specified temperature

17. Two Operating Modes of real-time monitoring and TCK2003 furnace temperature tracker recording

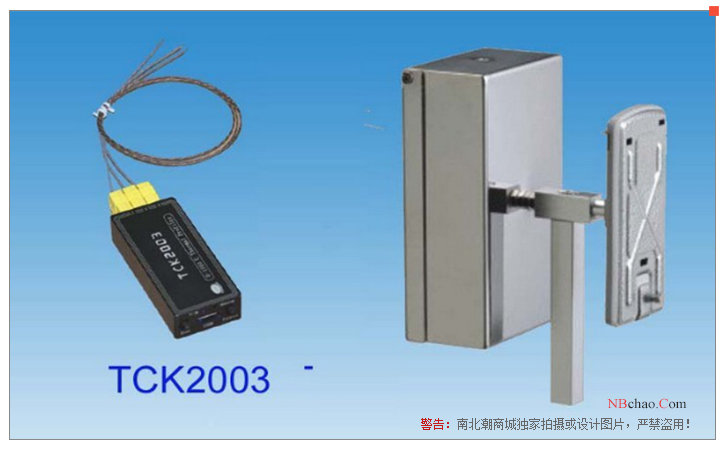

Pictures

Packing list：Host x1, instrument protection box x1, Thermocouple x3, software installation disc x1, data output line x1, high temperature adhesive paper x1, charger x1, instrument box x1, scissor x1, forceps x1, thermal insulation gloves x1, cross screwdriver x1, high temperature tin wire x1, user manual x1, certificate x1, support rod x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
