Furnace temperature tracker TCK-1204 DAQTECH four channels, mobile phone UV painting

TCK-1204

Furnace temperature tracker

Introduction

Dafengke TCK-1204 furnace temperature tracker is a mobile phone UV coating furnace temperature tracker with 4 test channels. The temperature measurement range is 0~1000 degrees Celsius and the resolution is 0.1 degrees Celsius. It uses a high-sensitivity K-type thermocouple. TCK-1204 Furnace Temperature Tracker is a professional furnace temperature tracker designed for mobile phone shell coating and other similar coating processes. It is widely used in the field of mobile phone UV coating. It is small in size and equipped with special test fixtures, which is flexible and convenient to use. , to provide users with accurate and effective furnace temperature tracking curve testing and analysis, the temperature curve is powerful, can display a variety of data and can set different start-up methods.

Temperature curve analysis setting function

1. Set the temperature and transportation speed of the oven temperature zone

2. The name of the temperature sampling point and the schematic diagram of the workpiece

3. The time between any two temperature values

4. The slope between any two temperature values

5. Test date and time

6. Time beyond the specified temperature and arrival time

7. Maximum temperature and arrival time

8. Horizontal temperature line, vertical time line and the time between the two times

9. Mesh editing refinement and curve zoom display

10. Input of company name, product name and remarks

11. Three starting modes: manual, specified time and specified temperature

12. Select the printing direction (landscape printing and portrait printing)

13. The temperature data report can be exported to Excel for editing

14. Real-time monitoring and TCK-1204 furnace temperature tracker recording two Operating Modes

15. Call multiple sets of temperature curves for comparison

17. The software clears the memory data method of TCK-1204 furnace temperature tracker

16. Insert picture function to make the position of temperature test point clear at a glance

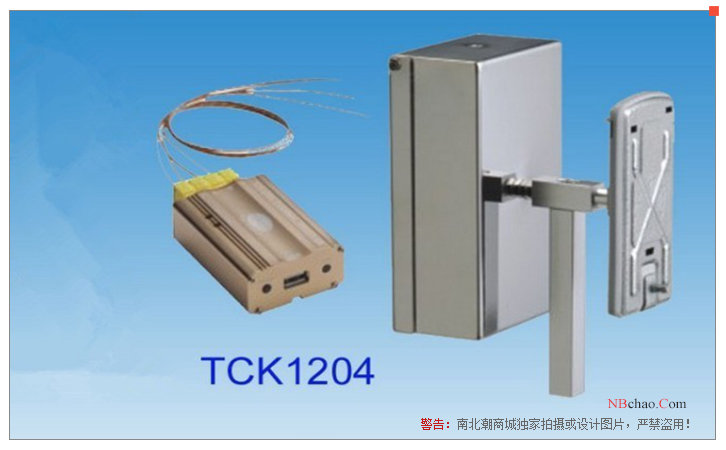

Pictures

Packing list：Host x1, instrument protection box x1, Thermocouple x4, software installation disc x1, data output line x1, high temperature adhesive paper x1, charger x1, instrument box x1, scissor x1, forceps x1, thermal insulation gloves x1, cross screwdriver x1, high temperature tin wire x1, user manual x1, certificate x1, support rod x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
