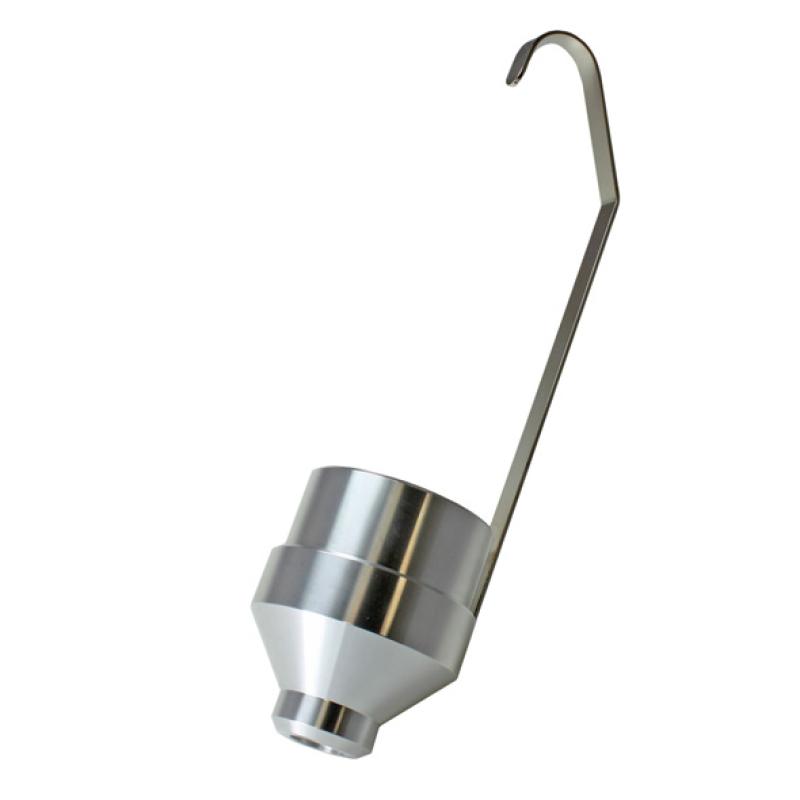

Rhopoint RL-A-FC-FRIKMAR/8 FRIKMAR Flow Cup (8mm) DIN53211

Viscosity range 1200~ 3000cSt, outflow time 25~ 150s, flow hole diameter 8mm, cup body material aluminum alloy, filter material stainless steel, applicable standard DIN 53211

$396.00/piece

PromotionLoading...

Coupon

Model：

RL-A-FC-FRIKMAR/8

RHOPOINT

Contact

Details SPEC Con CAT

RHOPOINT RL-A-FC-FRIKMAR/8 FRIKMAR flow cupSPEC

RHOPOINT RL-A-FC-FRIKMAR/8 FRIKMAR flow cupDetails

RHOPOINT RL-A-FC-FRIKMAR/8 FRIKMAR flow cupPacking list

SKU: NB012296

Viscosity range: 1200~3000cSt

outflow time: 25~150s

flow hole diameter: 8mm

Cup body material: aluminum alloy

Filter material: stainless steel

Handle material: Yes.

Applicable standards: DIN 53211

RL-A-FC-FRIKMAR/8

FRIKMAR flow cup

Viscosity range 1200~ 3000cSt, outflow time 25~ 150s, flow hole diameter 8mm, cup body material aluminum alloy, filter material stainless steel, applicable standard DIN 53211

When a fluid flows through a viscosity Flow Cup hole at a given temperature, the viscosity data provided by the Flow Cup is usually expressed in terms of flow time. From this flow time, the viscosity is calculated to centistrs (cSt).

Paints, inks, varnishes and similar industries use Flow Cups to quickly calculate viscosity.

Rhopoint Viscosity CupSuitable for UKAS/ISO 17025 certified oils and meets measurement specifications. The cup body is made of good aluminum alloy.

RHOPOINT RL-A-FC-FRIKMAR/8 FRIKMAR FLOW CUP DETAIL FIGURE 1

RhopointFull rangeViscosity cups

Model	aperture	Viscosity range	Flow time
BS FLOW CUP
RL-A-FC-PTA6/B2	2.38mm	38- 71cSt	30~300s
RL-A-FC-PTA6/B3	3.17mm	38~147cSt
RL-A-FC-PTA6/B4	3.97mm	71~455cSt
RL-A-FC-PTA6/B5	4.76mm	299~781cSt
RL-A-FC-PTA6/B6	7.14mm	781~1650cSt
*The material of the flow hole is stainless steel;BS 3900 (1971) Old Specification

DIN cup
RL-A-FC-DIN2	2mm	15~30cSt	25~150s
RL-A-FC-DIN4	4mm	112~685cSt
RL-A-FC-DIN6	6mm	550~1500cSt
RL-A-FC-DIN8	8mm	1200~3000cSt
*The material of the flow hole is stainless steel;DIN 53211

FORD FLOW CUP
RL-A-FC-ASTM1	2.1mm	10~35cSt	55~100s
RL-A-FC-ASTM2	2.8mm	25~120cSt	55~100s
RL-A-FC-ASTM3	3.4mm	49~220cSt	55~100s
RL-A-FC-ASTM4	4.1mm	70~370cSt	55~100s
RL-A-FC-ASTM5	5.8mm	200~1200cSt	55~100s
*The material of the flow hole is stainless steel;ASTM D1200 standard

ISO/ASTM Viscosity Flow Cups
RL-A-FC-ISO3	3mm	7~42cSt	30~100s
RL-A-FC-ISO4	4mm	35~135cSt
RL-A-FC-ISO5	5mm	91~325cSt
RL-A-FC-ISO6	6mm	188~684cSt
RL-A-FC-ISO8	8mm	600~2000cSt
*The material of the flow hole is stainless steel;BS EN ISO 2431, ASTM D5125standard

AFNOR Flow Cup
RL-A-FC-AFNOR/2.5	2.5mm	5~140cSt	30~100s
RL-A-FC-AFNOR/4	4mm	50~1100cSt
RL-A-FC-AFNOR/6	6mm	510~5100cSt
RL-A-FC-AFNOR/8	8mm	700~11500cSt

FRIKMAR viscosity Flow Cups
RL-A-FC-FRIKMAR/2	2mm	15~30cSt	25~150s
RL-A-FC-FRIKMAR/4	4mm	112~685cSt
RL-A-FC-FRIKMAR/6	6mm	550~1500cSt
RL-A-FC-FRIKMAR/8	8mm	1200~3000cSt
*The material of the flow hole is stainless steel;DIN 53211standard

FAQ

QIs there a FRIKMAR flow cup that meets the JJG743 standard?

A This RL-A-FC-FRIKMAR/8FRIKMAR flow cup meets the requirements, please consult the service for details.

QCoating viscosity measured by flow cup method, must be at the specified temperature? If not according to the specified viscosity will have any impact?

A Viscosity cup measurement generally has 3 variables, viscosity, outflow time and temperature. Temperature is specified in many viscosity measurement standards because temperature has a large impact on viscosity, and the change of viscosity with temperature may not be dominant, and any diluted material used to adjust viscosity may also change the rate of this change.
