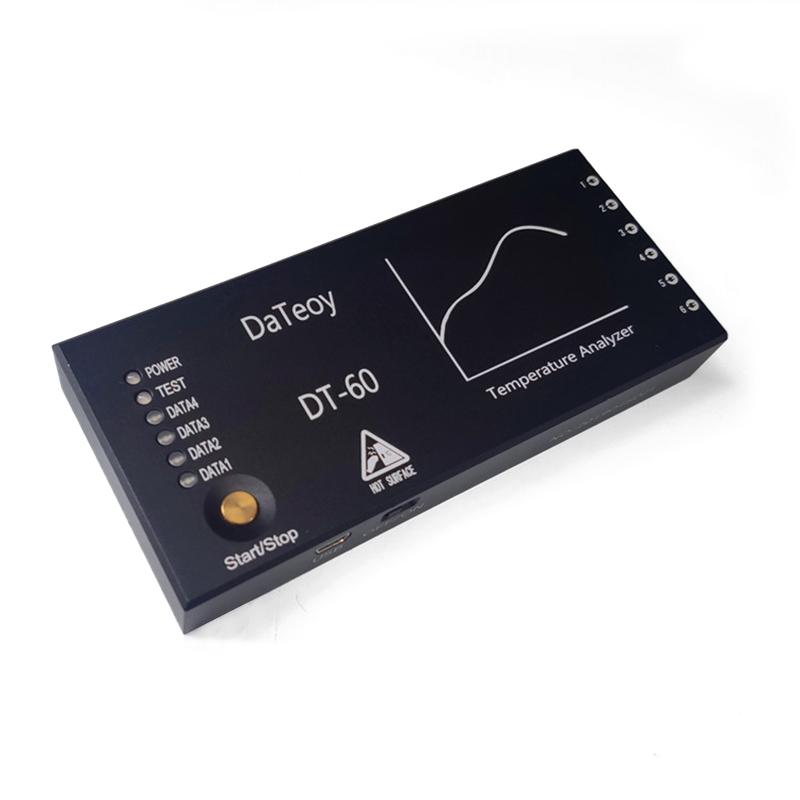

Furnace temperature tracker DT-60 DAQTECH 6 channel brazing heat treatment thermometer with +/- 1 ℃ accuracy

DT-60

Furnace temperature tracker

Introduction

Dafengke DT-60 furnace temperature tracker is a furnace temperature testing instrument with high measurement accuracy and good stability, which is a brazing heat treatment thermometer, which can track and monitor the heat treatment furnace and products through the heat treatment furnace together with the tested product, provide temperature curve analysis report, present the temperature status of the product and furnace to the engineer, and assist the staff to optimize it in time. Monitor problems with furnace temperature trackers, control a balanced temperature, time and heating rate, and improve line speed and product quality.The DT-60 furnace temperature tracker is equipped with a powerful software analysis system, which can save the collected temperature data, and the software system of the upper computer carries out synchronous processing of functional temperature and length, time, product function and other parameters.

Analyze system benefits

1. Set the temperature and transportation speed in the oven temperature zone

2. The time between any two temperature values 3. The slope between any two temperature values

4. Maximum temperature and arrival time 5. Horizontal temperature line, vertical time line and time between two times

6. Test date and time

7. Enter the company name, product name and remarks information

8. The temperature data report can be exported to Excel for editing. 9. Insert the picture function, so that the location of the temperature test point is clear at a glance

10. The software clears the memory data of the instrument

11. There are three starting modes: manual and specified temperature

Thermometer advantages

• Up to 8 types of probes to choose from

• Calibrated with standard Voltage and cold node temperature correction available

• Real-time wireless/wired data reception (optional)

• When the instrument is powered off, the data when the power is off is intelligently saved

• Multiple tests and storage of up to 4 sets of data

• USB communication port for fast download and charging, 50 hours of continuous use on a full charge

• Various indicators clarify the various application status of the instrument, one-key operation, easy to learn and use

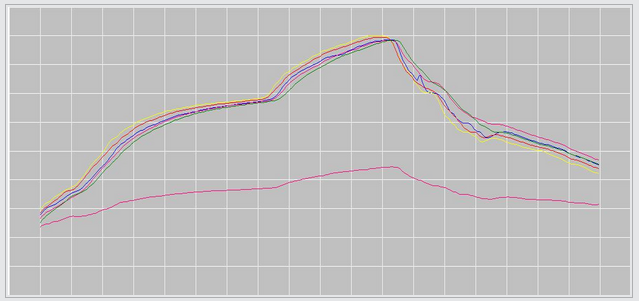

Temperature data software analysis function

1. Set the temperature and transportation speed in the oven temperature zone                           2. The time between any two temperature values

3. The slope between any two temperature values                              4. Maximum temperature and arrival time

5. Horizontal temperature line, vertical time line and time between two hours      6. Test date and time

7. Enter the company name, product name and remarks information             8. The temperature data report can be exported to Excel for editing

9. Insert the picture function to make the position of the temperature test point clear at a glance      10. The software clears the memory data of the instrument

11. There are three starting modes: manual and specified temperature

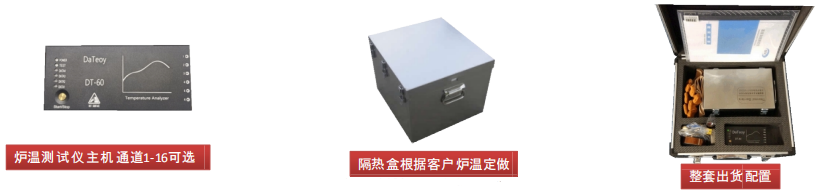

Packing list：Host x1, thermal insulation box x1, Thermocouple x6, software installation U disk x1, data output line x1, high temperature adhesive paper x1, instrument box x1, scissor x1, thermal insulation gloves x1, user manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
