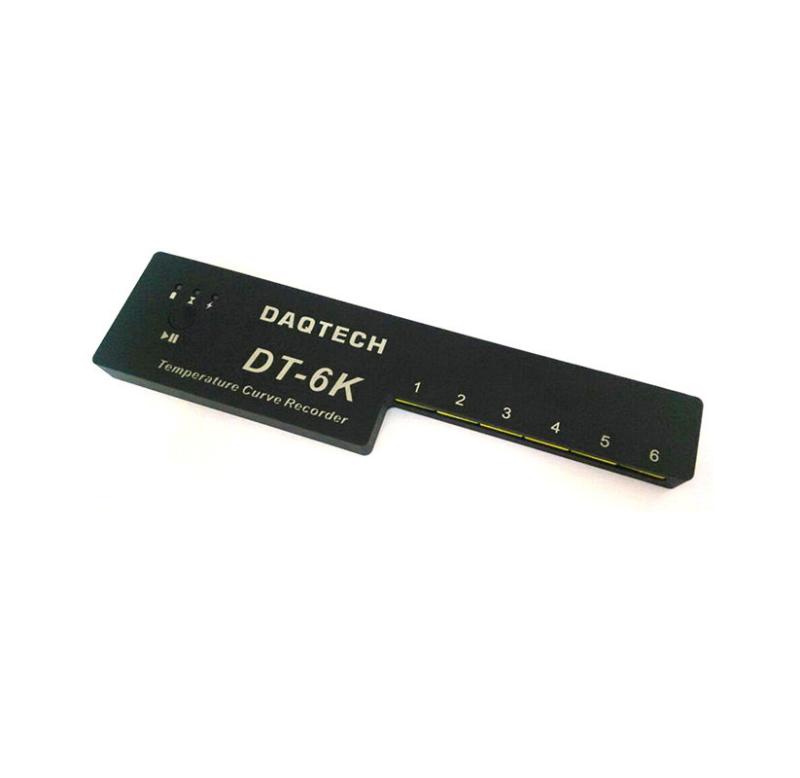

Furnace temperature tracker DT-6K DAQTECH 6 channels 0~500 ℃
SE
DT-6K
DAQTECH DT-6K Furnace temperature trackerSPEC
DAQTECH DT-6K Furnace temperature trackerDetails

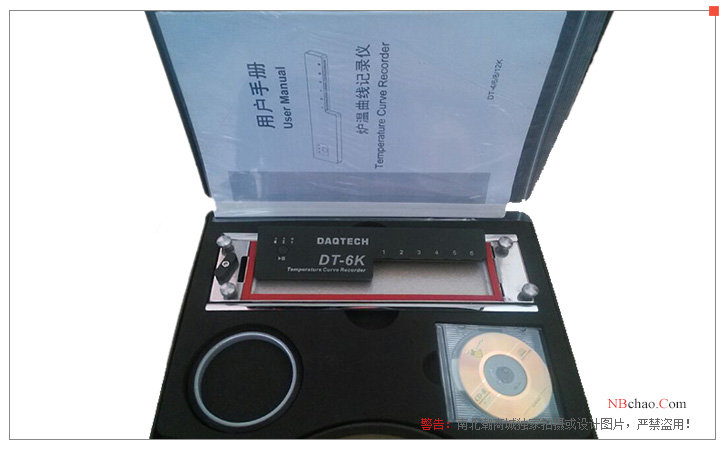

DAQTECH DT-6K Furnace temperature trackerPacking list
- SKU
- NB001232
- Number of channels
- 6
- Probe Type
- K type
- temperature Measurement Range
- 0~500℃
- temperature measurement Accuracy
- ± 1 ℃ (within 500 ℃)
- Sampling interval
- 0.05S/channel~~ 5S/channel
- resolution
- 0.1 ℃ (full scale)
- Storage Capacity
- Storage of total data 3.90 million points, continuous recording of unlimited sets of Linear dispersion data
- Total power
- ≤100mw
- Power
- 3.2VDC (built-in explosion-proof rechargeable battery)
- Connectivity
- USB(mini-B型）
- Recorder size
- 220*54*12.5mm
- Insulation box size
- 296*75*28mm
- Maximum load temperature
- When the internal temperature of the instrument exceeds 80 ℃, the instrument will automatically stop working
Introduction
Dafengke DT-6/8/12K furnace temperature tracker is a wave soldering furnace temperature Tester, which has three models of 6-channel, 8-channel and 12-channel, and is specially designed for wave soldering and reflow soldering. Type temperature measurement supporting device, can realize two functions of wave soldering and reflow soldering. The temperature measurement range of DT-6/8/12K furnace temperature tracker is 0~500 degrees Celsius, the sampling rate is 0.05s/channel~5S/channel, it adopts K-type thermocouple with high sensitivity, and the stored data capacity is 3.9 million It can continuously record wireless group curve data, and can cooperate with software to realize data analysis and consider temperature curve and production process.
Applications
Dafengke DT-6/8/12K furnace temperature tracker is suitable for the consideration of the mounting and plug-in PCB welding process of electronic production enterprises, and can be used to measure the temperature of reflow soldering, wave soldering, tunnel furnace and other various ovens.
Features
1. The operation is simple and convenient, one-button operation.
2. DT-6/8/12K furnace temperature tracker adopts humanized interface and has powerful software analysis function.
3. Data transmission is carried out through USB2.0 and the furnace temperature tracker is charged through USB.
4. With large capacity storage, it can record 3.9 million data points, and can continuously store more than unlimited sets of curve data.
5. Low power consumption design, automatically switch to power saving mode in standby mode, and can be used for 5 hours of continuous testing.
Heat shield parameters
| temperature | 150°C | 200℃ | 250°C | 300℃ |
| time | 18min | 10min | 8min | 5min |

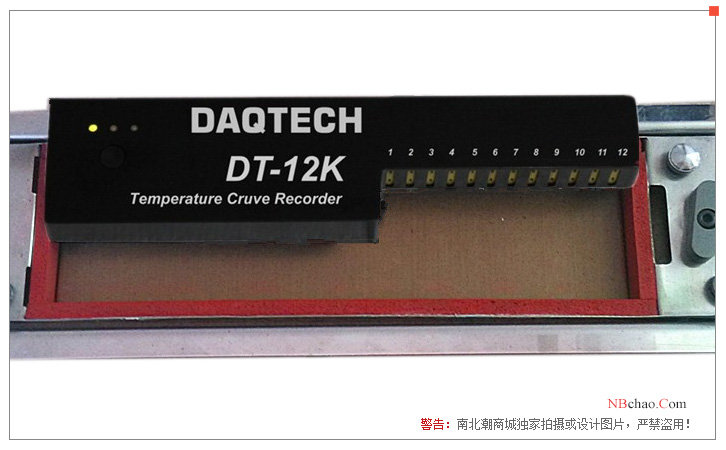

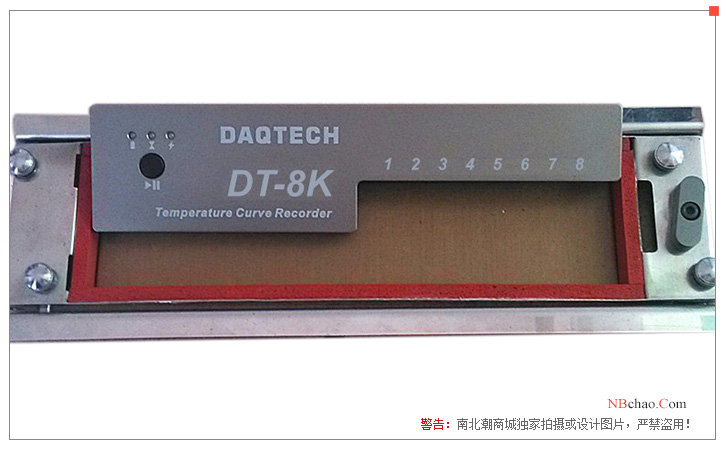

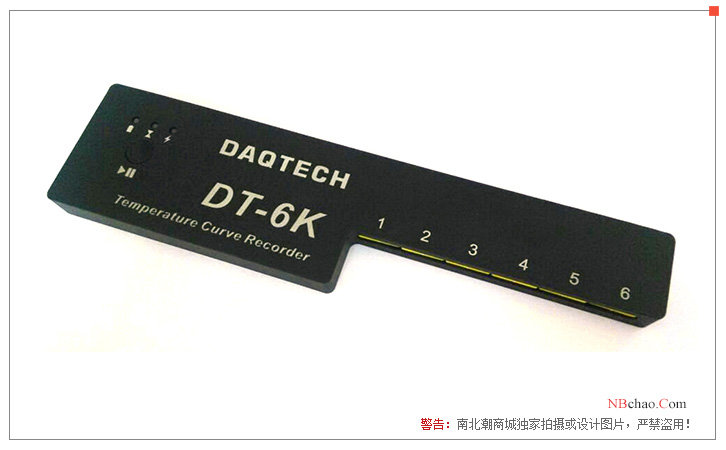

Pictures
