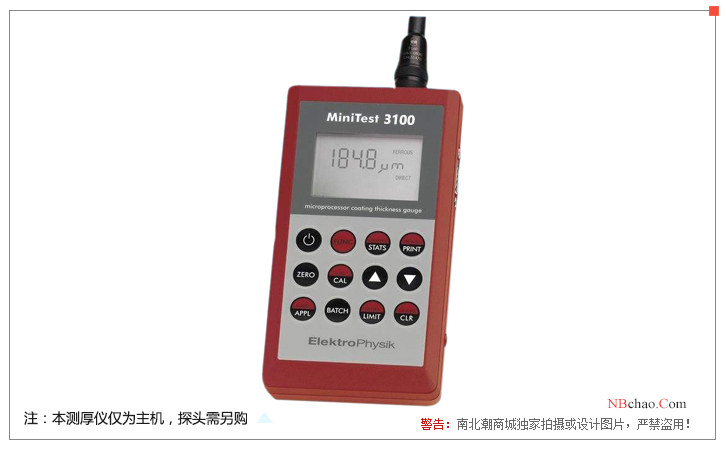

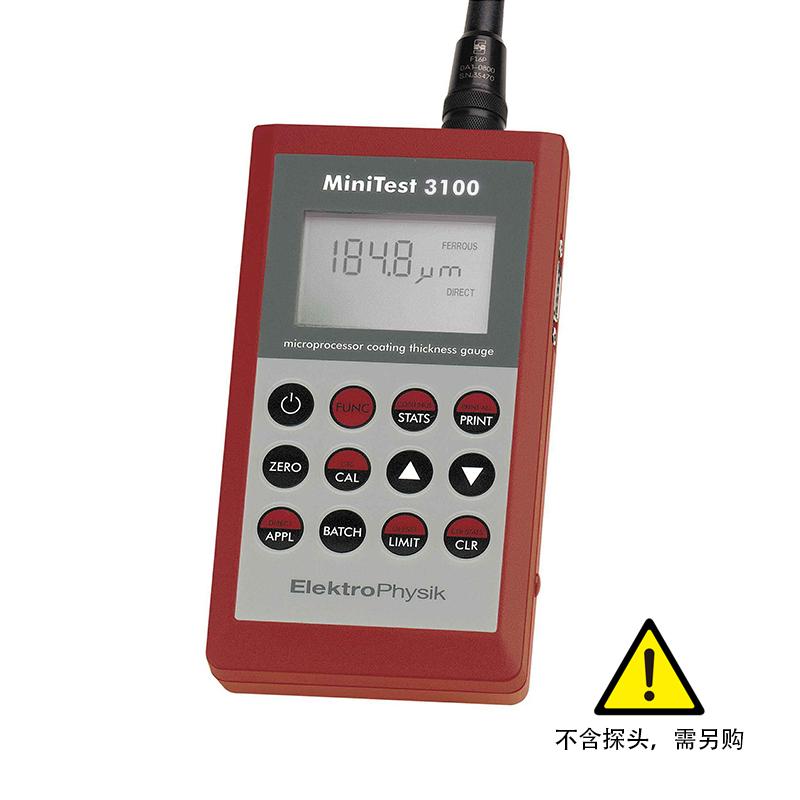

German EPK MiniTest 3100 microcomputer precision platings Thickness Gauge host, without probe

EPK MiniTest 3100 Precision Coated Platings Thickness Gauge is a MiniTest microcomputer precision Dry-Film instrument, which can be divided into 10 groups and store a total of 10,000 measurement data. The Mintest3100 Precision Coated Platings Thickness Gauge has data statistics and can set limit values.

Model：

MiniTest 3100

ElektroPhysik

Contact

Details SPEC CAT

ElektroPhysik MiniTest 3100 Coated platings Thickness GaugeSPEC

ElektroPhysik MiniTest 3100 Coated platings Thickness GaugeDetails

ElektroPhysik MiniTest 3100 Coated platings Thickness GaugePacking list

SKU: NB012397

Measurement principle: Magnetic Induction + eddy Current

Measurement range: Determined by the probe

margin of error: Depending on the probe

Minimum measurement surface: Depending on the probe

Minimum radius of curvature: Depending on the probe

thinnest substrate: Depending on the probe

probe: Line probe

Calibrated Certificate: none

Unit display: μm

statistical function: none

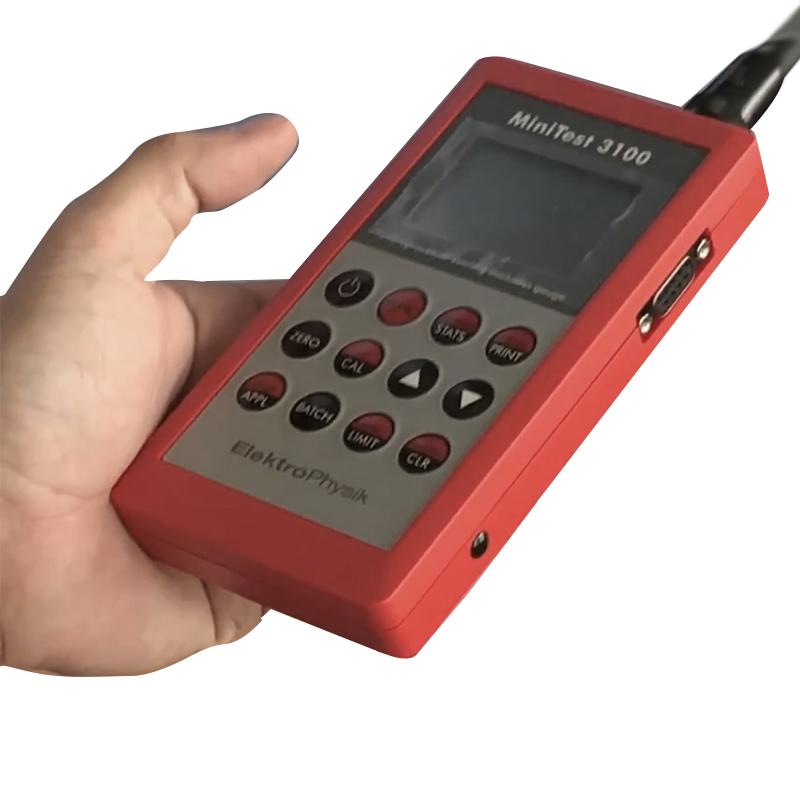

Interface: RS-232

Data storage: 10,000 Measured values

Power Supply: 1 * 9V alkaline battery, AC adapter

Standards: DIN 50981、DIN 50982、DIN 50984、ISO 2178、ISO 2360、BS 5411、ASTM B499、ASTMB244-CE

Display screen: LCD screen

Operating temperature: 0~50℃

Battery life: 10,000 measurements

Weight: 270g

Dimension: 150*82*35mm

number of rows applied: 10

Number of groups per application line: 10

Groupable number in memory: most

MiniTest 3100

Coated platings Thickness Gauge

Introduction

The German EPK MiniTest Precision Coating Thickness Gauge is used to measure the following cladding (cladding includes coatings, coatings, etc.):

● Non-magnetic cladding on steel substrates (e.g. paint, zinc);

● Insulating cladding on non-ferrous metals (e.g. paint, anodized film);

● Non-ferrous metal cladding on the insulating substrate.

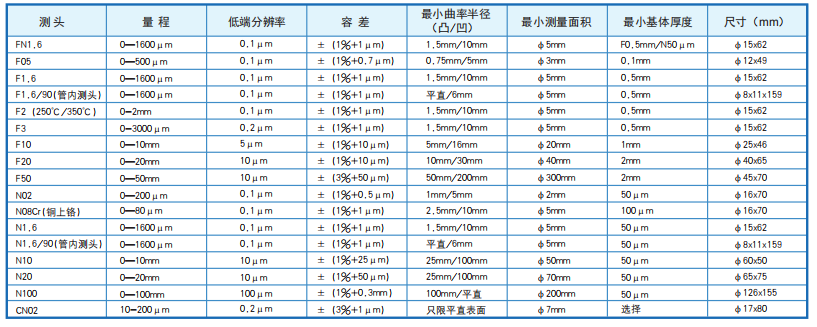

The Mintest Coated Thickness Gauge contains: Minitest 4100、 Minitest 3100、 Minitest 2100、 Minitest The 1100 has four different hosts, each with different data processing capabilities. All probes can be used with either host unit. Factors such as cladding thickness, substrate material, substrate shape, thickness, size, geometry and other factors should be considered when selecting the most suitable probe.

The MiniTest 3100 host can store up to 10,000 measured values in 10 application rows, each of which can be divided into 10 groups. The memory function is useful if different measuring tasks require frequent probe changes for different calibrations. Different calibration and probe parameters can be stored separately and can be recalled at any time. Measurement data can be evaluated and analysed in a variety of statistical ways. Setting limit values allows the operation to be used to monitor tolerances that occur during the production process while taking measurements.

Product Applications

EPK MiniTest 3100 precision coating Thickness Gauge is widely used in automotive, shipbuilding, aviation and machinery manufacturing industries, first-class government inspection agencies and electroplating industries.
