German EPK MiniTest 735 F5 iron-based Thickness Gauge, measuring thickness 0~5000μm

SE
The German EPK MiniTest 735 iron-based Thickness Gauge has an external F5 probe, and the thickness measurement range is 0~5000 μm. The MiniTest 735 iron-based Thickness Gauge can store 100,000 readings, has a limit monitoring function, and can use continuous Measurement mode.
$1787.00/set
PromotionLoading...
Coupon
Contact
Details SPEC Con VIDEO CAT OI
Similar products

ElektroPhysik MiniTest 735 F5 Coating Thickness GaugeSPEC

ElektroPhysik MiniTest 735 F5 Coating Thickness GaugeDetails

ElektroPhysik MiniTest 735 F5 Coating Thickness GaugePacking list

SKU
NB012413
Measurement principle
Magnetic Induction
Measurement range
0~5000μm
margin of error
±0.75%
Minimum measurement surface
10mm
probe
Line probe
Calibrated Certificate
Manufacturer Certificate
Calibrated mode
Factory calibrated, zero calibrated, 2 point calibrated, 3 point calibrated, rough Calibration method "rough"
Unit display
μm/mm/cm/mils/inch/thou
statistical function
Number of readings, MIN Minimum, MAX Maximum, mean, standard deviation, coefficient of variation, single-valued statistics, chunk statistics (conforming to specifications/free configuration)
Interface
USB、Bluetooth
Data storage
100000 Measured values
Power Supply
2 AA (AA) batteries; optional rechargeable nickel-metal hydride battery, AA/HR6 type. Battery or rechargeable battery settings are optional to match Rated Voltage.
Standards
DIN EN ISO 1461、DIN EN ISO 2064、DIN EN ISO 2178、DIN EN ISO 2360
Language
20 languages
Display screen
LCD screen
Operating temperature
-10~60℃
supporting software
Yes.
Machine Weight
210g
Machine size
157*75.5*49mm
Storage temperature
-20~70℃
Calibrate to international standards and norms
ISO international standards organization, SSPC American protective coatings association, "Swedish" Sweden, "Australian" Australia
limit monitoring
Output visual and auditory signals
Measurement speed
70 readings per minute in single-value mode; 20 readings per second in continuous mode
continuous mode
For quickly identifying thickness changes
Standards
DIN EN ISO 2808、DIN EN ISO 3882、ISO 19840、ASTM B 244、ASTM B 499、ASTM D 7091、ASTM E 376、AS 3894.3、SS 184160、SSPC-PA 2
MiniTest 735 F5
Coating Thickness Gauge
German EPK MiniTest 735 F5 iron-based Thickness Gauge, measuring thickness 0~5000μm Picture

Introduction

The German EPK MiniTest 735 coating Thickness Gauge combines accuracy and flexibility. Equipped with a Bluetooth interface to wirelessly transfer data to a computer, tablet or smartphone. MiniTest 735 coating Thickness Gauge uses an external probe, which has the advantages of high accuracy and easy measurement, and can be used to measure hard-to-reach places.

Applications

● Non-magnetic coatings such as paint, varnish, enamel, chrome and zinc plating

●  Steel substrate or insulating coating such as paint, anodized film or ceramics, etc.

●  Non-ferrous metal substrate copper, aluminum, die-cast zinc, copper, etc.

Features

○ Can transmit data to computer, tablet or mobile phone client through Bluetooth interface

○  Large capacity memory for up to 100,000 readings

○  Simple, menu-based operation in up to 20 languages

○  Improving accuracy with various calibration modes

○  Perfect compensation after temperature changes covers the entire measurement range

○  Excellent accuracy and repeatability rely on SIDSP technology

○  Limit value monitoring, user-adjustable compensation and correction values ​​for rough base materials

○  Continuous measurement mode

○  Free software update downloads for main unit and probe via Internet.

plan

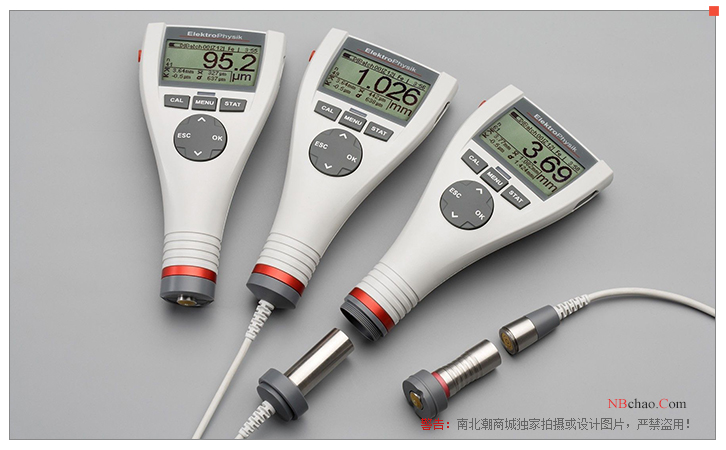

German EPK MiniTest 735 iron-based Thickness Gauge display picture

Optional probe for MiniTest 735 coating Thickness Gauge

MiniTest 725/735/745 coating Thickness Gauge optional probe


FAQ
QCan MiniTest 735 F5 Coating thickness gauge be used to test anti-corrosion coatings?
A Yes, this is a magnetic Induction Coating thickness gauge. The range is 5mm.
QAre all Coating thickness gauges available for testing in the ISO 2178 standard?
A Not necessarily, but this MiniTest 735 F5 Coating thickness gauge can be considered.
QChrome plating thickness gauge Substrate, Seamless 20 gauge steel I use it for testing Eletroplating, only for testing Eletroplating.
A Chromium plating on metal cannot use mainstream magnetic induction or eddy current methods, and Coulomb method is required for measurement. Please select Miscellaneous principle thickness gauge.
