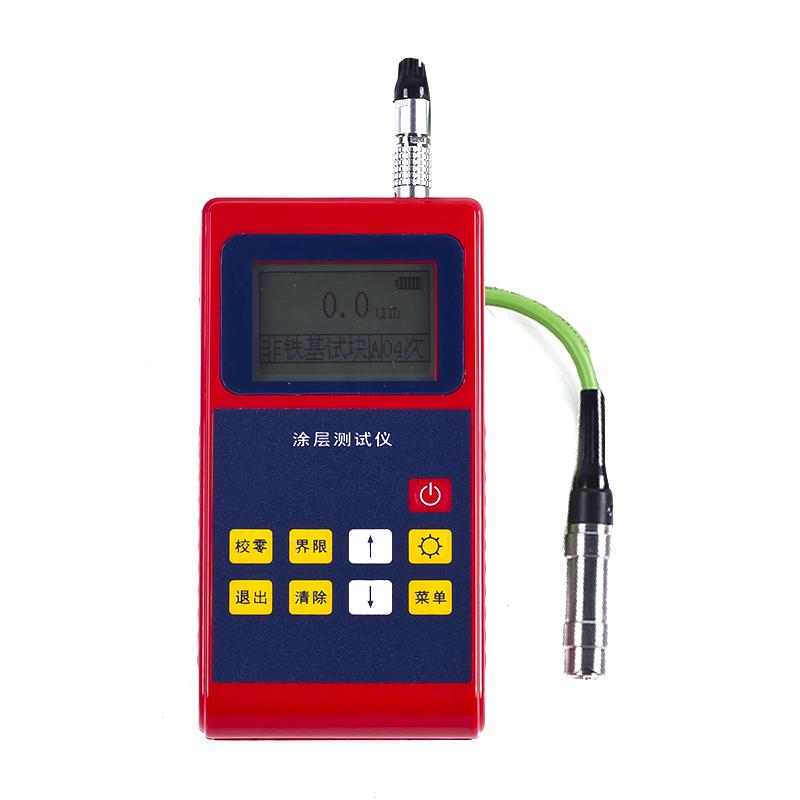

Leeb222 (N1) eddy current Thickness Gauge for non-magnetic metal substrates

leb222 (N1)

Coating Thickness Gauge

1250 micron range, ± 3% error, eddy current thickness measurement; storage capacity 500 readings; limits can be set.

Introduction to Leeb222(N1) Eddy Current Thickness Gauge

Libo leeb222 coating Thickness Gauge host is a dual-purpose portable Thickness Gauge, which is an external probe type. There are two types of probes, F1 and N1, and the measuring range is 0~1250 microns. The casing of Leeb222 Coating Thickness Gauge is red plastic, equipped with two probes and calibration sheet, the operation interface has "zero", "limit", "exit", "clear", "up", "down" Menu" and other operation buttons. Libo leeb222 (N1) eddy current Thickness Gauge is suitable for measuring the thickness of the non-conductive insulating coating on the non-magnetic metal substrate.

Applications

Libo leeb222 eddy current Thickness Gauge can be widely used in electroplating, anti-corrosion, aerospace, aviation, chemical industry, automobile, shipbuilding, light industry, commodity inspection and other testing fields. It can be used in both laboratory and engineering site.

Features and advantages

●Data deletion function;

●Boundaries can be set;

●Full Chinese menu;

●Two measurement methods;

●Two Operating Modes;

●Power underVoltage indication;

●Can store 500 measured values;

●Manual and automatic shutdown methods.

●Automatic alarm for measured values outside the limit;

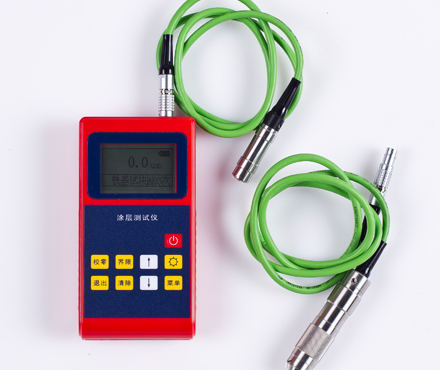

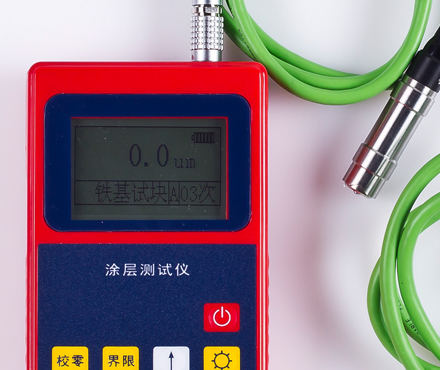

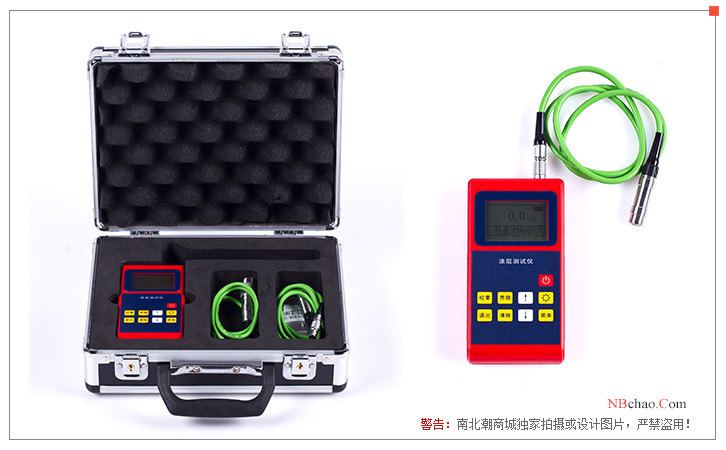

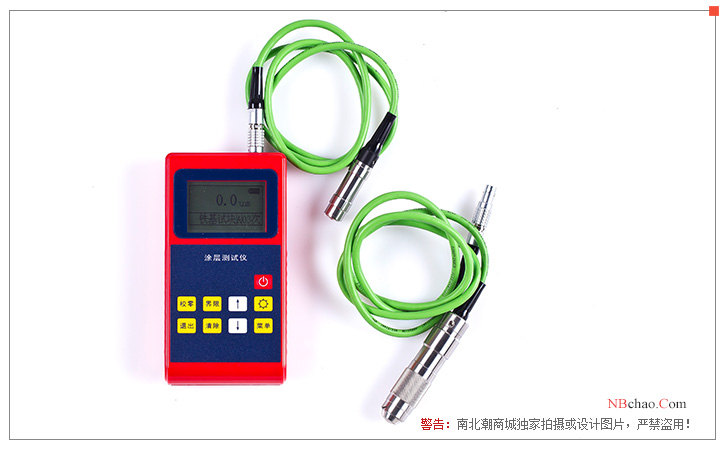

Pictures

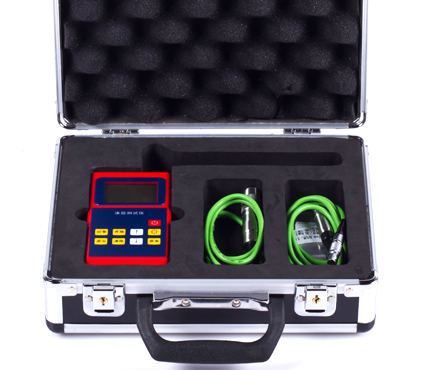

Packing list：Host x1, probe x1, standard test piece x1, substrate x1, AAA alkalinity battery x1, certificate x1, manual x1, outer Encasement box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
