Elcometer 108 F108---2D Hydraulic Adhesion Tester Digital

SE
The Elcometer 108 Hydraulic Adhesion Tester is a digital hand-held hydraulic adhesion instrument for surface or flat testing. The Elcometer 108 Hydraulic Adhesion Tester test range is 0~25MPa.
Model：
Contact
Details SPEC CAT

Elcometer F108---2D Hydraulic Adhesion TesterSPEC

Elcometer F108---2D Hydraulic Adhesion TesterDetails

Elcometer F108---2D Hydraulic Adhesion TesterPacking list

SKU
NB012462
Range
0~25MPa/0~3600psi
Dial Pressure Meter Accuracy
+/- 1MPa metric range; 150psi (imperial range)
outer diameter of forging die
19.4mm
Forging die inner diameter
3.7mm
Forging die area
284mm²
meet the standard
ASTM D 4541, ISO 16276-1, NF T30-606
Display
digital
Calibrated Certificate
none
F108---2D
Hydraulic Adhesion Tester

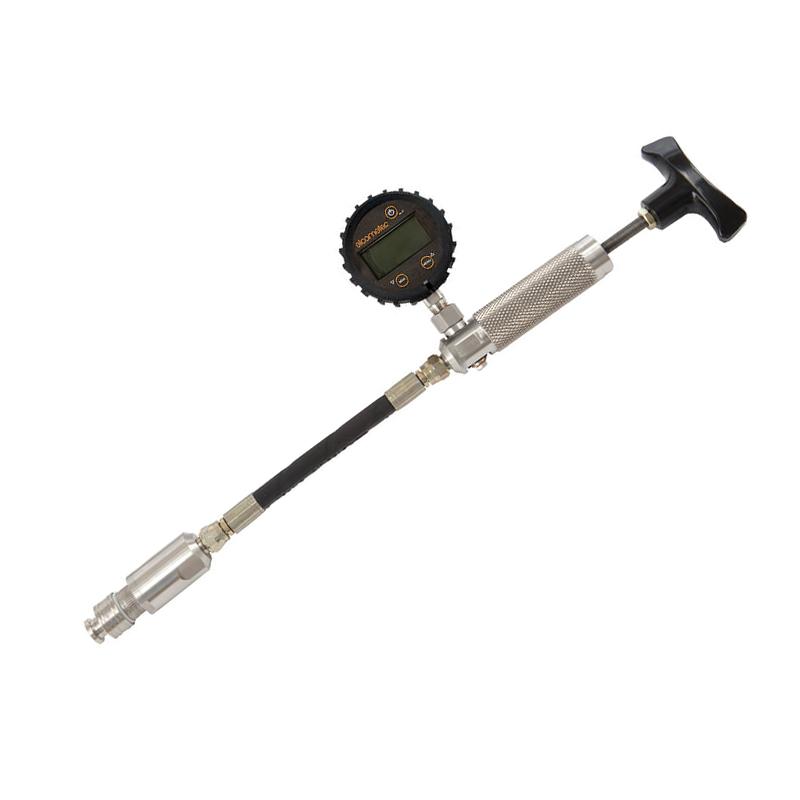

Elcometer 108 F108---2D Hydraulic Adhesion Tester Digital Picture

The Elcometer 108 Hydraulic Adhesion Tester is extremely versatile and can meet a wide range of adhesion testing requirements. Tests can be performed on flat or curved (concave or convex) surfaces.

The Elcometer 108 is suitable for measuring tanks, pipes and much more.

  • Manual power on, easy to carry

  • Suitable for on-site work

  • Reusable stainless steel dollies




Elcometer Digital Adhesion Tester features:

  • Maximum pull-off force – shows the highest value achieved

  • The backlit display copes with dark environments

  • Rubber protective cover

  • Imperial metric units are interchangeable

The Elcometer 108 can be used with bump dollies to measure coating adhesion on all pipes, tanks and other surfaces, including small diameter pipes. A wide variety of bending doldies are available, each designed for a different degree of bending.


FAQ
QCan you send it for inspection and attach a third-party Measurement Certificate?
A Yes, extra charge is required.
QIs the spindle and glue of this F108---2D Hydraulic Adhesion Tester sold separately?
A OK
QHow big is the Elcometer 108 Adhesion Tester?
A Hello, the outer diameter is 19.4mm, the inner diameter is 3.9mm, and the area is 284mm ².
QAre All Hydraulic Adhesion Testers Available for Testing in ASTMD 4541?
A Not necessarily, but this F108---2D Hydraulic Adhesion Tester can be considered.
