Leeb342 Ultrasonic Thickness Gauge with print and data storage, straight probe standard

Lib 342

Ultrasonic Thickness Gauge

Introduction

Libo leeb342 ultrasonic Thickness Gauge is an ultrasonic Thickness Gauge with a display resolution of 0.01mm and an external probe. The surface temperature range of the measured object is -10~60 degrees Celsius. It is suitable for making ultrasonic waves propagate inside it at a constant speed. And the thickness measurement of various material thicknesses reflected from the back can be obtained. Leeb342 Ultrasonic Thickness Gauge has a data storage function, and has a built-in high-speed thermal printer, which can print the measured data during the measurement process, and the measurement is accurate and reliable.

Product principle

Similar to the principle of light wave measurement, the principle of ultrasonic thickness measurement is that the sound wave emitted by the probe rushes to the object under test and propagates in the object, and is reflected back to the probe when it reaches the interface of the material. The thickness of the material.

Features

1. Leeb342 Ultrasonic Thickness Gauge has a built-in high-speed thermal printer with printing function.

2. Test data can be stored.

3. The upper and lower limit tolerances can be set, and the test data will automatically alarm if the test data exceeds.

4. Voltage prompt function, automatic shutdown.

5. Automatic calibration of zero point, system error can be corrected.

6. Leeb342 Ultrasonic Thickness Gauge can measure the sound velocity according to the known thickness.

7. Measurement unit metric/imperial optional.

8. For the known thickness of composite and unknown materials, back-measure the accurate sound velocity.

Applications

Leeb342 Ultrasonic Thickness Gauge is suitable for measuring the thickness of metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramics, glass, glass fiber and any other good conductor of ultrasonic waves. Thickness detection of containers, etc., used in chemical industry, metallurgy, shipbuilding, aerospace, petroleum and other fields.

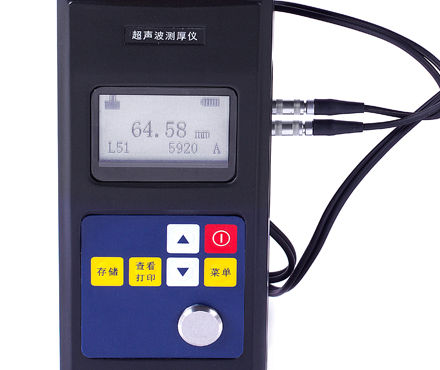

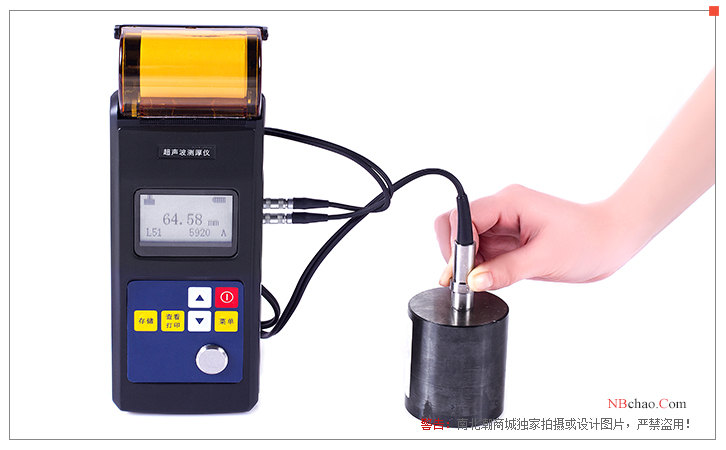

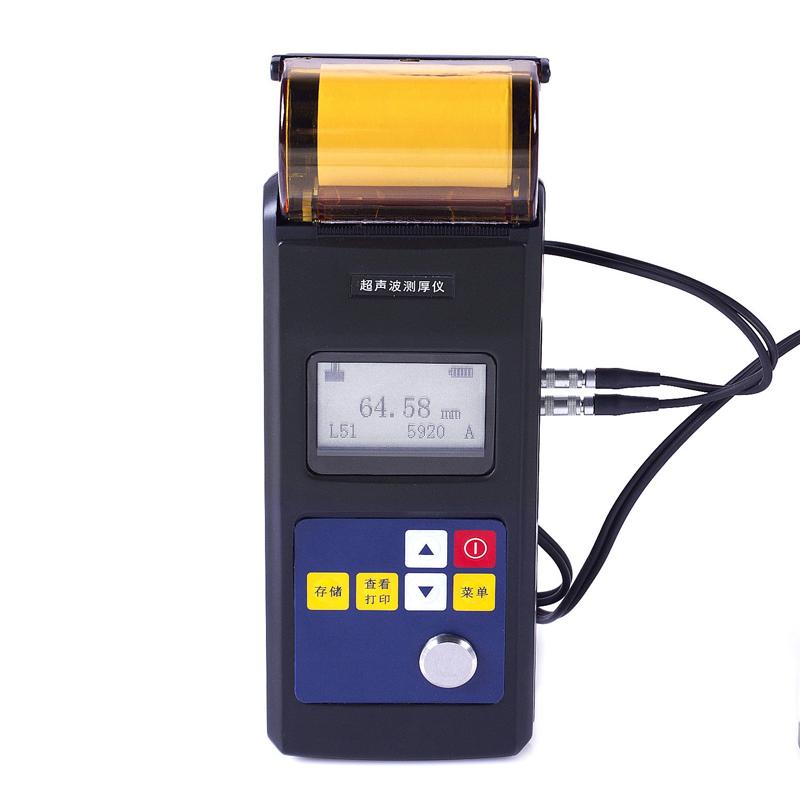

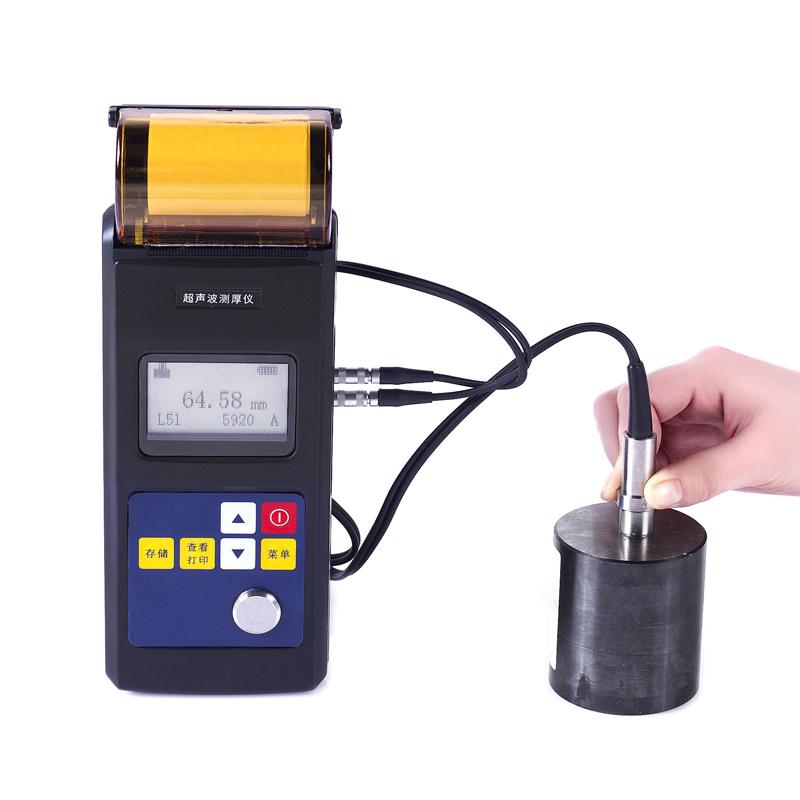

Pictures

different probe types

Packing list：Host x1, Probe x1, Power Adapter x1, Coupling Agent x1, Printing Paper x1, Random Test Block x1, Certificate x1, Manual x1, Outer Encasement Box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
