Elcometer 155 B15513573-10 Uncured Powder coating Wet Film Comb Set (2pcs)

SE
Elcometer 155 Uncured powder coating Wet Film Comb B15513573-10 is a Wet Film Comb set with two different thickness measurement ranges with an Accuracy of +/- 5μm.
Contact
Details SPEC CAT
Similar products

Elcometer B15513573-10 Uncured powder coating Wet Film CombSPEC

Elcometer B15513573-10 Uncured powder coating Wet Film CombDetails

Elcometer B15513573-10 Uncured powder coating Wet Film CombPacking list

SKU
NB012513
Range
50~225μm/225~1250μm
Accuracy
±5μm
shape
polygon
material
stainless steel
Weight
18g
Appearance size
38*46mm
Application standard
ASTM D7378-A
Calibrated Certificate
without
B15513573-10
Uncured powder coating Wet Film Comb

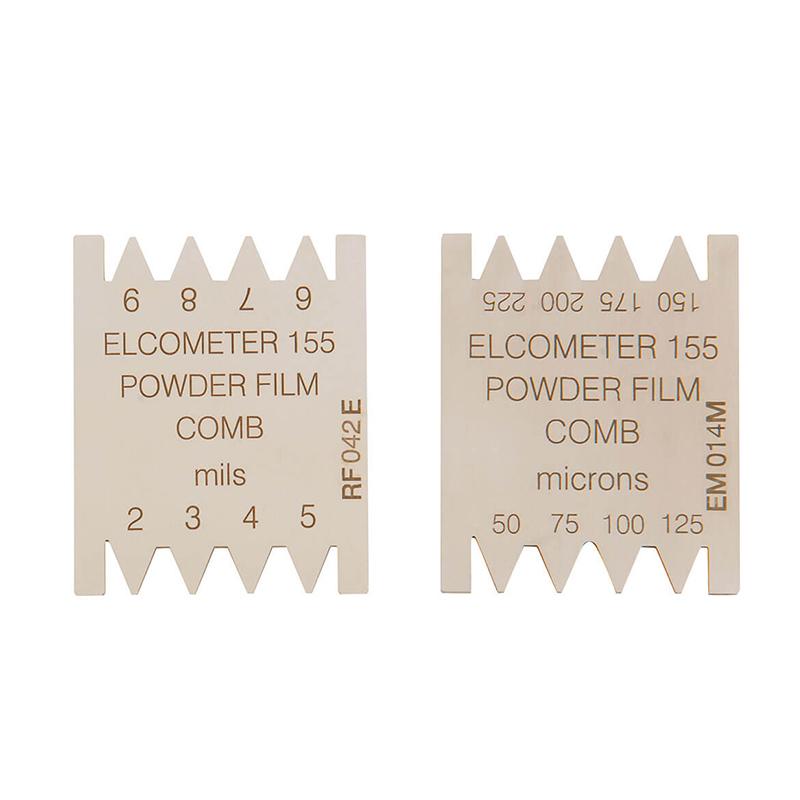

Elcometer 155 B15513573-10 Uncured Powder coating Wet Film Comb Set (2pcs) Picture

Introduction

Elcometer 155 Uncured Powder Coated Wet Film Combs are available in 4 measuring ranges for measuring the thickness of uncured powder coated wet films. This allows for preparation before the coating cures, reducing the amount of scrap and excess jet.

Insert the wet film comb into the powder coating and slide it along the surface. The measuring point (tooth) is pointed, allowing the powder to flow around the tooth.

The thickness of the powder is between the highest value in the drag mark and the lowest value in the absence of the drag mark.

Note: The thickness of the coating before curing is not the same as the value after curing, but there is a correlation. The powder film comb is suitable for reference only.

Pictures

Elcometer 155 Uncured Powder Coated Wet Film Comb B15513573-10 Illustration of the UK

FAQ
QI want to do a test about the ISO2808 standard. Is this uncured powder coating wet-film comb okay?
A Sure
QExcuse me, is there two pieces of this wet film comb?
A Hello, yes, there are two different film thicknesses of 50~ 225μm and 225~ 1250μm.
