QFH Cross Hatch Cutter 1/2/3 mm Tooth QFH Cross Hatch Cutter 11 Tooth

SE
QFH comes standard with 1mm/2mm/3mm cutter heads, which comply with ISO2409-1974 standards and are suitable for organic coating coating testing.
$178.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con
Similar products

JingKeLian QFH 11 teeth Cross-cut adhesion TesterSPEC

JingKeLian QFH 11 teeth Cross-cut adhesion TesterDetails

JingKeLian QFH 11 teeth Cross-cut adhesion TesterPacking list

SKU
NB012521
Number of teeth
11 teeth
Tooth spacing
1mm、2mm、3mm
application standard
ISO2409-1974
material
aluminum
principle
A lattice pattern is cut and penetrated on the coating using a tool of a specific specification, and then a six-level classification evaluation is carried out according to the degree of separation between the coating and the substrate after cutting.
function
The adhesion of the coating is evaluated by cutting and penetrating the lattice pattern of the coating and then evaluating the resistance of the coating to separate from the substrate.
QFH 11 teeth
Cross-cut adhesion Tester
QFH comes standard with 1mm/2mm/3mm cutter heads, which comply with ISO2409-1974 standards and are suitable for organic coating coating testing.

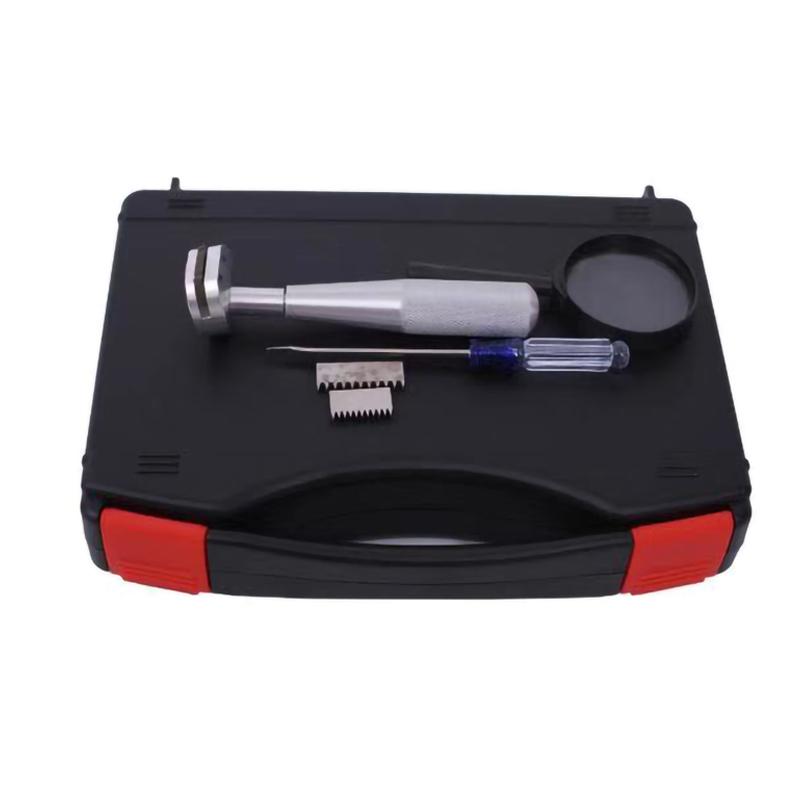

QFH Cross Hatch Cutter 1/2/3 mm Tooth QFH Cross Hatch Cutter 11 Tooth Picture

overview

JinKeLian QFH paint film crosshatcher is a special paint film crosshatcher used for coating adhesion test in the organic coating industry, which complies with ISO2409-1974 standard. In order to be suitable for different coating thickness tests, the QFH paint film scratcher provides three kinds of multi-blade cutting knives with spacing of 1mm, 2mm and 3mm, among which the multi-blade cutting knife with 1mm spacing is suitable for the test of coating thickness The multi-blade cutting knife with 2mm spacing is suitable for test pieces with coating film thickness <60~120um, and the multi-blade cutting knife with 3mm spacing is designed for special purposes.

Application

QFH paint film scratcher is suitable for testing the adhesion of organic coatings in laboratories or various construction sites.

FAQ
QIs adhesion testing for coatings on thin film substrates applicable?
A This one can't be tested.
QTest the coating and aluminum layer adhesion on the composite paper. Paper thickness is about 300um. Which one is suitable for use?
A Use this QFH cross-cut adhesion machine
QIs the spacing between the knife teeth of the three blades of the matching knife head the same?
A Hello, the ones are different, 1mm, 2mm, 3mm respectively.
QDoes this Cross Hatch Cutter meet the 2409 standard?
A Satisfy.
QHello, do you have a 3mm11-tooth Baige knife?
A Hello, yes, this is Jingke QFH.
QDetermination of water-based interior-wall Coating adhesion, is this cross-cutting knife suitable?
A This model is suitable for the determination of water-based inner and outer wall Coating adhesion in architectural coatings. The cross-cut test is mainly carried out with knives, and the firmness of the Coating to the substrate is judged according to the number of squares of the film peeling. Use a sharp blade and a scale steel ruler to cut 11 cuts with a distance of 1mm in the vertical and horizontal directions of the test plate, and the vertical and horizontal cuts intersect into 100 squares. So it is applicable.
QHello, do the three specifications of the blade contain 6 teeth and 11 teeth?
A Hello, customers of this scratching knife can only choose one of 6 teeth or 11 teeth. Thank you for your consultation.
QDo you have the cross-cut adhesion tester required by the ISO 2409 standard?
A This QFH 11-tooth cross-cut adhesion tester will do.
