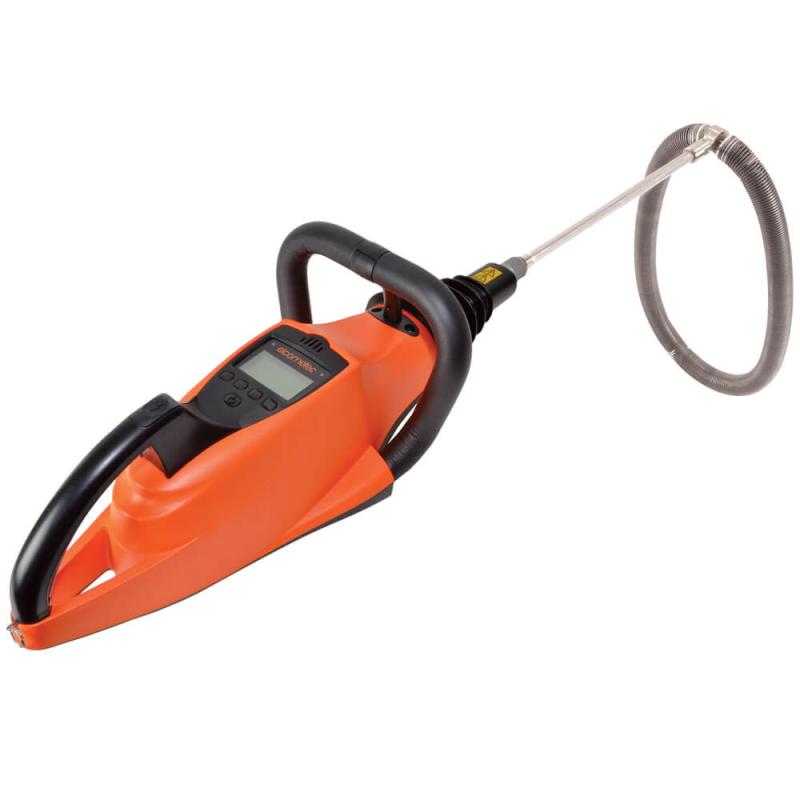

Elcometer 280 D280-T-KIT Pulse DC Holiday Detector Kit

D280-T-KIT

Pulse DC Holiday Detector Kit

Introduction

The Elcometer 280 is a 'handle type' EDM Detector designed to make pulsed DC high Voltage EDM testing safer, more convenient and more reliable than ever before.

The Elcometer 280 utilises specialist electronics to inspect coatings without the need to connect ground wires to the component substrate – ideal for inspecting large surfaces and pipes.

The Elcometer 280 utilises high Voltage pulsed DC technology to inspect coating porosity – even if the coating is wet, dirty or slightly conductive.

The Elcometer 280 sets the standard for the safety of high Voltage detection – a two-stage safety switch, a bright LED display and on-screen icon display when high Voltage start-up, and an extended coil thread to protect the user from sparks.

A variety of probe accessories can be used to inspect the porosity/pinhole of coatings up to 25 mm thick.

Rugged, shockproof and waterproof design, even in harsh environments.

Features

• When a hole is detected, the display will flash, the LED indicator will be on, the alarm will sound, and the volume will be adjustable.

• 0.5-35kV range (user selectable) to inspect coating porosity up to 25mm (1") thick

• The safety switch in the handle cuts off the power supply as soon as it is released

• The rugged, shockproof and waterproof design ensures a long service life – even in harsh environments

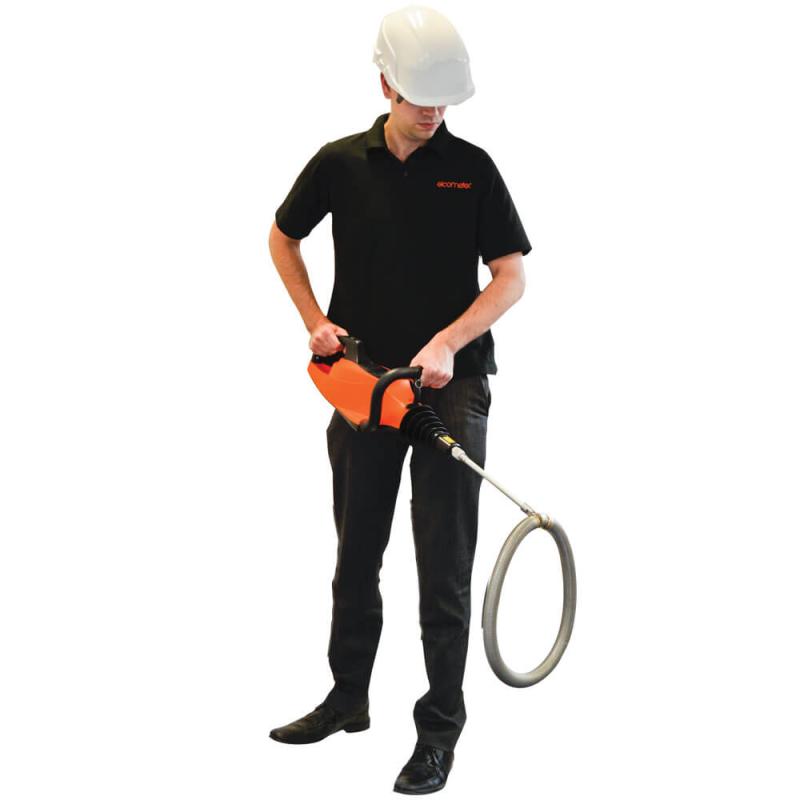

• The balanced design is ergonomic and comes with a shoulder strap that lasts for a long time

• A wide range of interchangeable probe accessories are available – compatible with all Elcometer models of Elcometer Flash Leak Detectors

• Ideal for inspecting clean, wet, dirty, or slightly conductive coatings

• Based on the coating thickness value, the Voltage calculator automatically sets the correct Voltage (Advanced only)

• The internal Voltage verification device ensures that the selected Voltage is the test Voltage

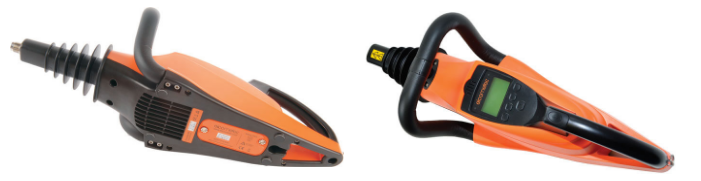

Structural advantages

☆ Glue hanging auxiliary handle:This allows for better control and balance during the inspection process.

☆ Large waterproof keys：It's easy to use – it doesn't hurt to wear gloves.

☆ High Voltage on/off：Separate buttons minimise the risk of accidental start-up.

☆ Clear backlit LCD display：Even in the dark, all relevant information is displayed.

☆ Shoulder strap holes：Quickly clip on the shoulder strap.

☆ Special extended coil threads：Designed to meet EN61010 standards, the threads provide additional protection for user use.

☆ Integrated safety trigger switch：If released, turn off the high Voltage.

☆ Ground feedback wire socket：1/4 circle lock/unlock function to ensure that it does not fall off during use.

☆ Easy to remove the battery pack：Fully charged in 4 hours, it can last up to more than 30 hours.

Meets standards

AS 3894.1、ANSI/AWWA C203、ANSI/AWWA C214、ASTM D4787、ASTM D5162、ISO 2746、ISO 29601、JIS G 3491、JIS G 3492、NACE RP0274、NACE SP0188、NACE SP0490、NACE TM0186、NACE TM0384.

Pictures

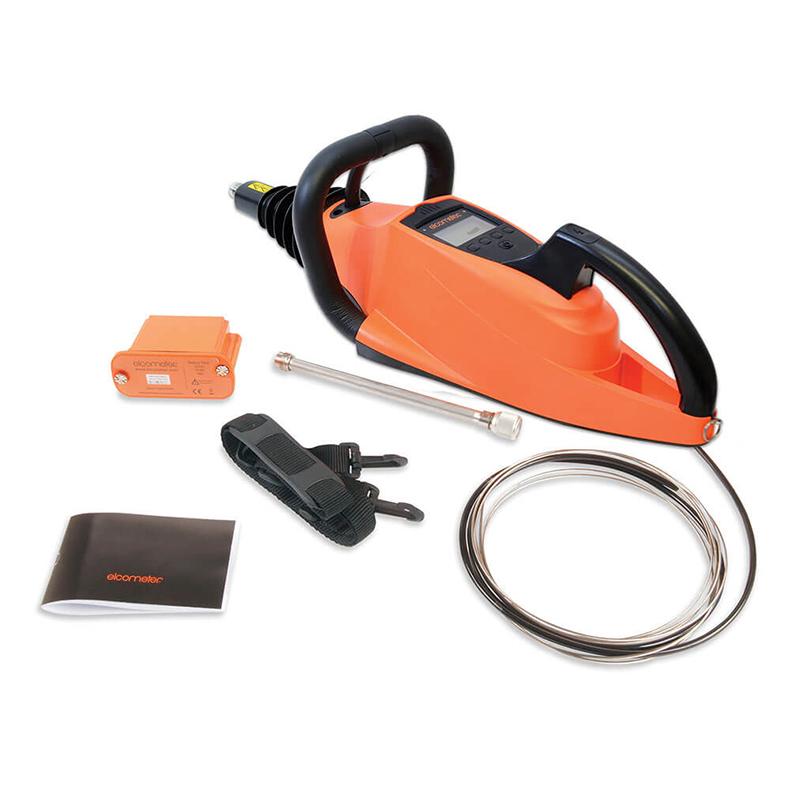

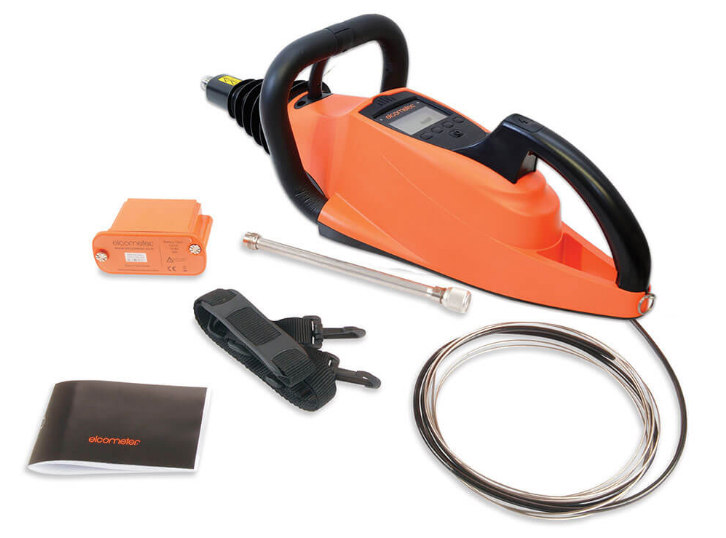

Packing list：ELCOMETER 280 Pulse DC Holiday Detector Detection Kit Host x1, 5m (16 ') Signal Feedback Cable x1, Battery Pack x2, Battery Charger x1 Belt (UK, Europe, US and Australia Plugs), Stainless Steel Rolling Spring Holder x1, 250mm Probe Extension Shaft x1, Shoulder Strap x1, Operation Manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
