Elcometer 270 D270----4 Holiday Detector Voltage 9V/67.5V/90V

SE
Elcometer 270 Holiday Detector D270----4 does not have a calibrate certificate, supports 9V, 67.5V and 90V three Voltages, Elcometer 270/4 Holiday Detector can use NiMH rechargeable batteries, setting Accuracy to +/- 5%.
Model：
Contact
Details SPEC VIDEO CAT
Similar products

Elcometer D270----4 Holiday DetectorSPEC

Elcometer D270----4 Holiday DetectorDetails

Elcometer D270----4 Holiday DetectorPacking list

SKU
NB012526
detection Voltage
9V/67.5V/90V
Thickness range
0~500µm
Sensitivity
9V: 90kΩ ±5%；67.5V: 125kΩ ±5%；90V: 400kΩ ±5%
Operating Time
9V: up to 200 hours; 67.5V: up to 100 hours; 90V: up to 80 hours
Power Supply
3 x AA (LR1600) 1.5V alkaline batteries; (NiMH rechargeable batteries can also be used, battery life will be reduced by up to 75%)
Set Accuracy
±5%
Host size
210 * 42 * 37Mm (without rod)
Weight
610G (21oz) with rod body, wire and battery
Standard wire size
175Mm (6.9 ") long (with sponge)
Flat sponge size
约 150 x 60 x 25mm
meet the standard
AS 3894.2, ASTM D 5162-A, ASTM G6, ASTM G62-A, BS 7793-2, ISO 8289-A, ISO 14654, JIS K 6766, NACE RP 0188, NACE SP 0188, NACE TM0384
Calibrated Certificate
without
D270----4
Holiday Detector
Elcometer 270 D270----4 Holiday Detector Voltage 9V/67.5V/90V Picture

Introduction

The Elcometer 270 Series utilises wet sponge technology and has been designed to set a new standard in wet sponge Detectors – high quality, low Voltage with accessories similar to those of high Voltage spark Detectors.

  • The instrument is supplied ready and ready for use

  • Automatic sensitivity calibration and Voltage check

  • Low power indication

  • Visual alarm and audible alarm

  • Stick integration and splitting function

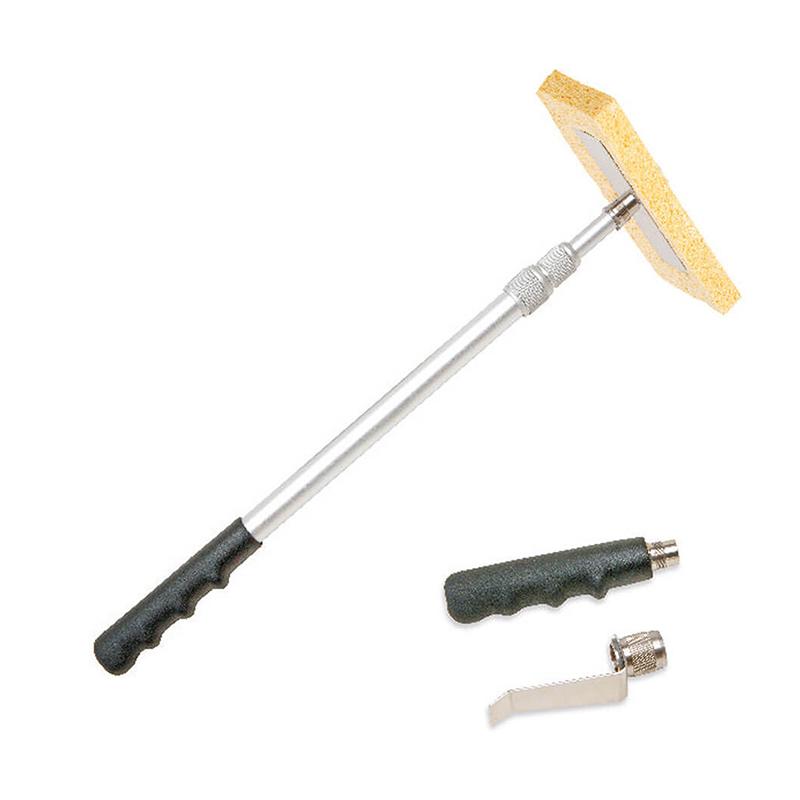

  • Includes a variety of rod attachments and is interchangeable

  • Three models – single, dual, or triple-Voltage

  • Easy to disassemble anti-wear cable

  • Large standard sponge

  • § The test kit is available as an accessory to meet all the needs of the user

Meets standards

Elcometer 270 Pinhole Tester complies with AS 3894.2, ASTM D 5162-A, ASTM G6, ASTM G62-A, BS 7793-2, ISO 8289-A, ISO 14654, JIS K 6766, NACE RP 0188, NACE SP 0188, NACE TM0384.

Pictures

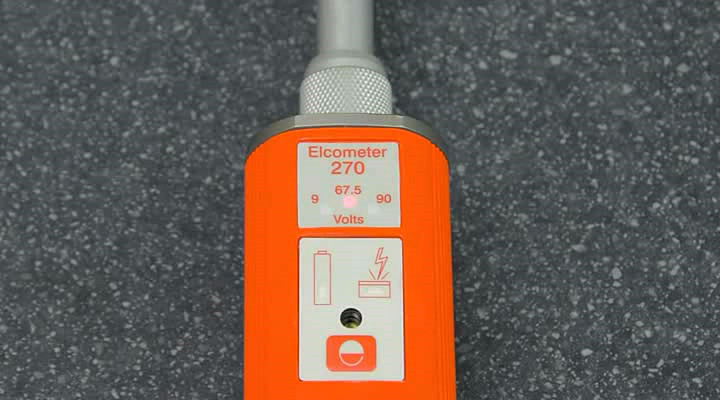

Elcometer 270 Pinhole Tester D270----4 Diagram A

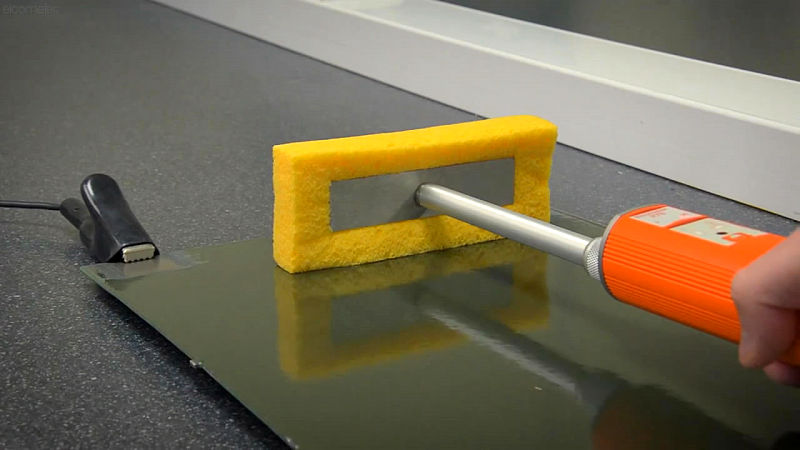

Elcometer 270 Pinhole Tester D270----4 shown in Figure B

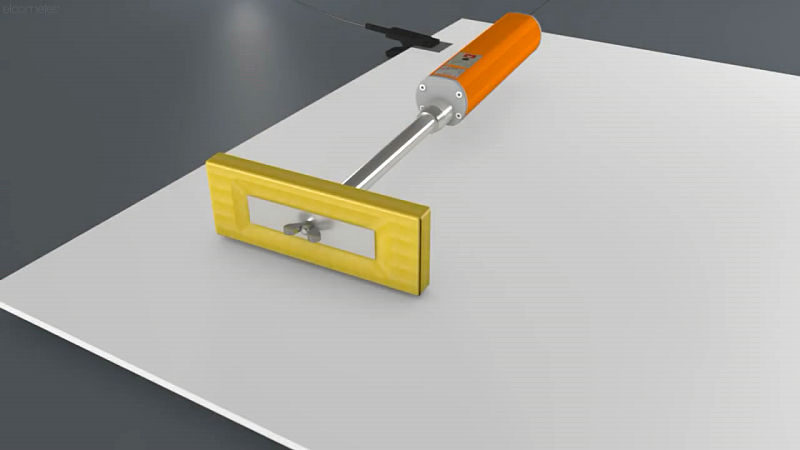

Elcometer 270 Pinhole Tester D270----4 shown in Figure C

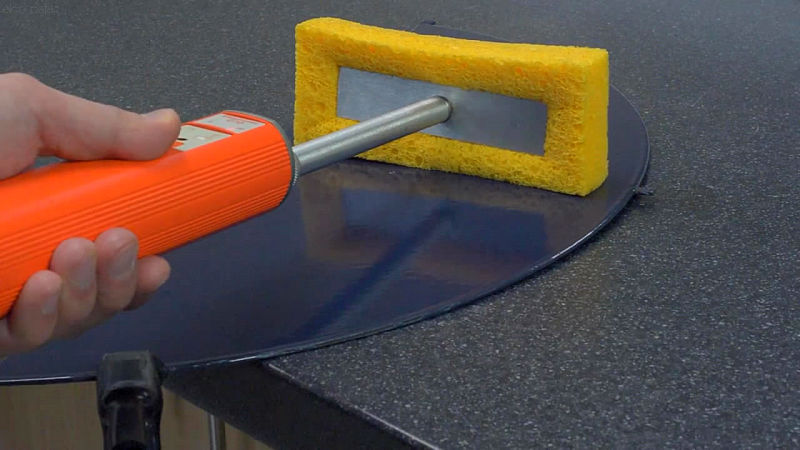

Elcometer 270 Pinhole Tester D270----4 shown in Figure D
