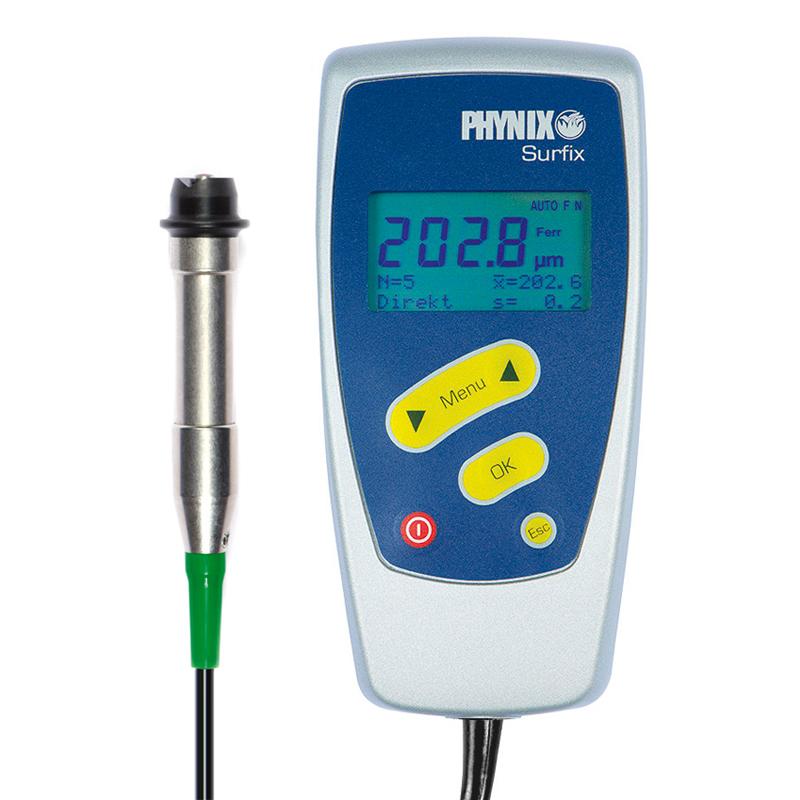

Germany PHYNIX Sur fix ® E - FN dual-use Statistical Film thickness meter
PHYNIX Surfix ® E - FN dual-use statistical film thickness meter with FN1.5 external fixed probe, Measurement range 1~ 1500μm, Surfix FN Film thickness meter Measurement accuracy +/- 1% resolution 0.1μm. With infrared interface, Protection level IP52.
Model：
Surfix®E-FN
PHYNIX
Similar products
PHYNIX Surfix®E-FN Dual-use Statistical Film thickness meterSPEC
PHYNIX Surfix®E-FN Dual-use Statistical Film thickness meterDetails

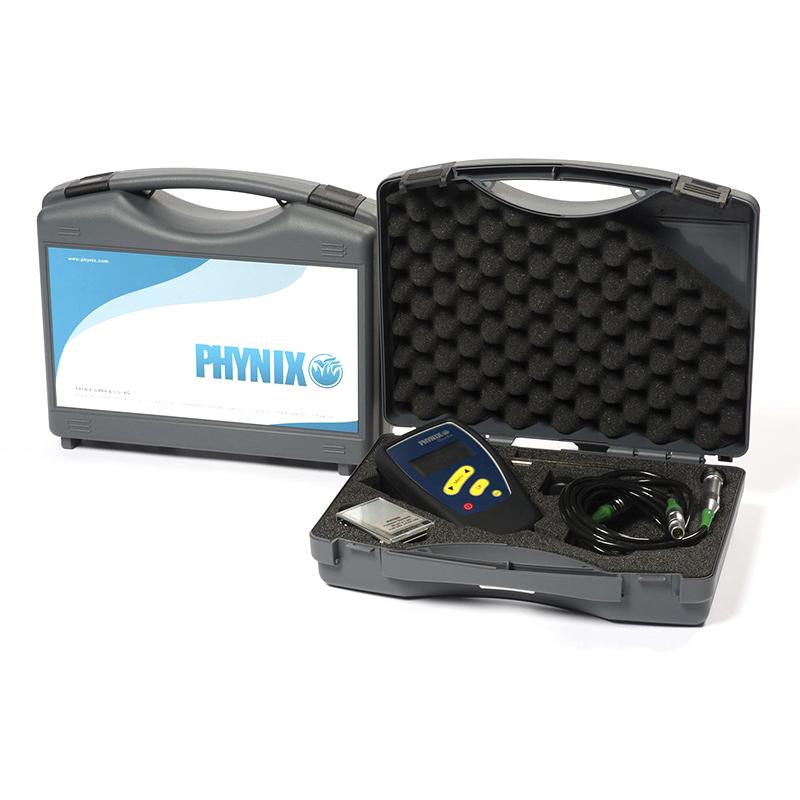

PHYNIX Surfix®E-FN Dual-use Statistical Film thickness meterPacking list
- SKU
- NB012544
- Measurement principle
- Magnetic Induction + eddy Current
- Measurement range
- 0~1500μm
- margin of error
- ±1%
- resolution
- 0.1μm
- Minimum measurement surface
- 5*5mm
- Minimum radius of curvature
- Convex 1.5mm; Concave 5mm
- thinnest substrate
- 0.2mm(F)；50μm(N)
- probe
- Line probe
- Probe size
- Φ14*83mm
- Calibrated mode
- Factory calibrated, zero calibrated and film calibrated
- statistical function
- Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
- icon function
- none
- Interface
- Infrared
- Data storage
- 2 × 100 Measured values
- Standards
- DIN，ISO，ASTM，BS
- Display screen
- Backlit, 4-digit alphanumeric, height 10mm (0.4 inches)
- Operating temperature
- 0~60℃
- Protection level
- IP52
- Weight
- 205G (including probe and battery)
- Dimension
- 137*66*23mm
- Probe contact temperature
- -15~60℃
Surfix®E-FN
Dual-use Statistical Film thickness meter
Surfix® E Family series Surfix FN is a dual-purpose statistical precision coating thickness meter, with FN1.5 external fixed probe, the measurement range is 1~1500μm, which meets the measurement of most coating layers, with a measurement accuracy of ± (1μm+1% of the measured value) and a resolution of 0.1μm. With infrared interface for convenient data transmission, the host protection level is IP52.
Application
electroplate
paint
Automotive industry
chemical industry
Aerospace
shipbuilding
Tire manufacturing industry
Specifications
| Principle | Magnetic induction + eddy current |
| Measuring range | 0~1500μm |
| precision | ± (1 μm + 1% m) |
| resolution | 0.1 μm or < 0.2% of the measured value |
| display | Backlit, 4 alphanumeric, height 10 mm (0.4 inches) |
| Calibration method | Factory calibration, zero point calibration, thin film calibration Drift function: plus or minus a constant value |
| statistics | Number of measurements, average, standard deviation, minimum, maximum |
| Data storage | 2*100 measurements |
| interface | Infrared/wire |
| Operating temperature | 0℃~60℃ |
| Surface temperature | -15℃~60℃ |
| Specifications | 137mm*66mm*23mm |
| Probe specifications | ∅14mm*83mm |
| weight | 205g with probe and battery |
| Ingress protection | IP 52 (dust and dripping resistant) |
| standard | DIN, ISO, ASTM, BS |
Limit values
| The convex surface has the smallest radius of curvature | 1.5mm |
| The concave surface has the smallest radius of curvature | 5mm |
| Minimum operating height | 115mm |
| Smallest measuring area | 5×5mm |
| Minimum substrate thickness - F | 0.2mm |
| Minimum substrate thickness - N | 50μm |
FAQ
QCan both iron base and aluminum base be measured? Is it automatically identified? We do home appliances.
A
Sure.
