Specifications
| Measurement principle | eddy Current |
| Measurement range | 0~1500μm |
| margin of error | ±1% |
| resolution | 0.1μm |
| Minimum measurement surface | 5*5mm |
| Minimum radius of curvature | Convex 1.5mm; Concave 5mm |
| thinnest substrate | 50μm |
| probe | Line probe |
| Probe size | Φ14*83mm |
| Calibrated mode | Factory calibrated, zero calibrated and film calibrated |
| statistical function | Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation |
| icon function | none |
| Interface | Infrared |
| Data storage | 2 × 100 Measured values |
| Standards | DIN，ISO，ASTM，BS |
| Display screen | Backlit, 4-digit alphanumeric, height 10mm (0.4 inches) |
| Operating temperature | 0~60℃ |
| Protection level | IP52 |
| Weight | 205G (including probe and battery) |
| Dimension | 137*66*23mm |
| Probe contact temperature | -15~60℃ |
Packing list

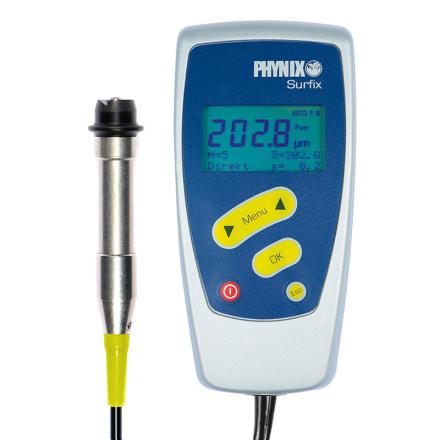

Surfix N thickness gauge, protective case, calibration shim, suitcase, AAA battery, data transfer software, manufacturer's certificate, instruction manual.
After-sales instructions
Warranty days: 730 days
