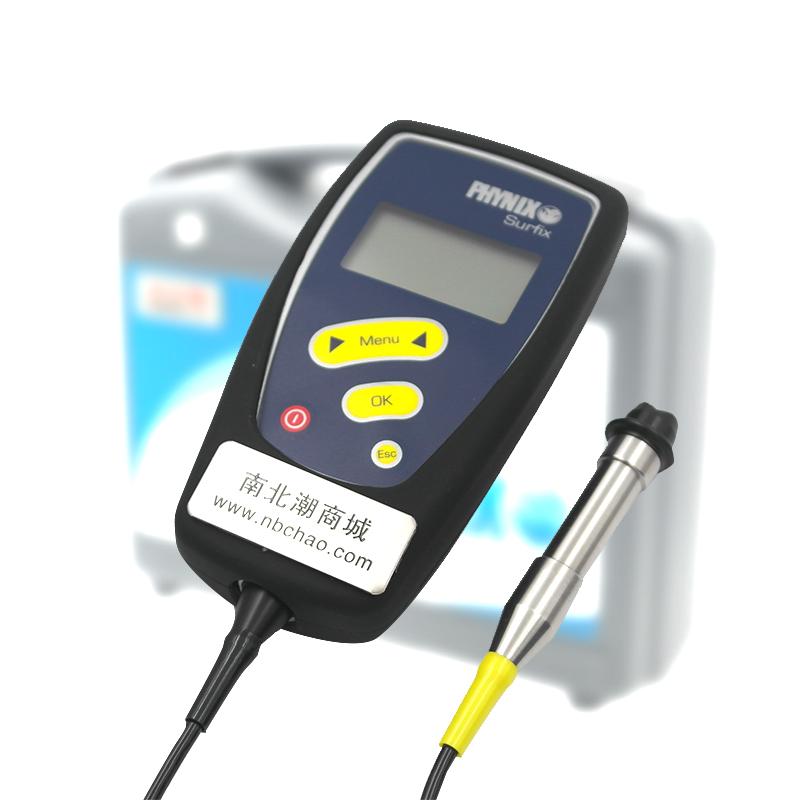

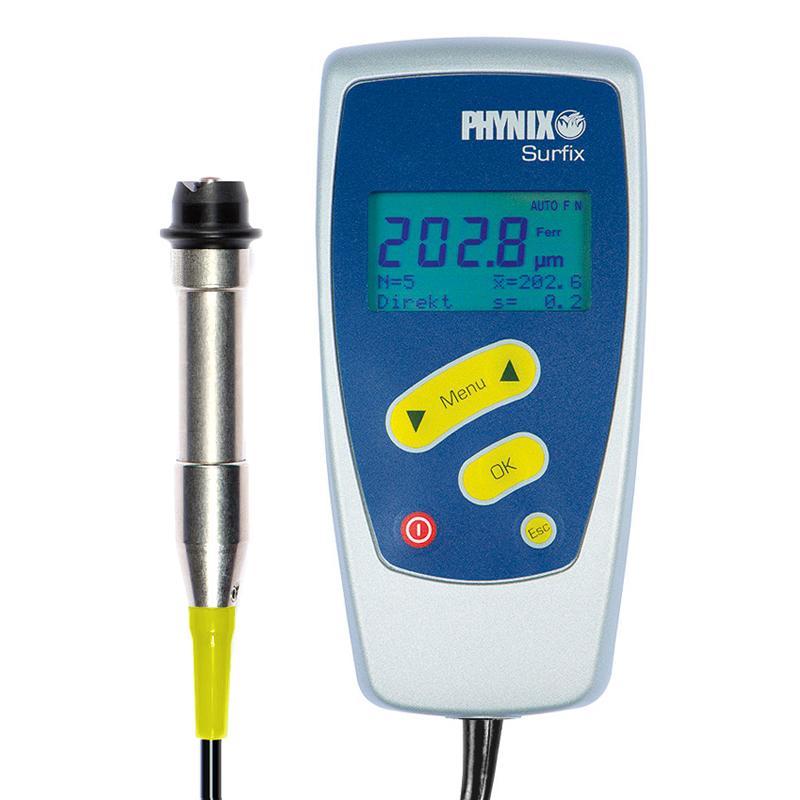

Germany PHYNIX Sur fix ® E - N basic non-ferrous statistical film thickness meter
PHYNIX Surfix ® E-N basic Non-ferrous statistical film thickness meter is the basic model of Surfix N, also with N1.5 external fixed probe, the difference is that it cannot save data, no statistical function, limit value, zero drift, no interface and screen backlight function.
Model：
Surfix® E-N basic
PHYNIX
Similar products
PHYNIX Surfix® E-N basic Film thickness meterSPEC
PHYNIX Surfix® E-N basic Film thickness meterDetails
PHYNIX Surfix® E-N basic Film thickness meterPacking list
- SKU
- NB012549
- Measurement principle
- magnetic Induction
- Measurement range
- 0~1500μm
- margin of error
- ±1%
- resolution
- 0.1μm
- probe
- Line probe
- Probe size
- Φ14*83mm
- Calibrated mode
- Factory calibrated, zero calibrated and film calibrated
- statistical function
- none
- icon function
- none
- Interface
- none
- Data storage
- none
- Standards
- DIN，ISO，ASTM，BS
- Display screen
- 4 alphanumeric characters, height 10 mm (0.4 in)
- Operating temperature
- 0~60℃
- Protection level
- IP52
- Weight
- 205G (including probe and battery)
- Dimension
- 137*66*23mm
- Probe contact temperature
- -15~60℃
Surfix® E-N basic
Film thickness meter
The PHYNIX Surfix®E-N basic is the basic model of the Surfix N, which is also equipped with the N1.5 external fixed probe, with the difference that it does not save data, has no statistical function, limit values, zero drift, no interface and screen backlight function.
Application
electroplate
paint
Automotive industry
chemical industry
Aerospace
shipbuilding
Tire manufacturing industry
Specifications
| Principle | Eddy current |
| Measuring range | 0~1500μm |
| precision | ± (1 μm + 1% m) |
| resolution | 0.1 μm or < 0.2% of the measured value |
| display | No backlight, 4 alphanumeric, height 10 mm (0.4 inches) |
| Calibration method | Factory calibration, zero point calibration, thin film calibration |
| statistics | not |
| Data storage | not |
| interface | not |
| Operating temperature | 0℃~60℃ |
| Surface temperature | -15℃~60℃ |
| Specifications | 137mm*66mm*23mm |
| Probe specifications | ∅14mm*83mm |
| weight | 205g with probe and battery |
| Ingress protection | IP 52 (dust and dripping resistant) |
| standard | DIN, ISO, ASTM, BS |
