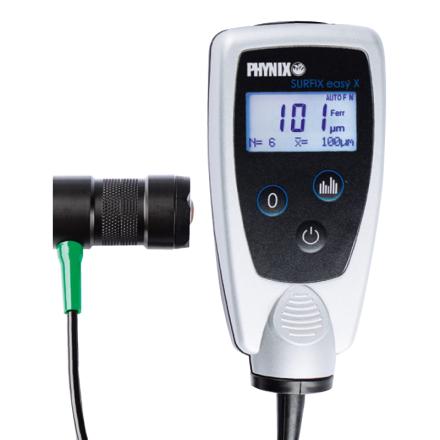

PHYNIX Surfix® easy X E-FN Easy-to-use external probe dual-use film thickness meter Specifications
Search
Brand：PHYNIX
Model：Surfix® easy X E-FN
Name：Easy-to-use external probe dual-use film thickness meter
Specifications
| Measurement principle | Magnetic Induction + eddy Current |
| Measurement range | F：0~3500μm；N：0~3000μm |
| margin of error | ±2% |
| resolution | 1μm|2μm|5μm |
| Minimum measurement surface | 10*10mm |
| Minimum radius of curvature | Convex 5mm; Concave 50mm |
| thinnest substrate | 0.5mm(F)；50μm(N) |
| probe | External probe |
| Probe size | Φ24*45mm |
| Calibrated Certificate | Manufacturer Certificate |
| Calibrated mode | Factory calibrated, zero calibrated |
| Unit display | µm/mils |
| statistical function | MAX Maximum, MIN Minimum, Average, Standard deviation |
| Power Supply | AAA battery × 2 |
| Standards | DIN，ISO，ASTM，BS |
| Display screen | Backlight, 4 alphanumeric, height 8mm |
| Operating temperature | 0℃~50℃ |
| Protection level | IP52 |
| Weight | 140G with battery |
| Dimension | 110*50*25mm |
| Probe contact temperature | -15~60℃ |
Packing list
Film thickness meter with probe, rubber protective cover, calibration shim, AAA battery, operation manual, manufacturer's certificate
After-sales instructions
Warranty days: 730 days
