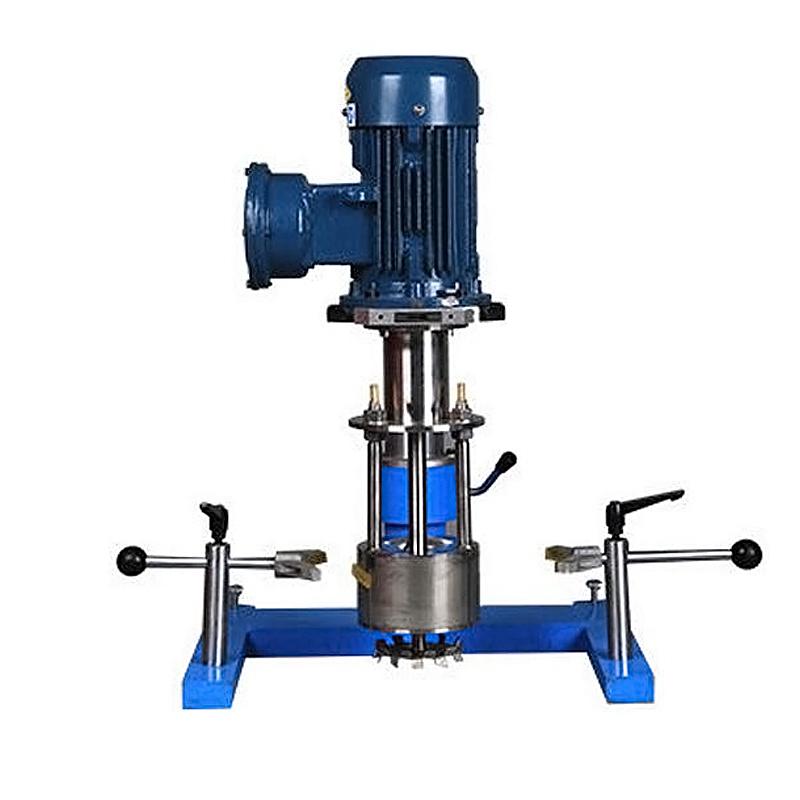

MODERNER LSM-2.2B basket sand mill, frequency conversion explosion-proof 20L
SEMODERNER LSM-2.2B basket sand mill is a frequency conversion explosion-proof type, which is a manual lift sand grinding basket Grinder. LSM-2.2B basket sand mill is suitable for use in the field of Coating inks paints.
Price: Please contact customer service
Model：
LSM-2.2B
Moderner LSM-2.2B Basket sand millSPEC
Moderner LSM-2.2B Basket sand millDetails
Moderner LSM-2.2B Basket sand millPacking list
- SKU
- NB001258
- Motor power
- 2.2kw
- Speed regulation range
- 0~4000rpm
- Lifting stroke
- 420mm
- Lifting method
- manual
- Overall Dimensions
- 600*550*850mm
- Weight
- 85kg
- Grinding medium particle size
- F1.8 ~ 2mm
- Sand disc diameter
- F90mm
- Dispersion disk diameter
- F120mm
- Barrel Volume
- 20L
- Power
- 380V 50/60Hz
LSM-2.2B
Basket sand mill
Basket sand mill is used for rapid dispersion of coatings, paints, inks and other chemical laboratories. Both the sanding basket and barrel have cooling interlayers, which is beneficial to control the grinding temperature and prevent overheating.
Models
| model | LSM-2.2D | LSM-2.2B | LSM-370 | LSM-550 | LSM-750 |
| motor | BLDC | AC explosion-proof | BLDC | BLDC | AC frequency conversion |
| power | 2.2Kw | 2.2Kw | 550W | 550W | 750W |
| Spindle speed | 50~4000rpm | 0~4000rpm | 50~4000rpm | 50~4000rpm | 0~4000rpm |
| Lifting method | electric | manual | manual | manual | manual |
| Lifting stroke | 400mm | 420mm | 230mm | 230mm | 200mm |
| sanding disc | Φ95mm | Φ90mm | Φ44mm | Φ68mm | Φ68mm |
| Scatter plate | Φ120mm | Φ120mm | Φ60mm | Φ60mm | Φ80mm |
| Zirconium beads | Φ1.8~2mm | Φ1.8~2mm | Φ1.4~1.6mm | Φ1.4~1.6mm | Φ1.8~2.0mm |
| barrel | 20L | 20L | 1.25L | 2.9L | 2.9L |
FAQ
QWhat is the difference between LSM-2.2D and LSM-2.2B? Wasn't there LSM-2.2 before?
A
LSM-2.2D is an electric lift brushless DC motor, and Type B is a manual lift AC explosion-proof model. The two rotate at the same speed, and there is little difference in Miscellaneous. LSM-2.2 is the old model and has been discontinued.
QDoes this LSM-2.2B basket sand mill have a chill down function?
A
Hello, this LSM-2.2B basket sand mill has a chilled down interlayer in the sand grinding basket and barrel, which can control the ground temperature well.
