Specifications
| Measurement principle | Magnetic Induction + eddy Current |
| Measurement range | Fe；0~2000μm；NFe；0~2000μm |
| margin of error | ±2% |
| Minimum measurement surface | Should be 20mm, each with a radius of 10mm. |
| Minimum radius of curvature | Convex 5mm; Concave 30mm |
| thinnest substrate | 0.2mm(F)；0.05mm(N) |

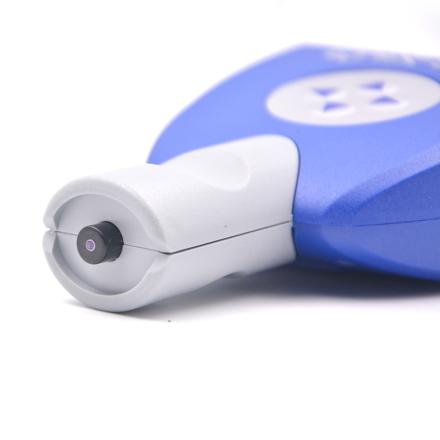

| probe | 8500 Fe/NFe2mm |
| Probe size | 60*26*22mm |
| Probe line length | buy separately |
| Probe Weight | 12g |
| Standards | DIN EN ISO 2808, DIN 50981, DIN 50984, ISO 2178, BS 5411 (3 & 11), BS 3900-C5, ASTM B 499, ISO 2360, ASTM D 1400, ASTM D 1186, ASTM D 7091 |
| Operating temperature | 0~50℃ |
Packing list
Probe X1
After-sales instructions
Warranty days: 90 days
Depending on the environment, frequency and mode of use, the service life of the probe will also be different.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/12681/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
