CHNSPEC CS-3000S Desktop small hole Glossmeter 2mm caliber

CS-3000S

Desktop small hole Glossmeter

2Mm very small aperture Gloss measurement; Gloss measurement for curved surfaces and ultra-small objects; 5-inch high-resolution large color screen display measurement data;

CS-3000S is a machine designed to measure complex surface conditions and samples of various sizes in the packaging, metal treatment, automotive and plastic industries, which cannot be measured by standard aperture gloss meters. The CS-3000S is especially suitable for measuring the gloss of a very small area of the selected sample at an incident angle of 60°, with a minimum measurement area of 2x 3mm. CS-3000S is widely used in: paint coatings, decoration materials, building materials, plastic materials, bamboo and wood products, ceramic products, leather products, film paper, printing ink, automobile maintenance, molding molds and many other fields of materials and product surface gloss Measurement.

Standards

CS-3000S complies with the following test standards: ISO2813 standard, ISO7668 standard, ASTM D523 standard D2457 standard, GB/T 9754 standard, GB/T13891, GB/T7706 standard, GB/T8807 standard;  CS-3000S has a very small The measurement area can meet the sample measurement of any curved surface

Instrument characteristics

1. Very small aperture measurement

There are only unexpected shapes, but no unpredictable luster. 2*3mm measuring aperture, suitable for curved surface, irregular object, flat specular gloss measurement

2. The repeatability reaches the international professional level

The optimized design of the light source ensures the stability of the gloss data from the very beginning of the measurement;

Dual optical path technology, Japanese sensor, American high-end operational amplifier chip and processor chip guarantee every gloss detection

3. The instrument has built-in different measurement modes to meet the measurement needs of different customers

The instrument has two measurement modes, simple and statistical, which are convenient for customers with different measurement needs.

Simple mode: direct display of measured gloss data

Statistical mode: Gloss comparison can be performed, and the gloss difference between the analysis and the standard sample

4. Equipped with powerful PC data management software as standard

The measurement data can be transmitted to the data management software for further analysis and printing of test reports through USB data cable and PC transmission.

5. Large power capacity - 6000mAH large-capacity rechargeable lithium battery is used

It achieves both a slim body and a large battery capacity. It can measure 50,000 times continuously, allowing you to worry about power and work without distractions.

6. Simple operation, 5-inch large color screen

Equipped with a high-resolution full-color true-color large screen, the operation interface is intuitive and clear, and it is quick to use.

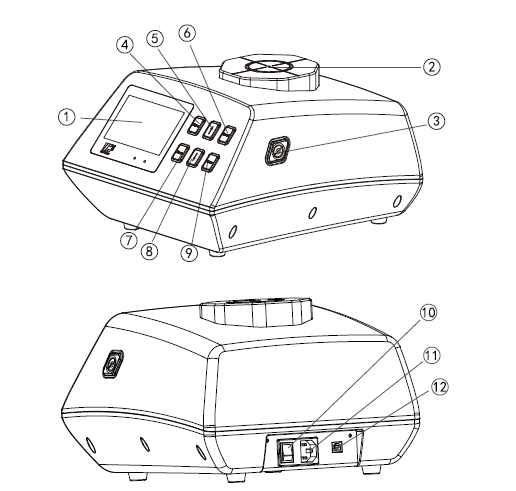

structure appearance

①Display  ②Test port  ③Test key  ④Menu menu key  ⑤Up key  ⑥Cance|Cancel/Back key

⑦Save key  ⑧Down key  ⑨Confirm key ⑩Power switch key ⑪Power interface ⑫USB data interface

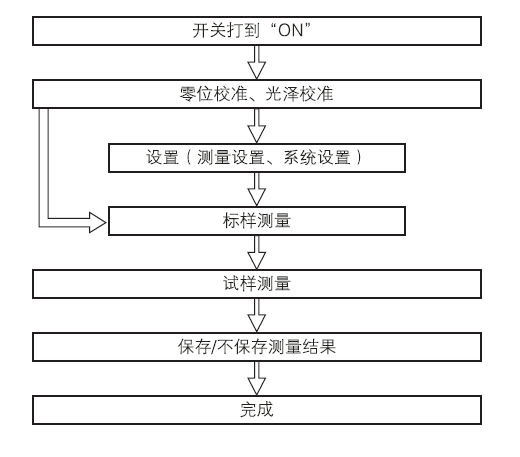

Measurement process

Application

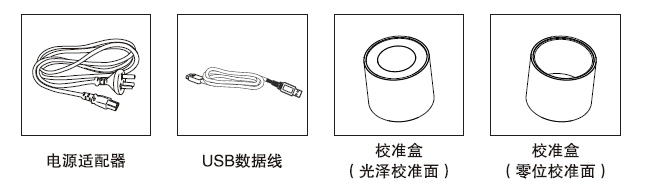

Standard accessories

Packing list：Machine X1, Measurement Certificate X1, Manual X1, Certificate X1, Warranty Card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
