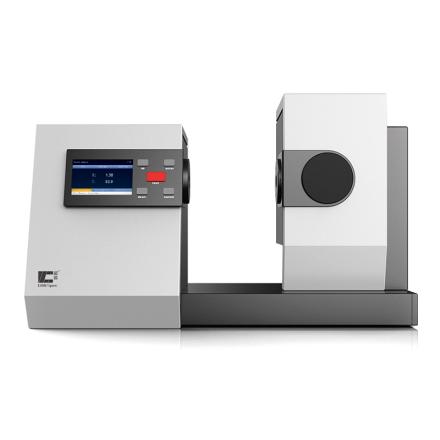

Specifications
| Light source | Haze/Transmittance: CIE-A, CIE-C, CIE-D65 Chroma Indicators: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF, U30, DLF, NBF, TL83, TL84 |
| follow the standard | ASTM D1003/D1044, ISO13468/ISO14782, JIS K 7105 and other standards |
| Measurement parameters | Haze (HAZE), Transmittance (T), Light spectrum transmittance, CIE Lab, LCh, CIE Luv, XYZ, Yxy, etc |
| Light spectrum Response | CIE Light spectrum function Y/V (λ) |
| Wavelength range | 400-700nm |
| wavelength interval | 10nm |
| optical path structure | 0/d |
| Illumination and sample aperture size | 16.5mm/21mm |
| range | 0-100% |
| Resolution | 0.01 unit |
| Repeatability | Haze < 10%, Repeatability ≤ 0.05%; Haze ≥ 10%, Repeatability ≤ 0.1%; light transmitance ≤ 0.1% |
| Sample size | Thickness ≤ 145mm |
| show | 7-Inch capacitive touchscreen |
| store data | 20,000 values |
| interface | USB port |
| Power Supply | 220V (with its own power cord) |
| Operating temperature | 0~45 ℃, Relative Humidity 80% or less (at 35 ℃), no condensation |
| Storage temperature | -25 ℃~ 55 ℃, Relative Humidity 80% or less (at 35 ℃), no water condensation |
| Standard | PC management software (Haze QC) |
| optional | Measurement fixture, haze standard sheet, 5mm/7mm/10mm diameter plate, 40 * 10 Colorimetric dish |
Packing list
Whole machine X1, PC management software (Color QC) X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 1095 days
【Warranty Terms】
1. The manufacturer of this product promises a warranty period of 3 years.
2. Freight sharing limit during the warranty period: the sender pays.
3. Damage caused by improper use by customers is not covered by the warranty.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/12695/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
