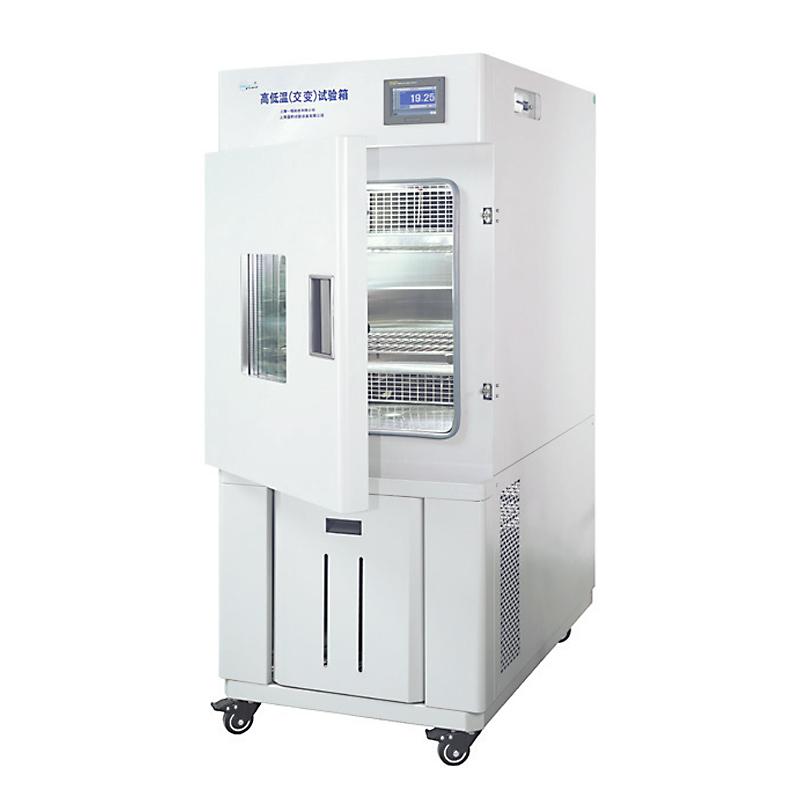

YIHENG BPHJS-060C Temperature Humidity Cyclic Chamber -60~130 ℃/5250W

BPHJS-060C

Temperature&Humidity Cycling Test Chamber

Temperature range -60~130 ℃, Temperature uniformity +/- 2 ℃, Temperature Fluctuation +/- 0.5 ℃, humidity control range 30~95% R.H, Humidity deviation +/- 3% R.H, refrigeration system original imported compressor, fluorine-free environmentally friendly refrigerant, Power supply Voltage AC220V 50Hz, Interior size 400 * 380 * 450mm, Dimension 650 * 1040 * 1650mm, shelf (std.) 2pcs, Power 5250W.

A new generation of high-low temperature (alternating) ; sensible heat Test Chambers, based on the company's many years of successful experience in chamber design, based on the concept of humanized design, starting from the actual needs of customers, trying to meet customer requirements in every detail, for Customers are provided with high-quality products.

Features

humanized design

• The new fluorine-free design keeps you ahead of healthy life.

• It adopts wet and dry bulb type or electric kiln type multi-functional multi-segment programmable temperature and humidity controller, fuzzy PID controller, accurate temperature and humidity control with small fluctuations.

• The imported temperature and humidity controller has a long service life, high-precision CFL 20 words × 6 lines LCD display, keyboard input, and easy operation.

• There is a test hole with a diameter of 25mm or 50mm on the left side of the box, which is convenient for experimental operation and temperature measurement.

• The built-in sink pulls out to refill for easy access.

Quality Assurance

• International brand compressors and circulating fans make the temperature distribution even. The environmentally friendly refrigerant (R134a) has high efficiency and low energy consumption, which promotes energy saving.

• The unique air duct circulation system ensures uniform humidity in the working room temperature.

• Imported 304 mirror stainless steel liner is adopted, the four corners are semi-circular, and the shelf bracket can be freely loaded and unloaded, which is convenient for cleaning inside the box.

• Multi-segment programmable control can simplify the complex test process and truly realize automatic control and operation.

security function

• Independent temperature limit alarm system, the operation will be automatically interrupted if the temperature exceeds the limit, and the audible and visual alarm will remind the operator. Ensure the safe operation of the experiment without accidents.

• High temperature, low temperature and over temperature alarm.

• Compressor overheat, overcurrent, overload protection, fan overheat protection, water shortage protection, etc.

 Convenient data processing (optional)

It can be connected to a printer or 485 communication interface, and has a USB data transfer interface (SD disk), which can be displayed on a computer and print temperature, humidity and time curves, providing a strong guarantee for data storage and playback during the inspection process.

Programmable touch screen controller (standard configuration of BPHJS series)

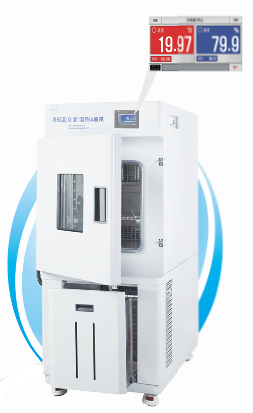

• It adopts color LCD touch control screen and menu-style operation interface, which is intuitive to observe and easy to operate.

• The operation interface in Chinese and English can be chosen arbitrarily: the screen can display the real-time temperature and humidity operation curve.

• 100 groups of programs with 1000 steps and 999 cycles can be preset, and the maximum value of each time setting is 99 hours and 59 minutes

• It has a screen lock function to avoid changing test data or shutting down due to human touch.

• With PID automatic evolution function: the temperature and humidity change components can be corrected immediately, making the temperature and humidity control more accurate and stable.

• With RS-232 or RS-485 communication interface, it can design programs on the computer, monitor the test process and perform functions such as switching on and off.

• Install professional control software on the computer to monitor and control 9 devices at the same time.

• Real-time analysis and storage of data on the computer to form an Excel document or Word document for easy printing.

Packing list： host x1, instruction manual x1, certificate x1, warranty card x1, eraser x1, shelf x2, hook x8, water tray x1, gauze x1, printing paper x1, software x1, communication cable x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
