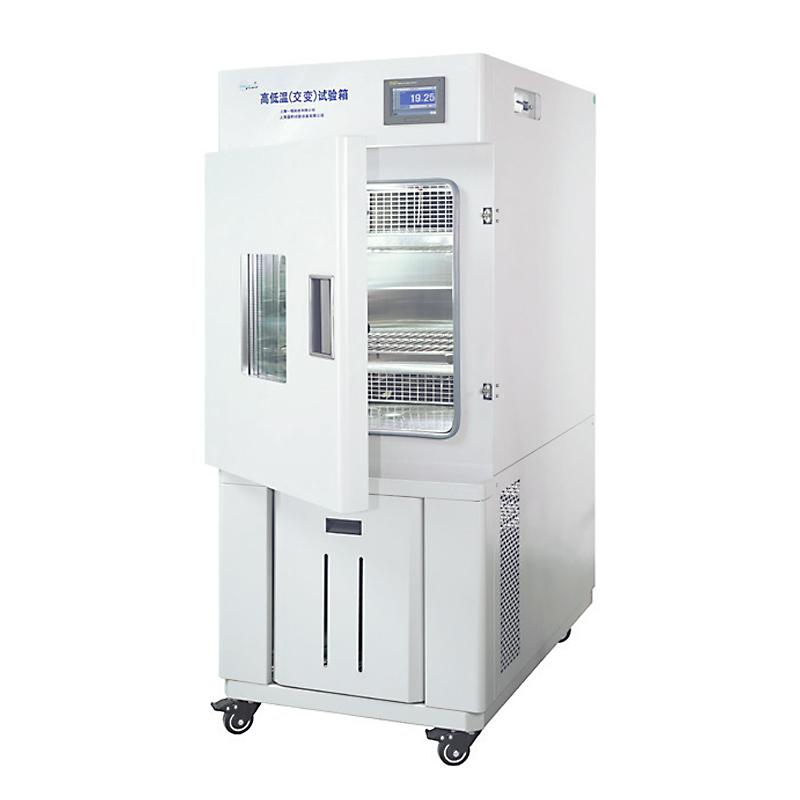

YIHENG BPHS-120B High-low temperature Damping heat testing chamber -40~130 ℃/120L

BPHS-120B

Damp heat testing chamber

Temperature range -40~130 ℃, Temperature uniformity +/- 2 ℃, Temperature Fluctuation +/- 0.5 ℃, humidity control range 30~95% R.H, Humidity deviation +/- 3% R.H, refrigeration system original imported compressor, fluorine-free environmentally friendly refrigerant, Power supply Voltage AC380V 50Hz, Interior size 500 * 400 * 600mm, Dimension 700 * 1040 * 1750mm, shelf (std.) 2pcs, display color touch screen controller, Power 7050W.

A new generation of high-low temperature (alternating) ; sensible heat Test Chambers, based on the company's many years of successful experience in chamber design, based on the concept of humanized design, starting from the actual needs of customers, trying to meet customer requirements in every detail, for Customers are provided with high-quality products.

Features

humanized design

• The new fluorine-free design keeps you ahead of healthy life.

• It adopts wet and dry bulb type or electric kiln type multi-functional multi-segment programmable temperature and humidity controller, fuzzy PID controller, accurate temperature and humidity control with small fluctuations.

• The imported temperature and humidity controller has a long service life, high-precision CFL 20 words × 6 lines LCD display, keyboard input, and easy operation.

• There is a test hole with a diameter of 25mm or 50mm on the left side of the box, which is convenient for experimental operation and temperature measurement.

• The built-in sink pulls out to refill for easy access.

Quality Assurance

• International brand compressors and circulating fans make the temperature distribution even. The environmentally friendly refrigerant (R134a) has high efficiency and low energy consumption, which promotes energy saving.

• The unique air duct circulation system ensures uniform humidity in the working room temperature.

• Imported 304 mirror stainless steel liner is adopted, the four corners are semi-circular, and the shelf bracket can be freely loaded and unloaded, which is convenient for cleaning inside the box.

• Multi-segment programmable control can simplify the complex test process and truly realize automatic control and operation.

security function

• Independent temperature limit alarm system, the operation will be automatically interrupted if the temperature exceeds the limit, and the audible and visual alarm will remind the operator. Ensure the safe operation of the experiment without accidents.

• High temperature, low temperature and over temperature alarm.

• Compressor overheat, overcurrent, overload protection, fan overheat protection, water shortage protection, etc.

 Convenient data processing (optional)

It can be connected to a printer or 485 communication interface, and has a USB data transfer interface (SD disk), which can be displayed on a computer and print temperature, humidity and time curves, providing a strong guarantee for data storage and playback during the inspection process.

Packing list： host x1, instruction manual x1, certificate x1, warranty card x1, eraser x1, shelf x2, hook x8, water tray x1, gauze x1, printing paper x1, software x1, communication cable x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
