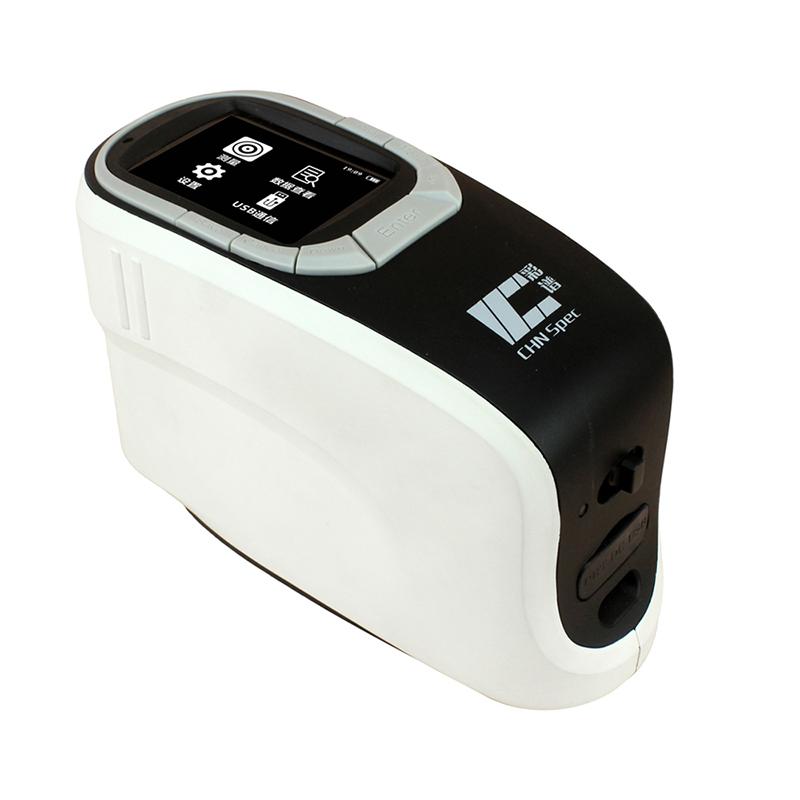

CHNSPEC CS-600CG Colorimeter 45/0 ° Traffic Road Sign Colorimeter
SE
CS-600CG
CHNSpec CS-600CG Portable 45/0 ColorimeterSPEC
CHNSpec CS-600CG Portable 45/0 ColorimeterDetails
CHNSpec CS-600CG Portable 45/0 ColorimeterPacking list
- SKU
- NB012724
- Lighting method
- 45/0 (45 ° circular illumination, 0 ° Viewing Angle)
- Sensors
- High Sensitivity Silicon Photodiode
- Available Light Sources
- LED
- Measurement caliber
- Φ11mm
- Spectroscopic reflectance Repeatability
- Standard deviation within 0.08%
- Operating language
- Chinese, English
- Interface
- USB
- Viewing Angle
- CIE 2°/10°
- Available Light Sources
- A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35
- Color difference formula
- delta E * ab, delta E * CH, delta E * uv, delta E * cmc (2:1), delta E * cmc (1:1), delta E * 94, delta E * 00, delta Eab (Hunter), 555 shade classification
- data storage
- 20,000 articles
- Power supply Voltage
- Battery
- Operating environment
- 0-45 ℃, Relative Humidity 80% or less (at 35 ℃), no condensation
- Dimensions
- 181*73*112mm
- Weight
- About 800g (without battery)
- function
- Color, 60 ° Gloss
- Wavelength range
- 400~700nm
- interval
- 10nm
- Inter-instrument Agreement
- ΔE*ab≈0.2
- Color Space
- CIE-L * a * b, L * C * h, L * u * v, XYZ, Yxy, reflectance, Hunter-lab, Munsell MI, CMYK
- Chroma indicator
- WI, YI, TI, homochromatic index MI, colour fastness, discoloration fastness, ISO luminance, A density, T density, M density, E density
- meet the standard
- CIE-15-2004；ASTM-D523；ASTM-D2244；ASTM D2457
- Gloss measurement
- 60°
- Measurement area
- 5x10 mm
- Gloss Measurement range
- 0~1000 GU
- Gloss Repeatability
- 0.2GU(0-100GU)；0.2%(100-1000GU)
- Reproducibility
- 1.0 GU(0-100GU) ；1.0%(100-1000GU)
- Light source lifetime
- 10 years 3 million times
- Display
- 2.8-Inch full-color true color screen
- Battery life
- Charging, repeability, continuous measurement 20000 times, 7.4V/6000mAh
- Repeatability of chromatic value
- Delta E * ab 0.03, MAX Maximum 0.05
1. Instrument introduction
1. The instrument adopts 45/0 structure (45° annular illumination, 0° observation angle)
The innovative ring illumination system eliminates direction dependence, enabling high accuracy and repeatability to minimize the impact of streaks by changing the sample position, tilting the sample, or rotating the instrument. Measurements on matte, textured and structured material surfaces offer significant advantages.

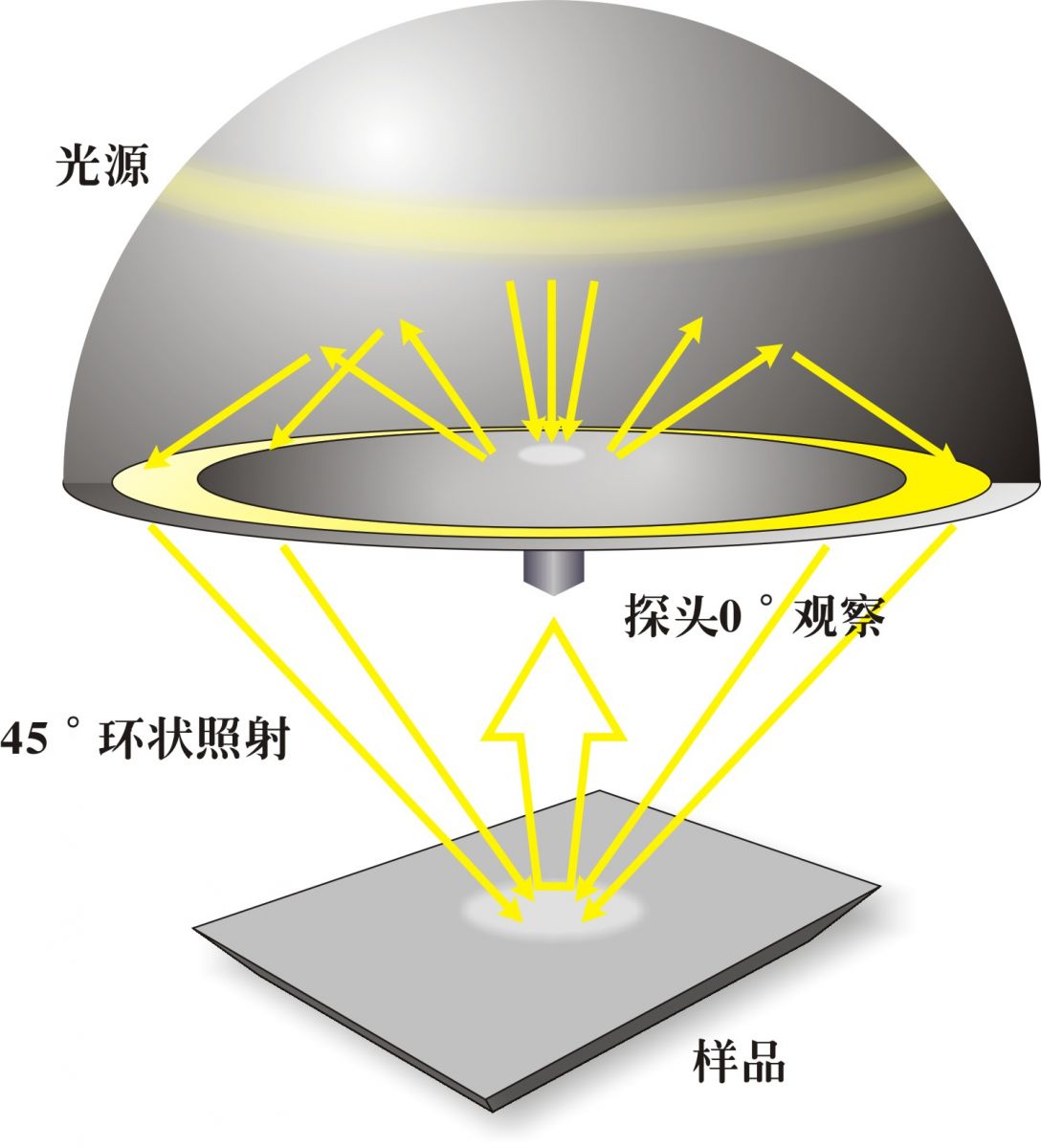

45/0 structural schematic
2. Compatible with 60° gloss measurement
The instrument has a built-in high-precision gloss measurement sensor, which realizes the simultaneous measurement of gloss and color.
3. Comply with national measurement standards
The instrument complies with all color measurement standards of CIE, ISO, ASTM, DIN and reaches the international professional level.

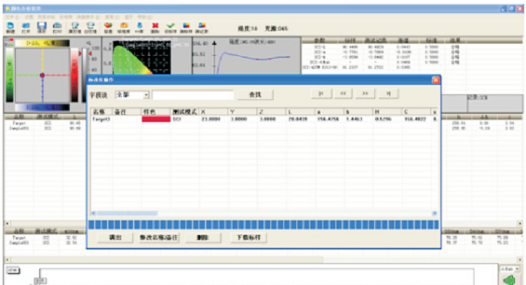

4. Standard color management software
Color management software is standard, which is suitable for quality monitoring and color data management in various industries. Digitize the user's measurement management, retain historical data, compare color gloss differences, generate test reports, provide a variety of color space measurement data, customize the customer's color management work, and realize digital measurement management.
5. National metrology verification report
Color spectrum technology has carried out verification and testing on each Spectrophotometer , and each instrument is sent to the credible verification department for metrological verification after leaving the factory, and the measurement data can be traced back to the National Institute of Metrology to ensure the credibility of the instrument test data.
6. 360-degree customer experience
Large-capacity rechargeable lithium battery
Equipped with a high-resolution full-color true-color large screen
It can be connected to a PC via USB and custom Bluetooth
A micro printer can be configured to print test data at any time.

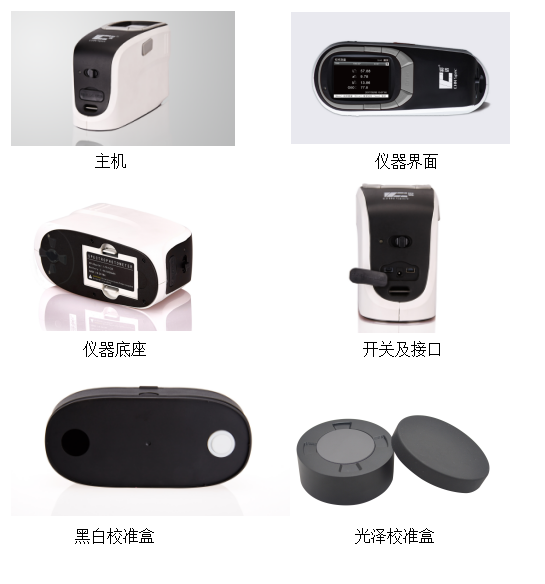

Detail drawing
