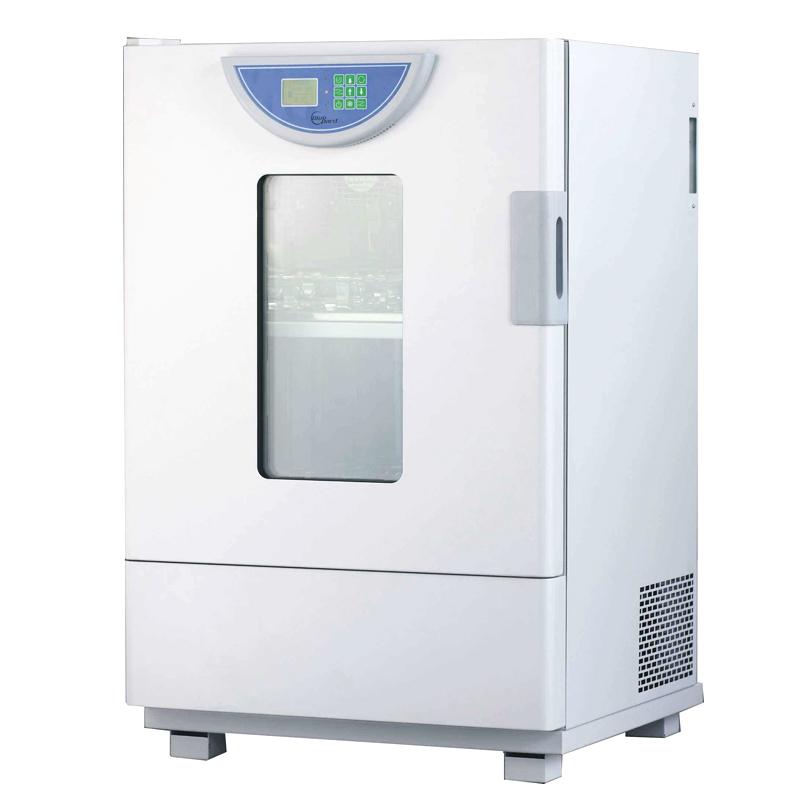

YIHENG BHO-401A aging Test Chamber

BHO-401A

Aging Test Chamber

Temperature range RT + 20~250 ℃, thermostatic fluctuation +/- 0.5 ℃, Temperature uniformity 0~200 times/hour (adjustable), turntable speed 10~12rpm, Timer Range 0~5999min, liner size 450 * 450 * 450mm

A new generation of aging Test Chamber, which integrates the company's many years of successful experience in chamber design, is suitable for various aging test requirements, with various programmable control functions, and can program temperature, time, heating rate, etc. The opening and closing time of the gas damper, and the heating aging test are carried out at an extremely fast speed.

Features

◆ Humanized design

● Large-screen LCD display, multiple groups of data displayed on one screen, menu-style operation interface, easy to understand, easy to observe and operate.

●Mirror stainless steel liner is adopted, the four corners are semi-circular transition, and the shelf bracket can be freely loaded and unloaded, which is convenient for the cleaning work of the studio.

● The test room is equipped with a low-speed rotating sample turntable, so that each test product can obtain consistent test results under the same temperature environment test in the test room.

◆ Multi-segment programmable controller (optional)

● Multi-segment LCD programmable controller, one-screen display of various parameters, and menu-style operation interface can simplify the complicated test process and truly realize automatic control and operation.

● Parameters such as multi-stage temperature, circulating wind speed, time and heating rate can be set and programmed at the same time. It can control the gradient of temperature rise, slowly rise from the initial temperature in the box, and can also preset functions such as automatic startup, standby and shutdown.

● 7 groups of 63 steps can be preset, each group has 9 steps, and each group can set the time from 0 to 5999 minutes.

◆ Self-diagnosis function

● When the aging Test Chamber breaks down, the LCD will display the failure information, and the running failure point can be seen at a glance.

◆ Convenient data processing (optional)

● It can be connected to a printer, 485 communication interface or USB data transfer interface (U disk) to record temperature and time with computer and printer

The time curve provides a strong guarantee for the storage and playback of test process data.

◆ Security function

● Independent temperature limit alarm system, and sound and light alarm to remind the operator to ensure safe operation without accidents. (optional)

High or low temperature and over-temperature alarm.

Packing list：host x1, instruction manual x1, function parameter table x1, warranty card x, certificate x1, sample holder x1, test hole cover x1, communication serial x1, CD x1,

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
