YIHENG LHS-80HC-II Constant Temperature and Humidity Chamber (Professional) Imported Sensors -10~70 ℃/80L

SE
YIHENG LHS-80HC-II Professional Constant Temperature and Humidity Chamber Temperature range -10~70 ℃, humidity control range 40~95% RH, input power 2000W400 × 400 × 500mm, standard 2 shelves, imported Sensors.
$2838.00/set
PromotionLoading...
Coupon
Model:

YiHeng LHS-80HC-II Constant Temperature and Humidity Chamber (Professional)SPEC

YiHeng LHS-80HC-II Constant Temperature and Humidity Chamber (Professional)Details

YiHeng LHS-80HC-II Constant Temperature and Humidity Chamber (Professional)Packing list

SKU
NB012748
Temperature range
-10~70℃
Temperature Resolution
0.1℃
Temperature fluctuation
High temperature +/- 0.5 ℃, low temperature +/- 1 ℃
Humidity control range
40~95%R.H
Humidity Deviation
±3%R.H
Input power
2000W
Environment temperature
5~35℃
Power
AC220V 50HZ
Interior size
400*400*500mm
Dimensions
550*790*1080mm
Shelf (std.)
2pcs
Temperature transducer
Imported Sensors
printer
Equipped
Net Weight
122Kg
Gross Weight
162Kg
Packing size
870*700*1700mm
LHS-80HC-II
Constant Temperature and Humidity Chamber (Professional)

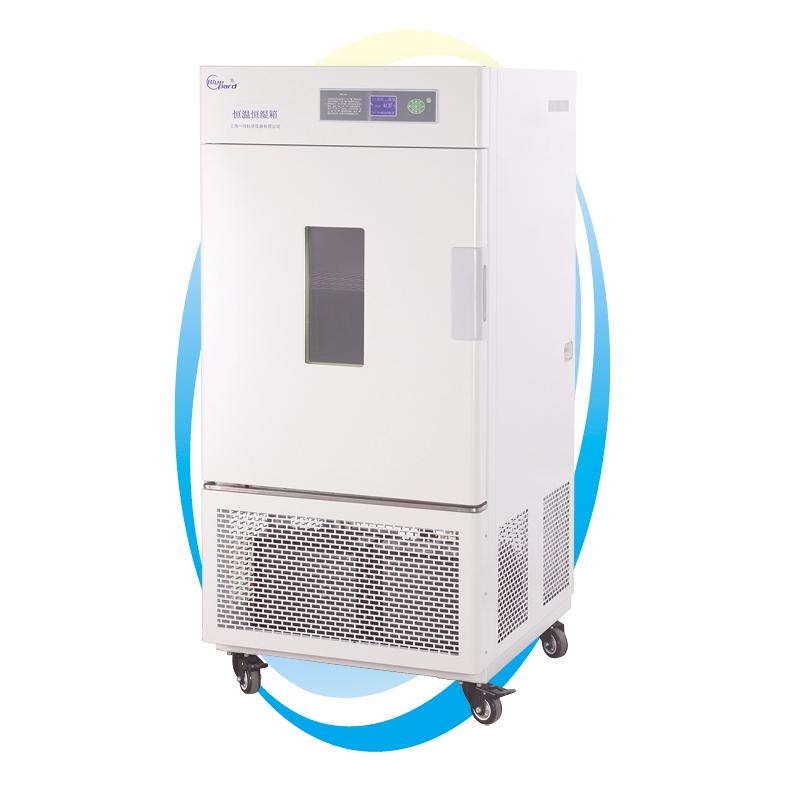

YIHENG LHS-80HC-II Constant Temperature and Humidity Chamber (Professional) Imported Sensors -10~70 ℃/80L Picture

Overview

The constant temperature and Humidity Chamber has a precise temperature and humidity control system. It provides various simulated environmental conditions for industrial research and biotechnology testing. It can be widely used in sterility tests, stability checks, and Testing of raw material properties, product packaging, and product life of industrial products.


Features

● The new fluoride-free design keeps you ahead of healthy life.

● It adopts mirror stainless steel liner, the corners are semi-circular and easy to clean, and the distance between the shelves in the box is adjustable.

● Microcomputer temperature and humidity controller adopts TMHM balanced temperature and humidity regulation method, stable operation, accurate temperature and humidity control, safe and reliable.

● Key components such as compressors are all imported products.

● Use imported humidity sensor.

● Equipped with an independent temperature limit alarm system, it will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment without accidents.

● It can be equipped with a printer, which can record the changes of temperature and humidity parameters. (Type I optional)

● It can be equipped with RS485 interface for connecting to a printer or computer, and can record the changes of temperature and humidity parameters. (optional)

● There is a test hole with a diameter of 25mm on the left side of the box, which is convenient for experimental operation and testing


Series model comparison

model

technical indicators

Constant Temperature and Humidity Chamber (professional type)

LHS-80HC-I

LHS-80HC-II

LHS-150HC-I

LHS-150HC-II

LHS-250HC-I

LHS-250HC-II

LHS-500HC-Ⅰ

LHS-500HC-Ⅱ

LHS-800HC-Ⅰ

LHS-800HC-Ⅱ

Temperature control range

I: -5~80℃ II: -10~70℃

temperature resolution

0.1°C

temperature fluctuation

High temperature: ±0.5°C Low temperature: ±1°C

Humidity range

I: 40-85%RH II: 40-95%RH

Humidity Deviation

±3%RH

input power

2000W

2100W

2300W

3850W

8050W

Working temperature

+5~35℃

Voltage

AC220V 50HZ

Studio size (mm) W×D×H

400×400×500

550×405×670

600×500×830

800×700×900

800×590×1650

Dimensions (mm) W×D×H

550×790×1080

690×800×1430

740×900×1580

1000×1100×1860

1360×890×2000

Carrier (standard)

2 pieces

3 pieces

4 pieces

Remark

Type I printer is optional/Type II is equipped with a printer


80/150/250 Ⅰ type constant temperature and Humidity Chamber, use dry and wet bulbs;

500/800Ⅰ type constant temperature and Humidity Chamber, using imported sensors;

Type II constant temperature and Humidity Chamber, using imported sensors;


Temperature and Humidity Chart


optional parts

1. RS232/485 interface and communication software

2. LCD program controller

3. Wireless alarm system (SMS alarm system)

4. Printer

Communication Interface & Printer
