YIHENG LHS-150HC-II Constant Temperature and Humidity Chamber (Professional) Imported Sensors -10~70 ℃/150L

SE
YIHENG LHS-150HC-II Professional Constant Temperature and Humidity Chamber Temperature range -10~70 ℃, humidity control range 40~95% RH, input Power 2100W550 × 405 × 670mm, standard 3 shelves, imported Sensors.
$3402.00/set
PromotionLoading...
Coupon

YiHeng LHS-150HC-II Constant Temperature and Humidity Chamber (Professional)SPEC

YiHeng LHS-150HC-II Constant Temperature and Humidity Chamber (Professional)Details

YiHeng LHS-150HC-II Constant Temperature and Humidity Chamber (Professional)Packing list

SKU
NB012750
Temperature range
-10~70℃
Temperature Resolution
0.1℃
Temperature Fluctuation
High temperature +/- 0.5 ℃, low temperature +/- 1 ℃
Humidity Control Range
40~95%R.H
Humidity Deviation
±3%R.H
Input Power
2100W
Environmental temperature
5~35℃
Power supply Voltage
AC220V 50HZ
Interior size
550*405*670mm
Dimensions
690*800*1430mm
Shelf (std.)
3pcs
Temperature sensor
Imported Sensors
printer
Equipped
Net Weight
186Kg
Gross Weight
216Kg
Packing size
960*860*1690mm
LHS-150HC-II
Constant Temperature and Humidity Chamber (Professional)

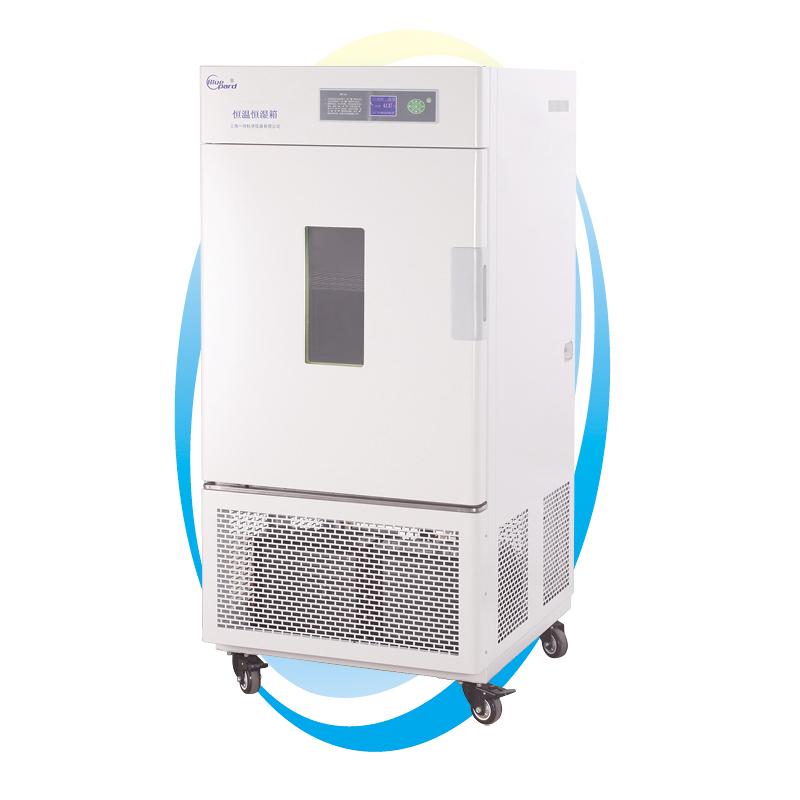

YIHENG LHS-150HC-II Constant Temperature and Humidity Chamber (Professional) Imported Sensors -10~70 ℃/150L Picture

Overview of uses

The constant temperature and Humidity Chamber has a precise temperature and humidity control system, which provides various simulated environmental conditions required for industrial research and biotechnology testing, and can be widely used in sterility testing, stability testing, and raw material performance, product packaging, product life and other tests of industrial products.


Features

● The new fluorine-free design makes you always walk in front of a healthy life.

● Mirror stainless steel liner is used, the four corners of the semi-circular arc are easy to clean, and the shelf spacing in the box is adjustable.

● Microcomputer temperature and humidity controller, using TMHM balanced temperature and humidity control method, stable operation, accurate temperature and humidity control, safe and reliable.

● Compressors and other key components are imported products.

● Imported humidity sensor is selected.

● It is equipped with an independent temperature limit alarm system, which will be automatically interrupted when the limit temperature is exceeded, so as to ensure the safe operation of the experiment and no accidents.

● It can be equipped with a printer, which can record the changes of temperature and humidity parameters. (Type I optional)

● It can be equipped with RS485 interface, which can be used to connect to a printer or computer, and can record the change of temperature and humidity parameters. (Optional)

● There is a test hole with a diameter of 25mm on the left side of the box, which is convenient for experimental operation and testing


Comparison of series models

Model

Technical Indicators

Constant temperature and Humidity Chamber (professional)

LHS-80HC-I

LHS-80HC-II

LHS-150HC-I

LHS-150HC-II

LHS-250HC-I

LHS-250HC-II

LHS-500HC-Ⅰ

LHS-500HC-Ⅱ

LHS-800HC-Ⅰ

LHS-800HC-Ⅱ

Temperature control range

I:-5~80℃  II:-10~70℃

Temperature resolution

0.1℃

Temperature fluctuations

High Temperature: ±0.5°C Low Temperature: ±1°C

Humidity control range

I:40~85%RH   II:40~95%RH

Humidity deviation

±3%RH

Input power

2000W

2100W

2300W

3850W

8050W

Operating ambient temperature

+5~35℃

Supply Voltage

AC220V 50HZ

Studio size (mm): W×D×H

400×400×500

550×405×670

600×500×830

800×700×900

800×590×1650

Dimensions (mm): W×D×H

550×790×1080

690×800×1430

740×900×1580

1000×1100×1860

1360×890×2000

Cargo carrier (standard)

2 pieces

3 pieces

4 pieces

remark

Type I printer optional / Type II printer already equipped


80/150/250I. constant temperature and Humidity Chamber, using dry and wet balls;

500/800I. Climate Chamber, imported sensor;

Type II. constant temperature and Humidity Chamber, imported sensor;


Temperature and humidity map


Options

1. RS232/485 interface and communication software

2. LCD program controller

3. Wireless alarm system (SMS alarm system)

4. Printer

Communication interface & printer
