Hardness test of roll Shore Hardness Gauge KAIRDA NDT290S cast steel roll, forged steel roll, cast iron roll

NDT290S

Leeb Hardness Tester

Introduction

KAIDA Roll Shore Hardness Tester NDT290S is a portable Shore Hardness Tester with a printer. It adds the function of roll hardness detection on the basis of the general Leeb Hardness Tester. It is a special Shore Hardness Tester for station rolls. , It can detect three hardness values of cast iron roll, forged steel roll and cast steel roll. The shell of the NDT290S Shore Hardness Tester is an orange fully sealed metal shell, which is durable and has the advantages of impact resistance and anti-electromagnetic interference. The high-contrast LCD can clearly and intuitively display the measured hardness value readings.

Applications

Roll Shore Hardness Tester NDT290S is suitable for the hardness testing of the following materials:

■  Roll industry (cast steel roll, forged steel roll, cast iron roll)

■  Mold cavity

■  Heavy workpiece

■ On-site hardness testing of large parts and non-detachable parts

■  Failure analysis of pressure vessels, turbogenerators and their equipment

■  Workpieces with very narrow experimental space

■  Bearings and other parts

■  Multiple measuring parts in a large range of large workpieces

■  Material classification of metal material warehouse

Features and advantages

1. NDT290S Shore Hardness Tester is specially used to detect the Shore hardness value of rolls (three materials: cast steel rolls, forged steel rolls, and cast iron rolls)

2. D-type high-precision impact device, accurate and reliable measurement

3. The orange fully-sealed metal shell is sturdy and durable, and has good anti-vibration, shock and electromagnetic interference capabilities.

4. Seven hardness values including Shore (HS), Leeb (HL), Brinell (HB), Rockwell (HRC/HRB/HRA), and Vickers (HV) can be measured once and converted automatically.

5. It has the software calibration function of the power-on display value to ensure that the data is applicable and accurate under different specifications and standards of any industry.

6. NDT290S Shore Hardness Tester can pre-set upper and lower values, and over-limit alarm.

7. 7 different impact devices can be selected, no calibration is required for replacement, and different impact devices can be automatically identified.

8. It can store 600 sets of measurement values, with full Chinese menu and backlight display, which is convenient for operation in low-light environments.

9. NDT290S Shore Hardness Tester can be equipped with powerful microcomputer software, which has rich functions such as transmission of measurement results, measurement value storage management, measurement value statistical analysis, printing measurement value reports, etc., to meet the higher requirements of quality assurance activities and management.

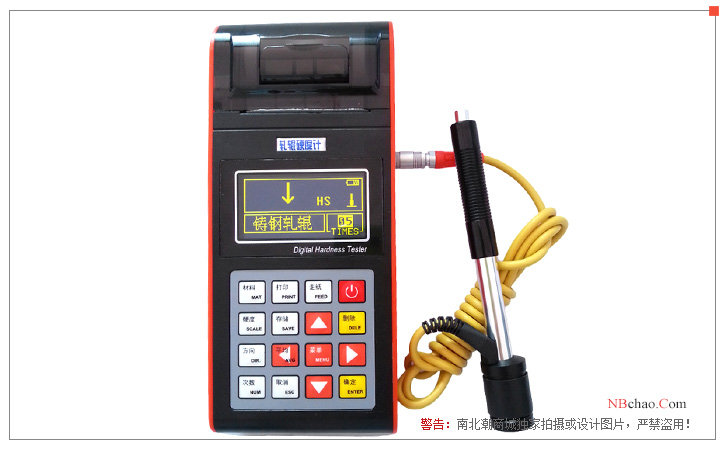

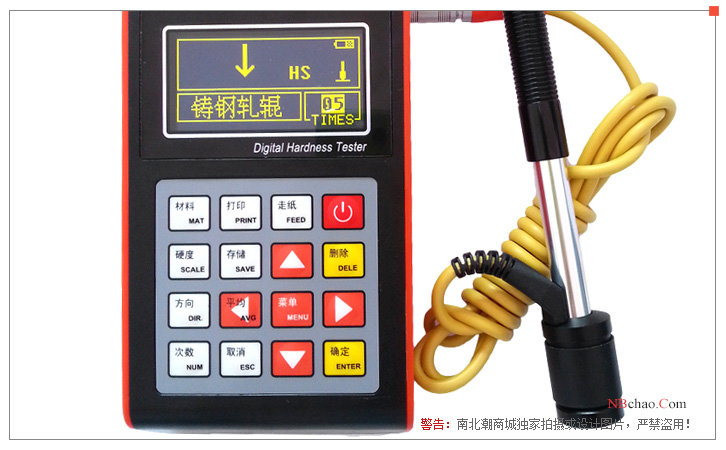

Pictures

Packing list：Host x1, D-type Impact device x1, standard Hardness block x1, nylon brush x1, screw driver x1, small support ring x1, communication cable x1, data processing software x1, printing paper x1, No. 5 battery x2, manual x1, certificate x1, warranty card x1, instrument special case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
