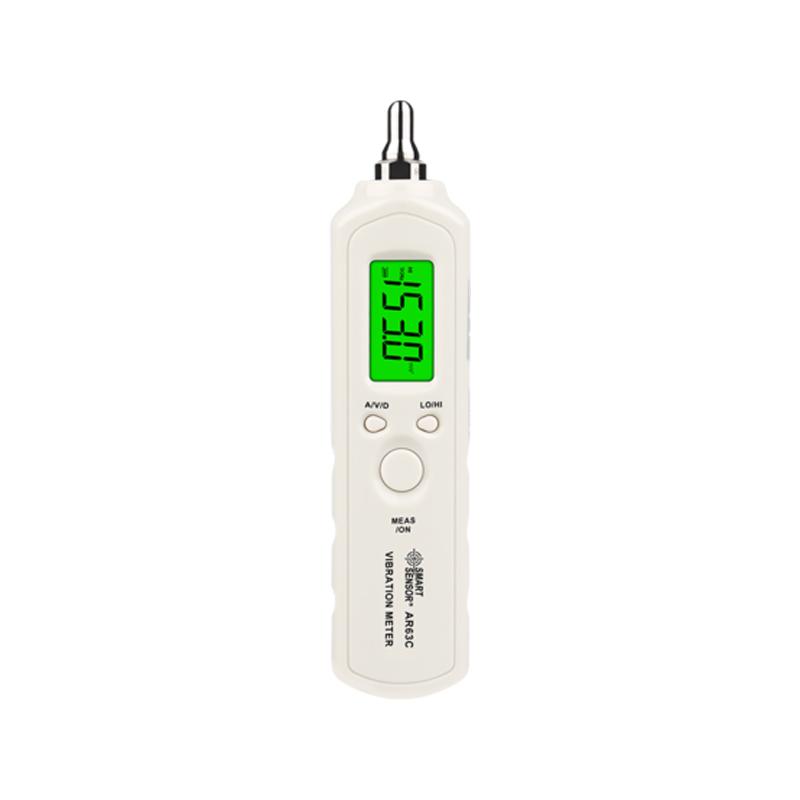

SMART SENSOR AR63C Portable VibratIon Meter Acceleration 0.1~ 199.9m/s2
SECeramics (shear type), acceleration measurement range 0.1~ 199.9m/s ², speed measurement range 0.1~ 199.9mm/s, displacement measurement range 0.001~ 1.999mm
$231.00/set
PromotionLoading...
Coupon
Model：
AR63C
Similar products

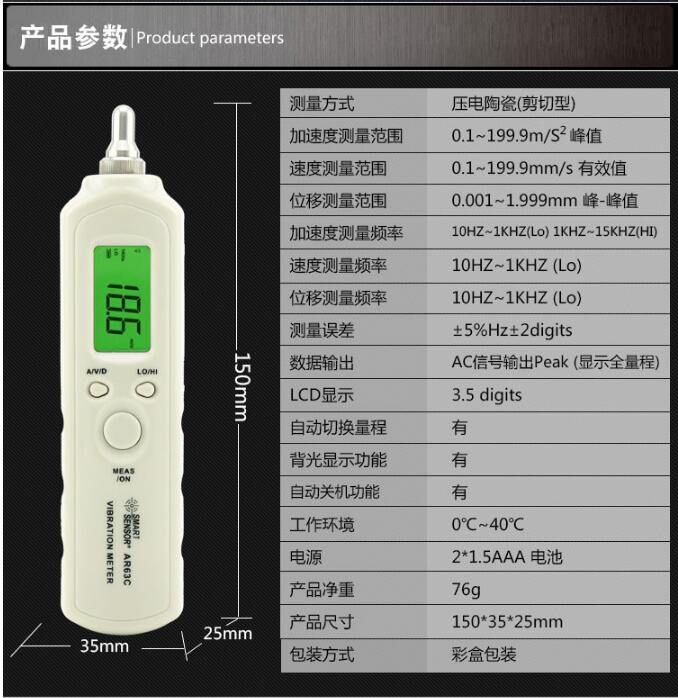

SMART SENSOR AR63C VibratIon MeterSPEC
SMART SENSOR AR63C VibratIon MeterDetails

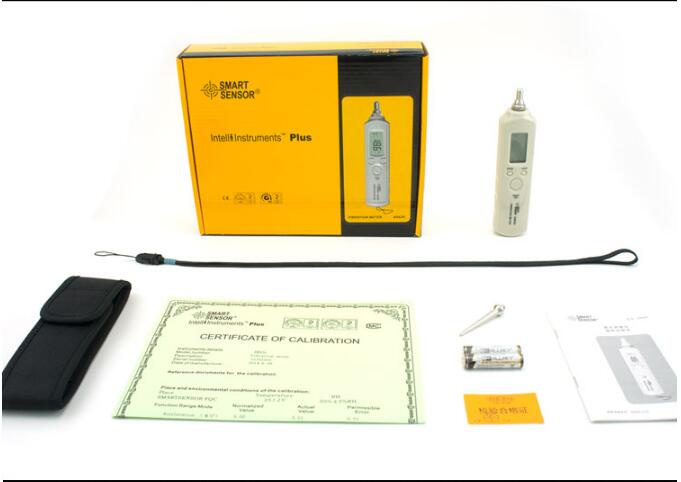

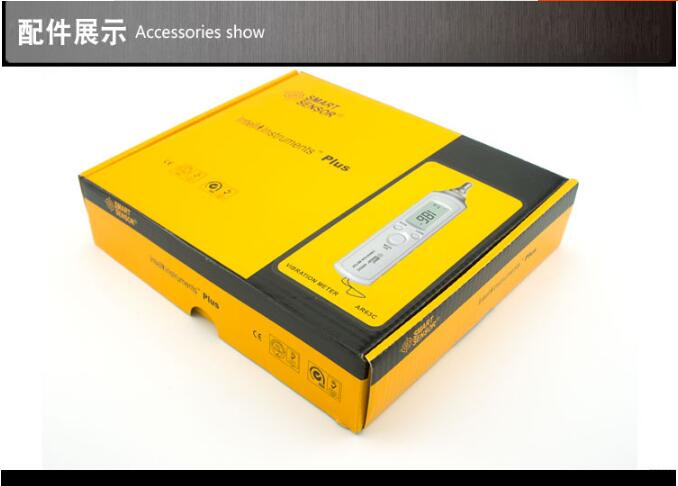

SMART SENSOR AR63C VibratIon MeterPacking list
- SKU
- NB012771
- Measurement method
- Pottery and porcelain (cut type)
- Acceleration Measurement range
- 0.1~199.9m/s²
- Speed Measurement range
- 0.1~199.9mm/s
- Displacement Measurement range
- 0.001~1.999mm
- Acceleration frequency range
- 10Hz~1KHz(LO)，1KHz~15KHz(HI)
- Speed frequency range
- 10Hz ~ 1KHz (LO)
- Displacement frequency range
- 10Hz ~ 1KHz (LO)
- Measurement error
- ±5%Hz±2digits
- Data output
- AC signal output Peak (full scale display)
- display
- 3.5 digits LCD display
- Automatic range switching
- Yes.

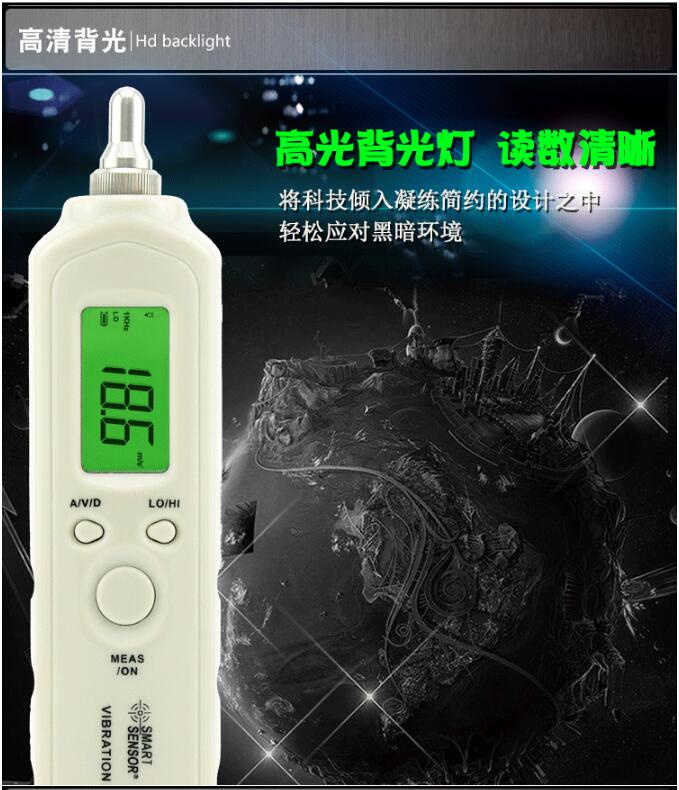

- Backlight display function
- Yes.
- Automatic shutdown function
- Yes.
- Operating Temperature
- 0~40℃

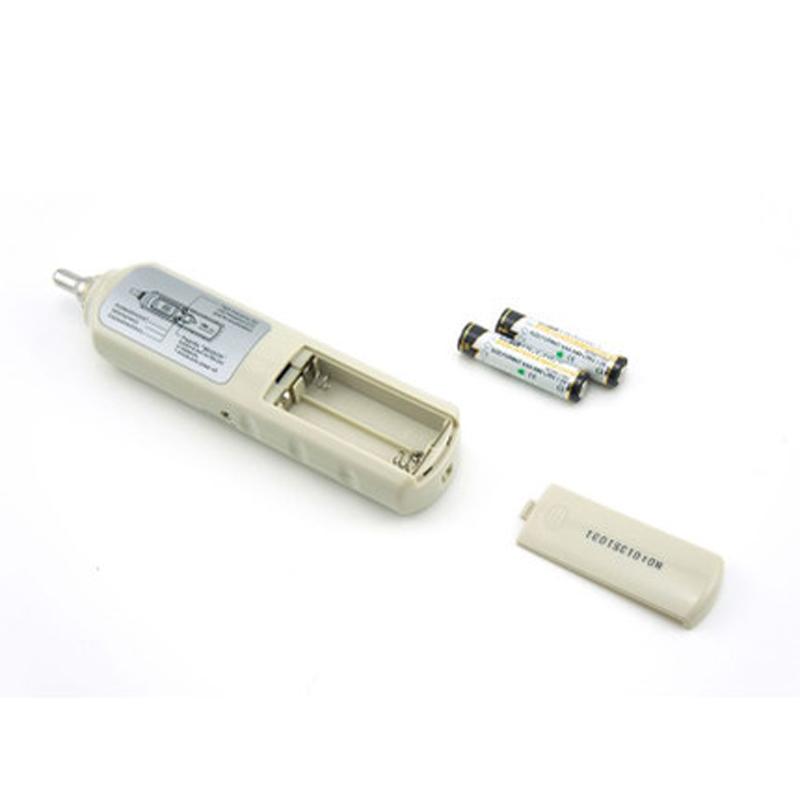

- Power
- 2 * 1.5AAA battery
- Weight
- 76g
- Dimensions
- 150*35*25mm
- Encasement method
- Color Box Encasement
- Standard outer box Capacity
- 40PCS
- Standard outer box size
- 52*43*32.5cm
- Standard Gross Weight
- 12.65KG
AR63C
VibratIon Meter
Ceramics (shear type), acceleration measurement range 0.1~ 199.9m/s ², speed measurement range 0.1~ 199.9mm/s, displacement measurement range 0.001~ 1.999mm
Introduction

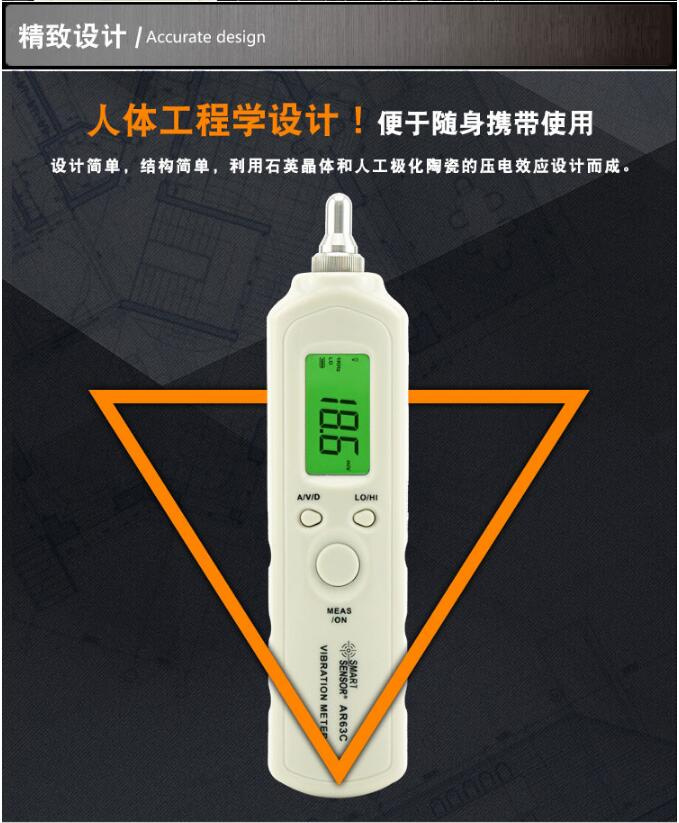

SIMA AR63C Vibration Meter is also called Vibration Meter Vibration Analyzer or Vibration Pen. It is designed by using the piezoelectric effect of quartz crystal and artificially polarized ceramic (PZT). It is widely used in machinery manufacturing, electric power, metallurgical vehicles and other fields.
