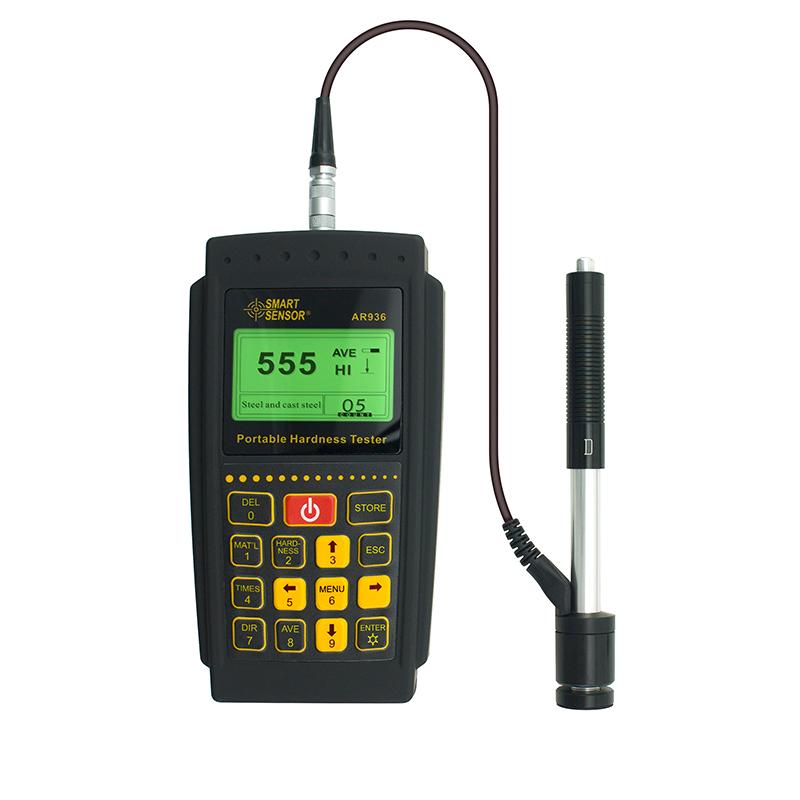

SMART SENSOR AR936 Digital Leeb Hardness Tester Range 170-960HLD

SE
Measurement range 170~960HLD, measurement accuracy +/- 10HLD, measurement direction 360 ° (vertical down, oblique down, horizontal, oblique up, vertical up), hardness standard HL/HB/HRC/HRA/HV/HS, LCD lattice display, data storage 500 groups
$584.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

SMART SENSOR AR936 Leeb Hardness TesterSPEC

SMART SENSOR AR936 Leeb Hardness TesterDetails

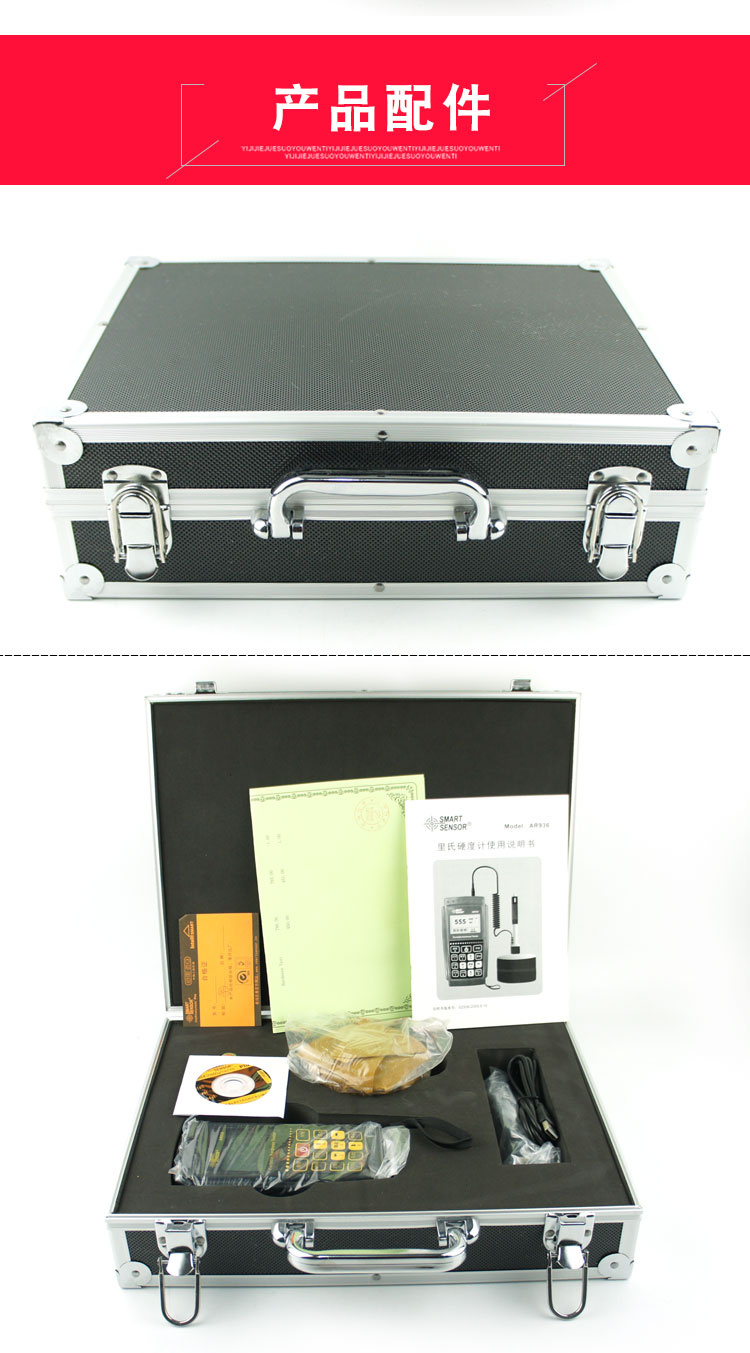

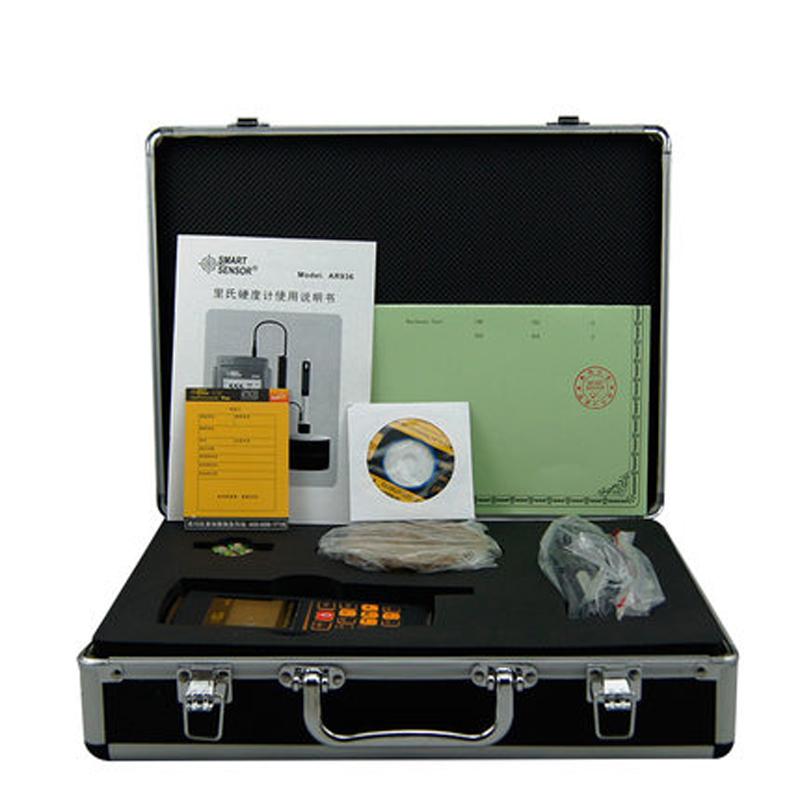

SMART SENSOR AR936 Leeb Hardness TesterPacking list

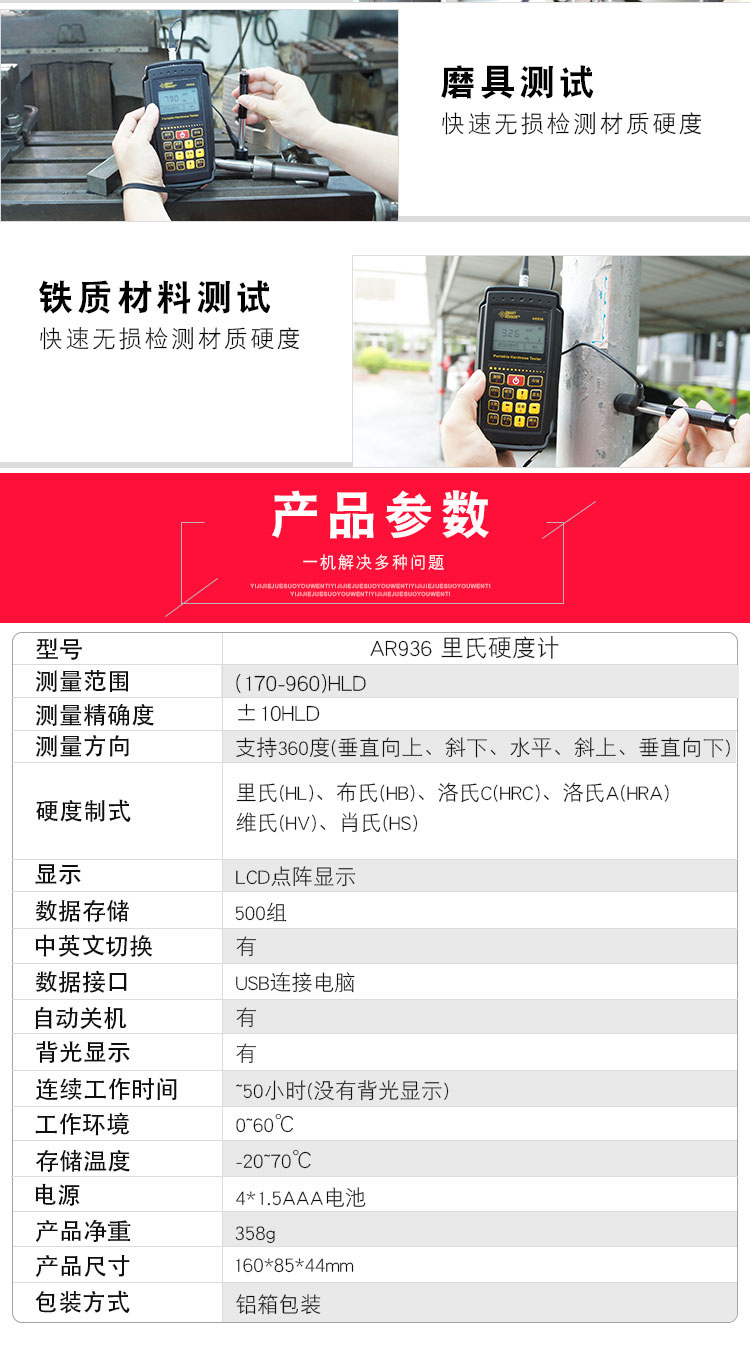

SKU
NB012772
Measurement range
170~960HLD
Measurement Accuracy
±10HLD
Measurement direction
360 ° (vertical down, diagonal down, horizontal, diagonal up, vertical up)
Hardness system
HL/HB/HRC/HRA/HV/HS
Display
LCD dot matrix display
Data storage
500 sets
Switch between Chinese and English
Yes.
Interface
USB
Automatic shutdown
Yes.
Backlight
Yes.
Working time
~ 50 hours (no backlight display)
Allowable operating temperature
0~60℃
Storage temperature
-20~70℃
Power
4 * 1.5AAA battery
Net Weight of product
358g
Dimensions
160*85*44mm
Encasement mode
Aluminum Encasement
Standard outer box Capacity
1PCS
Standard outer box size
42.5*18*36.5cm
Standard Gross Weight
6.2KG
AR936
Leeb Hardness Tester
Measurement range 170~960HLD, measurement accuracy +/- 10HLD, measurement direction 360 ° (vertical down, oblique down, horizontal, oblique up, vertical up), hardness standard HL/HB/HRC/HRA/HV/HS, LCD lattice display, data storage 500 groups

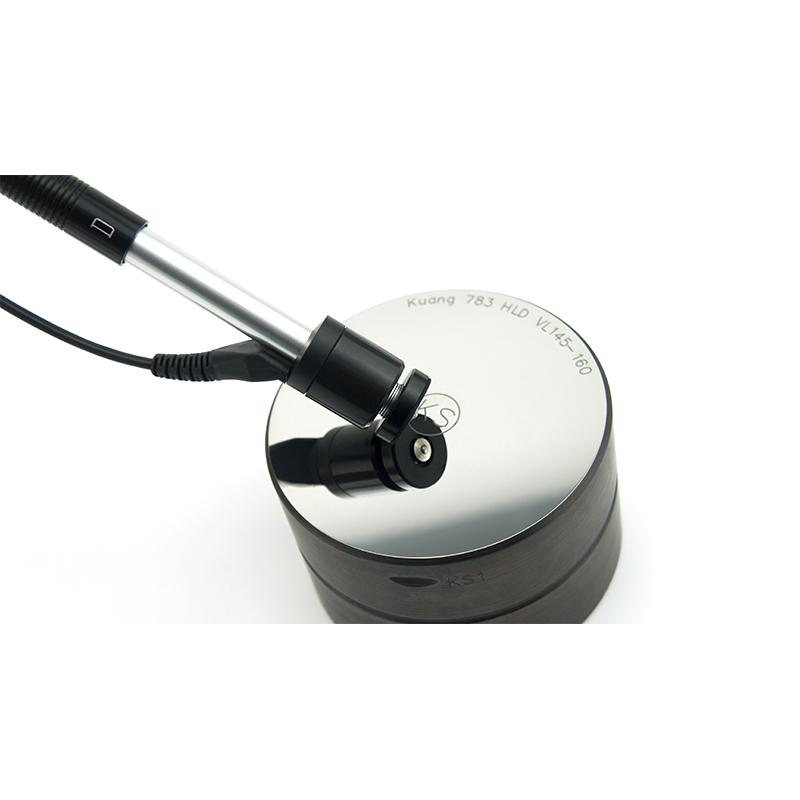

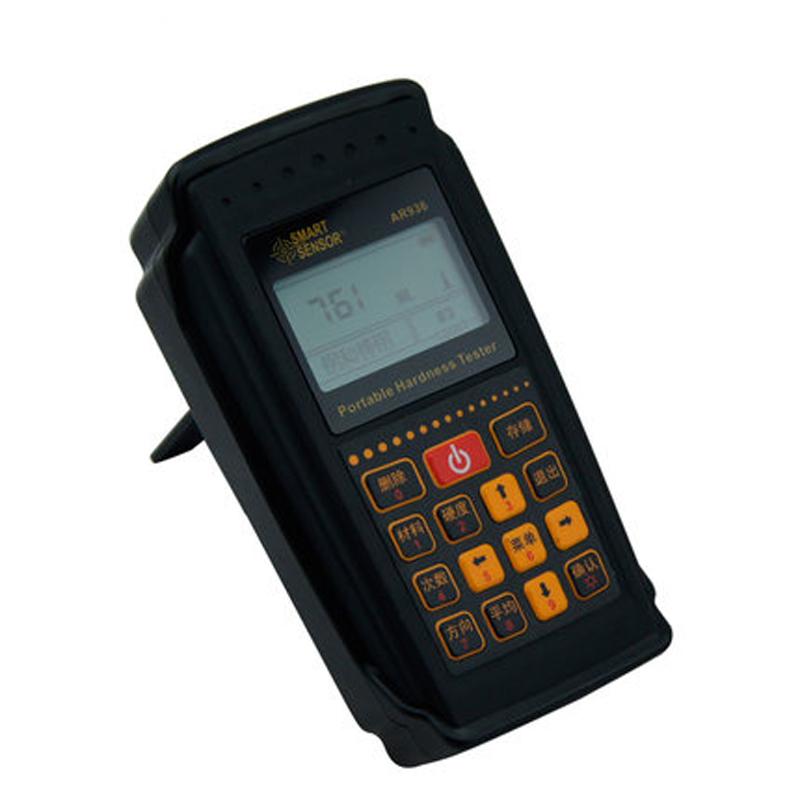

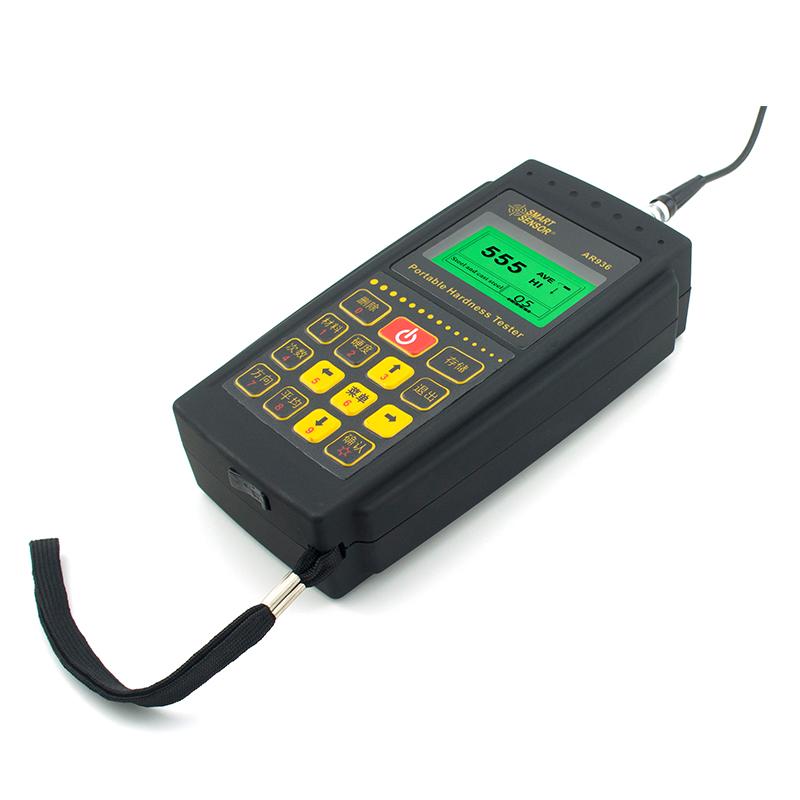

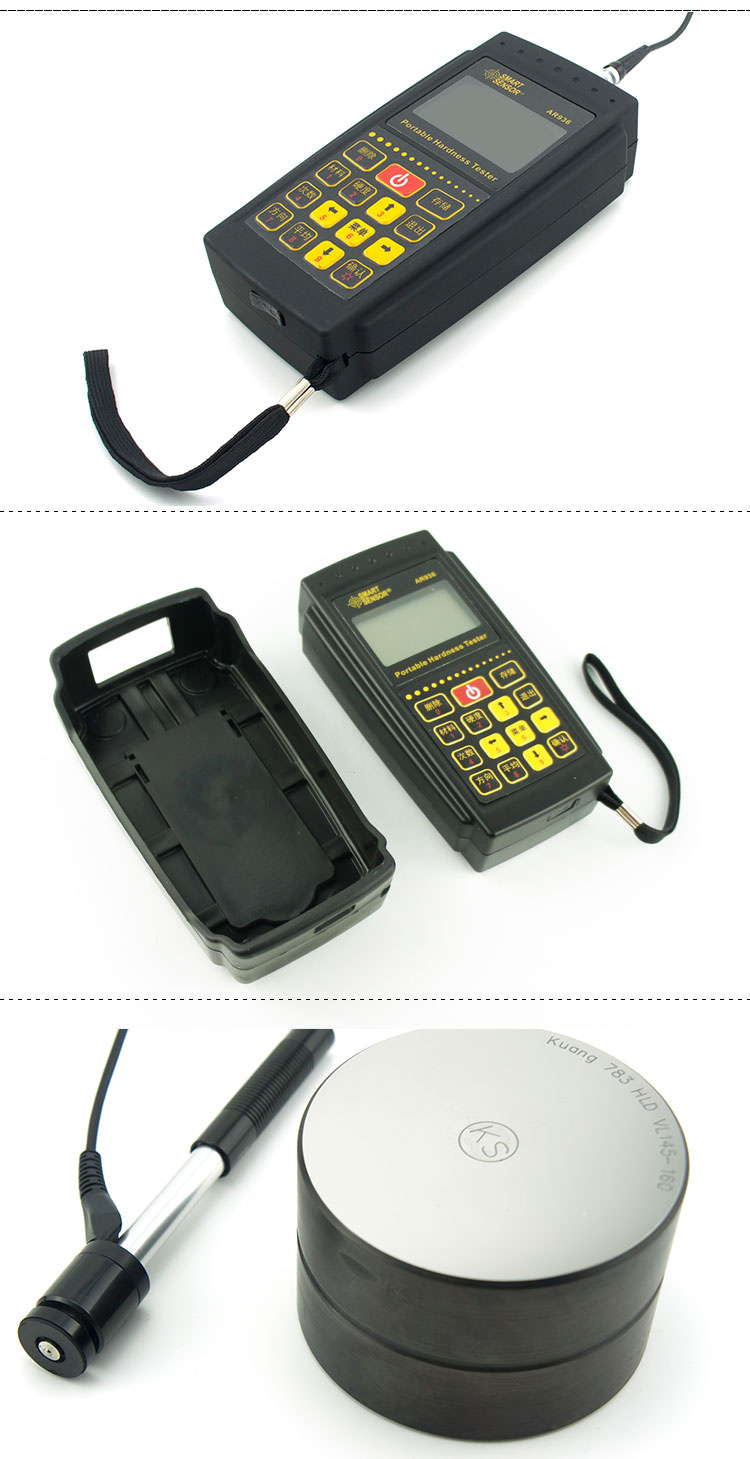

SMART SENSOR AR936 Digital Leeb Hardness Tester Range 170-960HLD Picture

Introduction

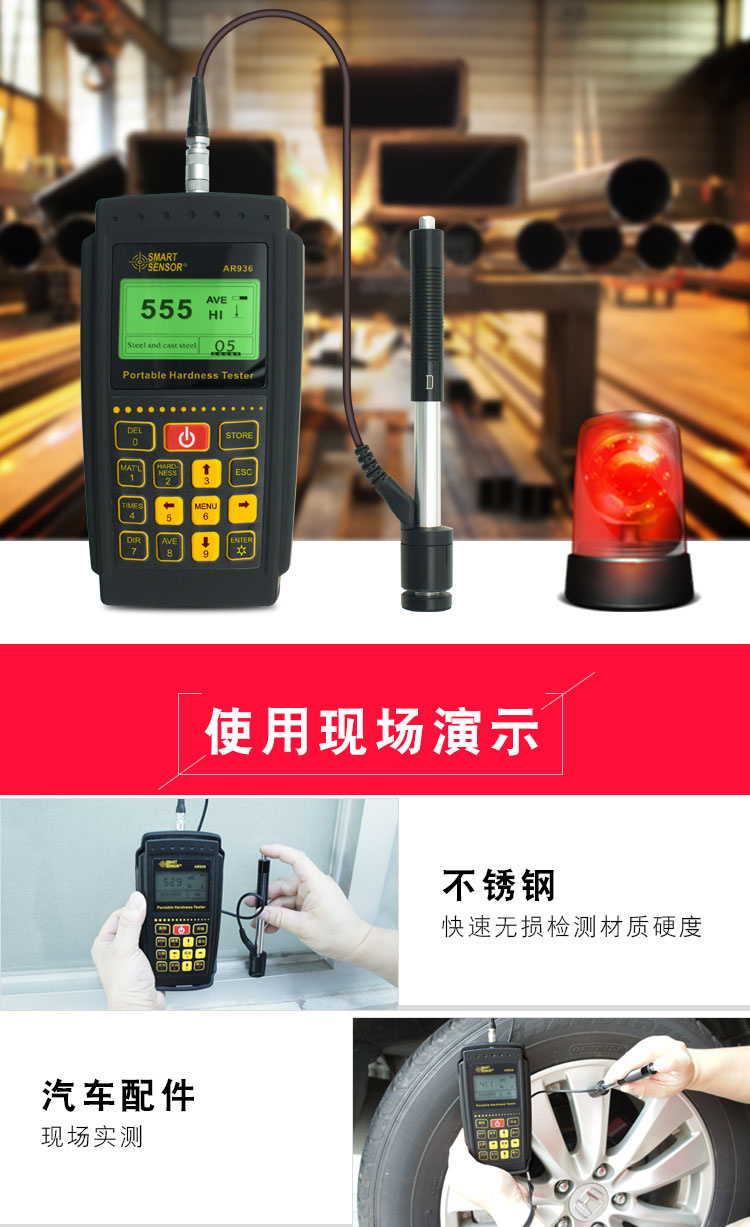

Mainly used in: hardness testing of machine tool guide rails and automobile chassis; installed machinery or permanent assembly parts; workpieces with very small test space such as mold cavities; rapid inspection of multiple measuring parts in a large range of large workpieces; pressure vessels, Failure analysis of turbo generators and other equipment; production lines of bearings and other parts; material classification of metal material warehouses; quality control of heat-treated workpieces; formal original records of test results are required;

Features

It can realize the mutual conversion between six kinds of hardness (HL, HRB, HRC, HB, HV, HS) and the mutual conversion between hardness and tensile strength.

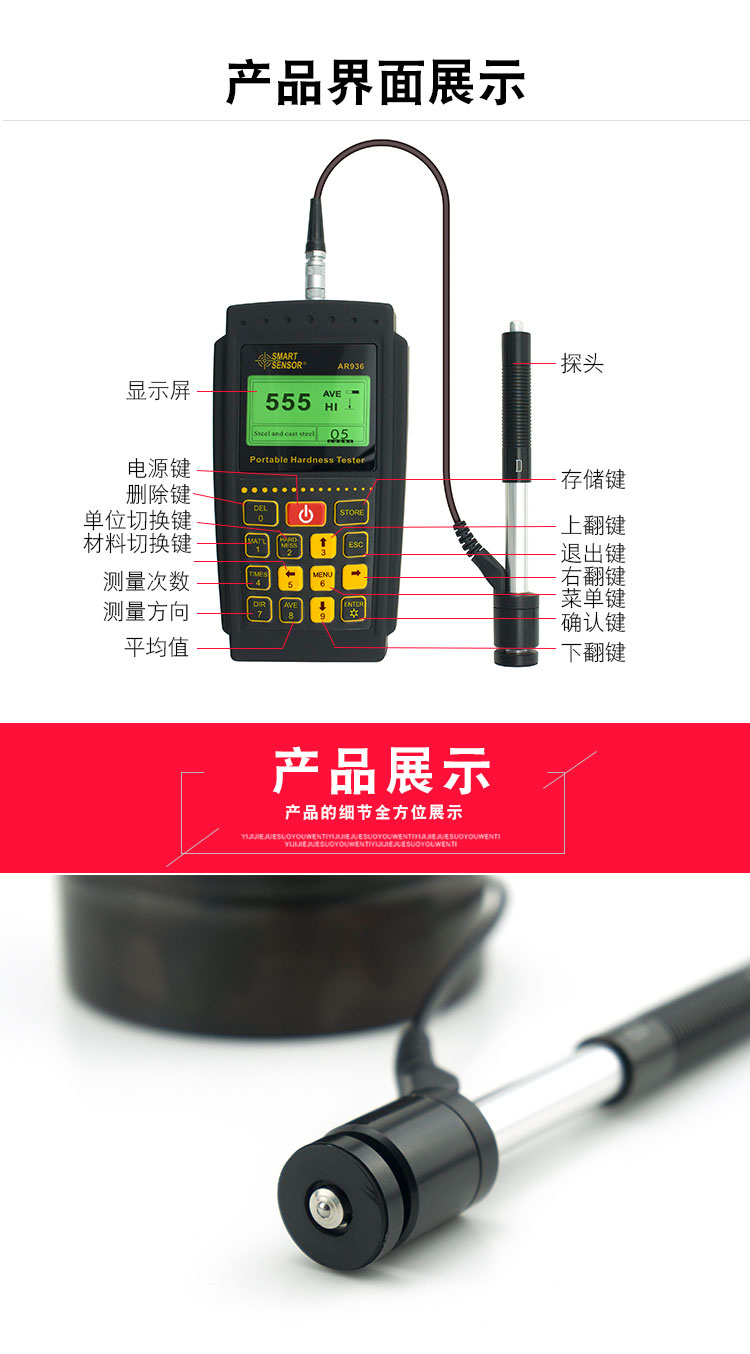

It can display information such as measured value, average value, date, impact direction, test times, test material, hardness system, etc., and the display information is rich.
