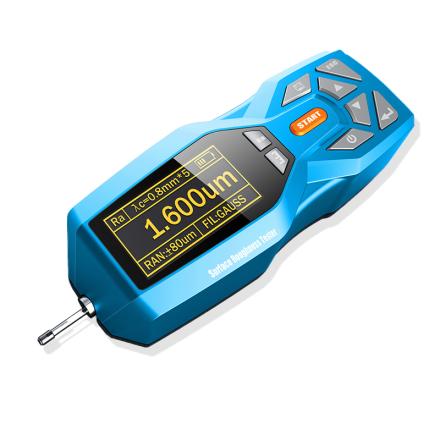

Specifications
| Display | digital display |
| Measurement parameters | Ra、Rz=Ry(JIS)、Rq、Rt=Rmax、Rp、Rv、R3z、R3y、RzJIS、Rs、Rsk、Rku、Rsm、Rmr |
| Measuring range | Z axis (vertical): 160μm; X axis (horizontal): 17.5mm |
| resolution | 0.01μ m | 0.02μ m | 0.04μ m |
| Error of indication | ≤±10％ |
| Indication of variability | ≤6％ |
| Sampling length | 0.25mm|0.8mm|2.5mm |
| Evaluation length | Ln = lr × n n = 1 ~ 5 |
| Sensors - Radius | 5μm |
| Sensors - Materials | natural diamond |
| Sensors - Force Measurement | 4mN |
| Sensors - Angle | 90° |
| Sensors - measurement principle | Displacement differential inductor |
| Drive speed - when measuring | lr=0.25, Vt=0.135mm/s;lr=0.8, Vt=0. 5mm/s;lr=2.5, Vt=1mm/s |
| Drive speed - when returning | Vt=1mm/s |
| filter | RCPC-RCGAUSSD-P |
| Measurement profile | Linear dispersion, Roughness profile, Direct profile |
| Dimensions | 158*63.5*46mm |
| Product Weight | 300g |
| Operating Conditions | Temperature: - 20 ℃~ 40 ℃; Humidity: < 90% RH |
| Applicable standard | ISO, DIN, ANSI, JIS multiple national standards |
| Sensors - Radius | Carbide, sliding direction radius 40mm |
| Storage and transportation environment | Temperature: - 40 ℃~ 60 ℃; Humidity: < 90% RH |
Packing list
Host x1, Sensors x1, calibrated block x1, adjustable bracket x1, power adapter x1, manual x1, certificate x1, warranty card x1, instrument special case x1
After-sales instructions
Warranty days: 730 days
1. After the instrument confirms the receipt, it will be replaced free of charge within 3 months if there is a quality problem under the normal operating conditions of the "Instruction Manual";
2、Warranty period2years (except consumables, probes, sensors, cables)；
3. After-sales service is provided by the original factory;
4. Free maintenance during the warranty period, and long-term technical support outside the warranty period.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/1278/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
