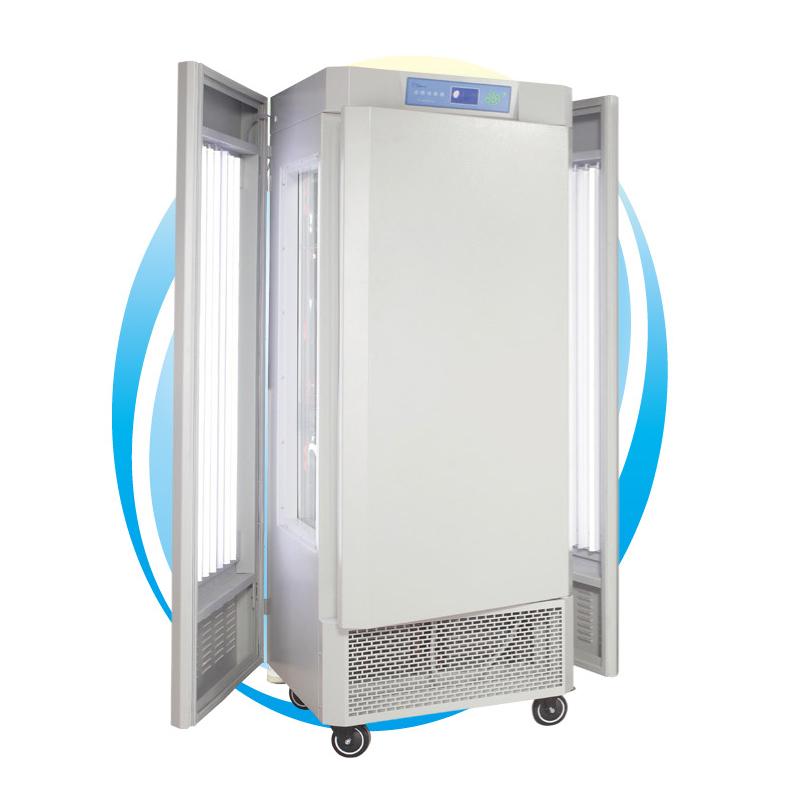

YIHENG MGC-800HP-2L Artificial Climate Chamber

MGC-800HP-2L

Artificial Climate Chamber

Volume 800L, Temperature range with light 10~50 ℃; No light 0~50 ℃, Temperature resolution 0.1 ℃, Temperature fluctuation +/- 1 ℃, Humidity Control Range 50~90% RH, Humidity deviation +/- 5~ 7% RH, liner size 965 * 580 * 1430mm

LED light Incubator/Artificial climate Chamber is suitable for plant growth and tissue culture, seed germination, seedling cultivation, microbial culture test; insect and small animal breeding; BOD determination of water quality monitoring; aging and service life test of medicinal materials, wood, building materials etc., and lighting for other purposes, special test equipment for constant temperature and humidity.

Features

◆Humanized design

● New fluorine-free design, green and environmental protection keeps you at the forefront of healthy life.

● Humanized touch buttons, menu-style operation, intuitive and clear, multiple parameters can be displayed on the same screen.

●Mirror-finished stainless steel liner, four-corner half-arc transition, removable partitions or partitions without tools, convenient for disinfection and cleaning of the working room.

● Large-screen LCD display, multi-group data display on one screen, menu-style operation interface, easy to understand, easy to observe and operate.

● 30 groups of programs can be set, and the time range for each group is 1~99 hours and 59 minutes (standard configuration).

● Can be added: with CO 2 inlet (to promote plant growth) and CO 2 controller. (Imported infrared CO 2 sensor)

What are the advantages of LED light sources?

● No heat interference: The LED beam does not generate heat and extracts useful light that is beneficial to plant growth.

● Energy saving and environmental protection: the energy consumption of LED light source is extremely low, which is about 80% lower than that of ordinary light source, so the power consumption is extremely low.

● Small size: LED light source has the characteristics of miniaturization, planarization and strong designability.

● Stability and long life: provide accurate and stable light, the service life can reach more than 30,000 hours, and the photoelectric conversion efficiency is high.

● Fast response speed: Optional top-mounted plane lighting ensures that the culture can fully and evenly absorb the light source and maintain the consistency of the experimental results.

◆Intelligent control technology

● It can simulate the temperature changes of nature during the day and night, and can also simulate the multi-directional light source of nature

● The parameters set by the user can be automatically stored in the event of a power failure, and the original setting program will be run after the power is turned on

● The circulating wind speed is automatically controlled, which can avoid blowing down the plant seedlings due to the excessively fast circulating wind speed during the test

● LED light Incubator/Artificial climate Chamber is equipped with various LED light sources suitable for plant growth, and the spectral structure is consistent with the existing literature data

◆Intelligent multi-stage programmable control

●Procedural control of temperature, humidity, illuminance, and time simplifies the complex test process and truly realizes automatic control and operation.

◆Continuous operation technology (new features)

● Two sets of international brand compressors are automatically switched in turn to ensure that plant cultivation does not fail for a long time, breaking through the defects of the existing light Incubator/Artificial climate Chamber that cannot run for a long time.

◆Security function

● Equipped with an independent temperature limit alarm system, it will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment without accidents. (standard configuration)

● When the light box or Artificial climate Chamber breaks down, the LCD will show the failure information, and the operation failure can be seen at a glance.

● High or low temperature alarm.

◆Data control system (optional)

● RS485 or USB interface and software.

● Realize data recording, data communication, graphic dynamic display, and fault analysis.

● Optional printer system for data recording, in line with GMP standards.

Optional parts: (increase the delivery time of optional parts by 7 days)

1. RS485/232 interface and communication software

2. Embedded printer

3. U disk data storage

4. Wireless alarm system (SMS alarm system)

5. CO2 air inlet (to promote plant growth)

6. CO2 controller (imported infrared CO2 sensor)

7. Illumination control system

Packing list：Host x1, packing list x1, instruction manual x1, warranty x1, warranty card x1, humidifier x2, shelf x3, lighting lamp x1, ultraviolet sterilizing lamp x1, water plate x1, fuse x2

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
