SMART SENSOR AS8906 Nitrogen Dioxide Detector, Diffusion + Pump Suction

The SMART SENSOR AS8906 nitrogen dioxide Detector detects that the concentration of NO2 gas is 0~20ppm and the resolution is 1ppm. The AS8906 nitrogen dioxide Detector has three alarm modes: sound, light and vibration.
Model：
Certificate
Contact
Details SPEC
Similar products

SMART SENSOR AS8906 Nitrogen dioxide Detector (diffusion type + pump suction type)SPEC

SMART SENSOR AS8906 Nitrogen dioxide Detector (diffusion type + pump suction type)Details

SMART SENSOR AS8906 Nitrogen dioxide Detector (diffusion type + pump suction type)Packing list

SKU
NB012859
Detect gas
NO2
Range
0~20ppm
resolution
1ppm
Sensors principle
electrochemistry
Low alarm point
Yes.
High alarm point
Yes.
alarm value setting
Yes.
Alarm mode
Sound, light, vibration
Operating temperature
-10~50℃
Environmental humidity
15~95%RH
Power Supply
3.7V lithium battery
Weight
200g
Dimension
120.2*64.5*38.3mm
AS8906
Nitrogen dioxide Detector (diffusion type + pump suction type)
SMART SENSOR AS8906 Nitrogen Dioxide Detector, Diffusion + Pump Suction Picture

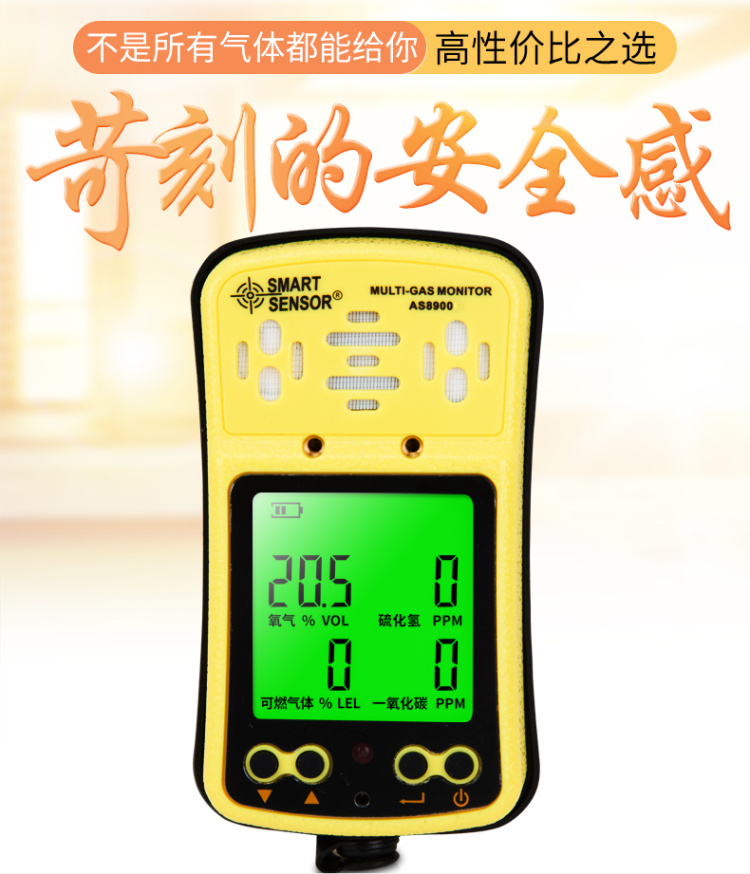

AS8905, Sulfur Dioxide Detector (Diffusion + Suction Type) Introduction

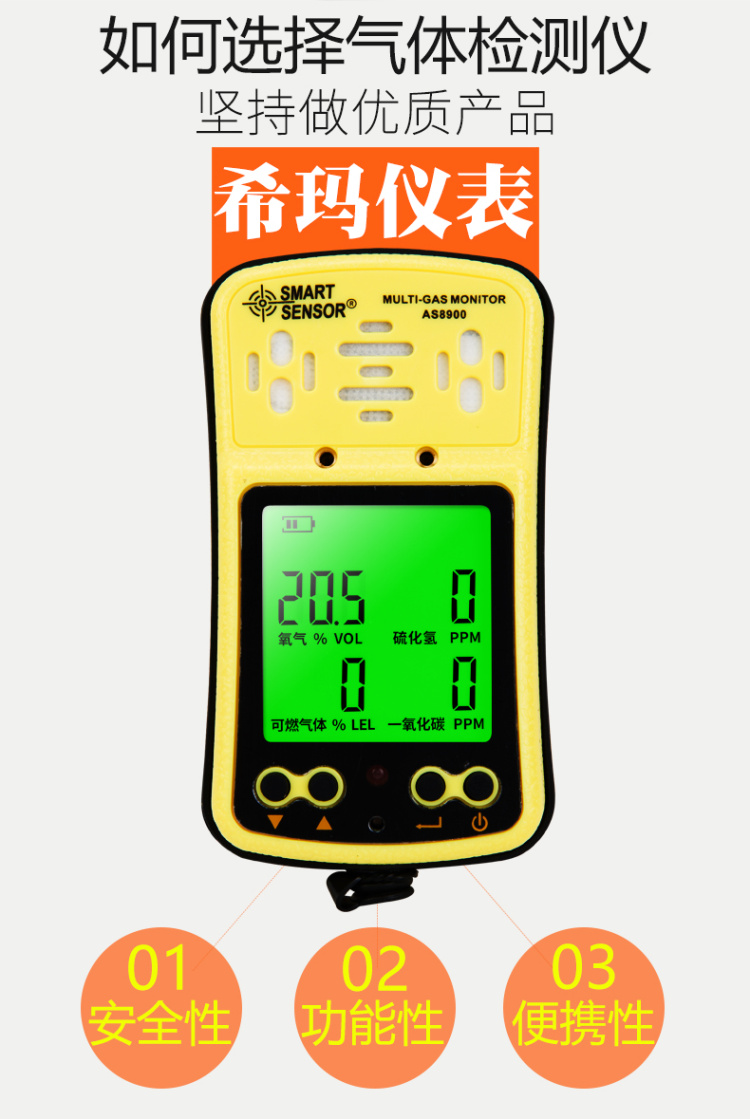

AS8905, Sulfur Dioxide Detector (Diffusion + Suction Type) Product Features

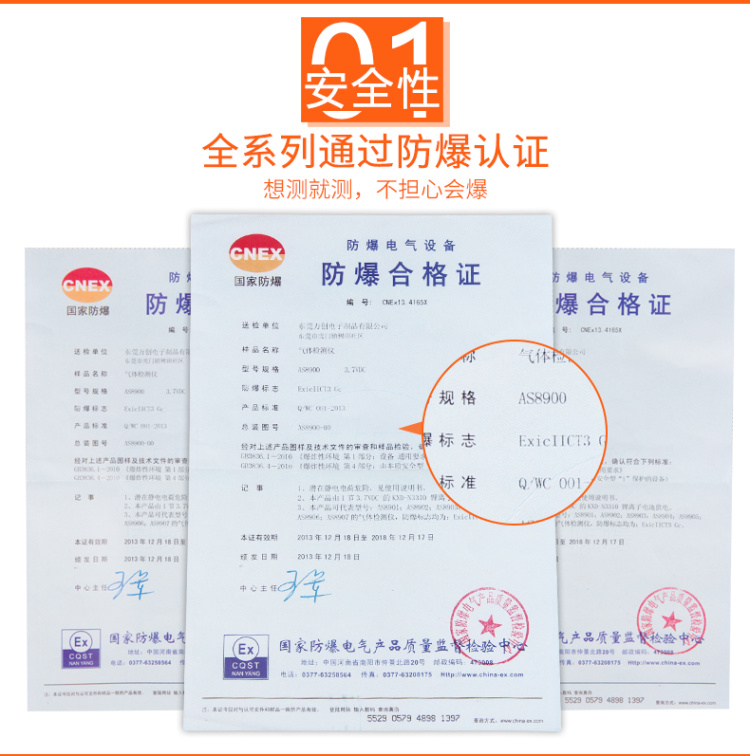

AS8905, Sulfur Dioxide Detector (Diffusion + Suction Type) Product Feature 1

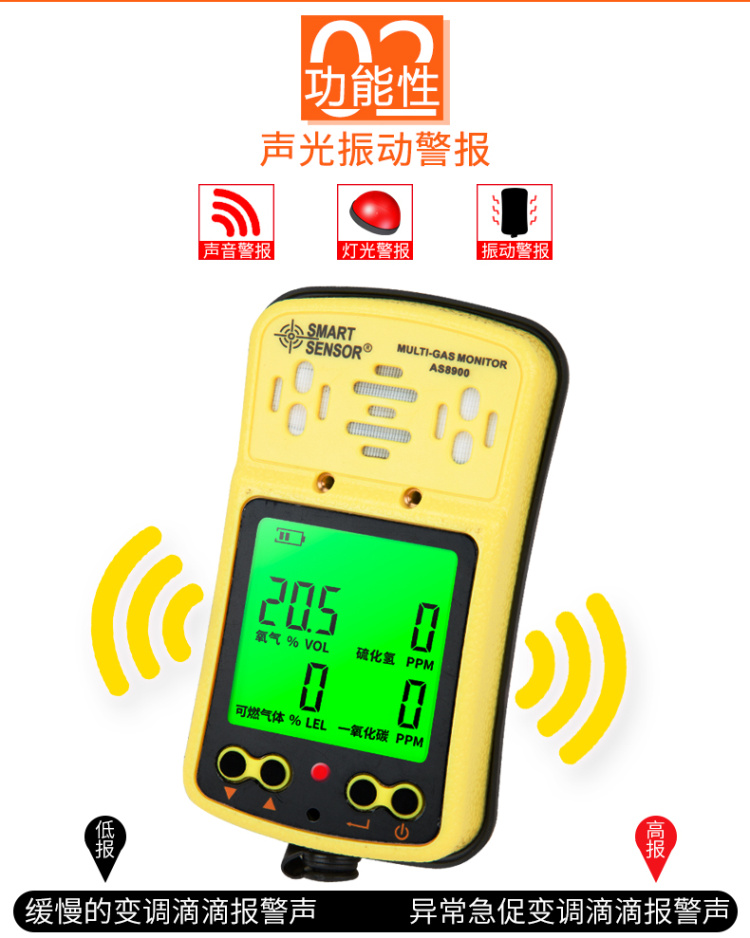

AS8905, Sulfur Dioxide Detector (Diffusion + Suction Type) Product Feature 2

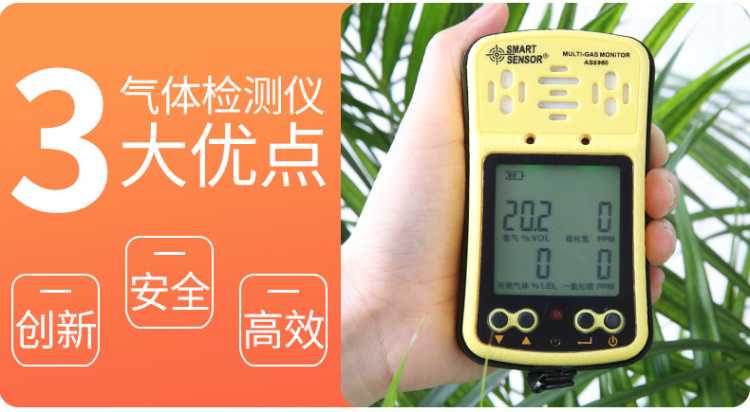

AS8905, Sulfur Dioxide Detector (Diffusion + Suction Type) Product Feature 3

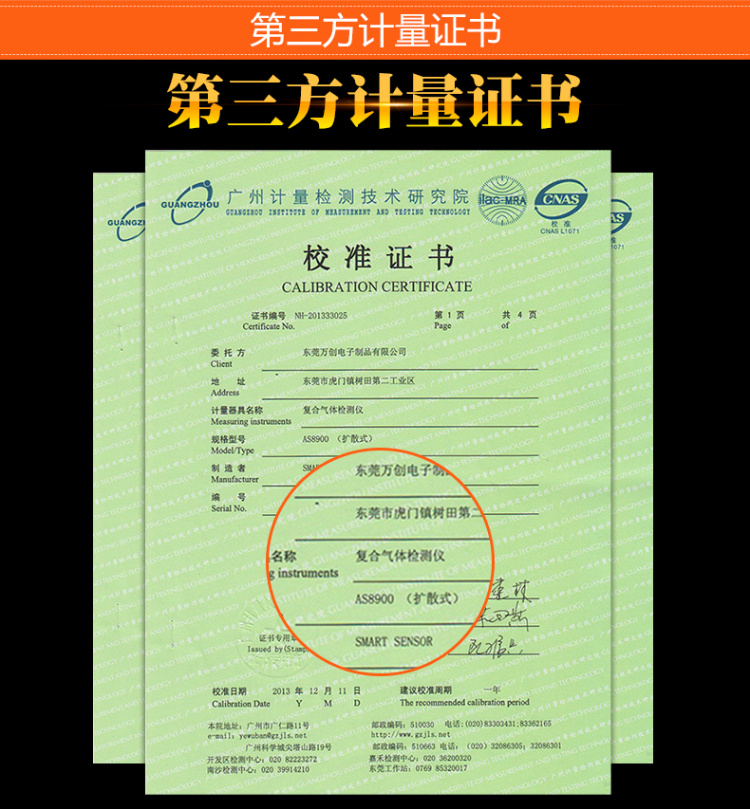

AS8905, Sulfur Dioxide Detector (Diffusion + Suction Type) Calibration Certificate

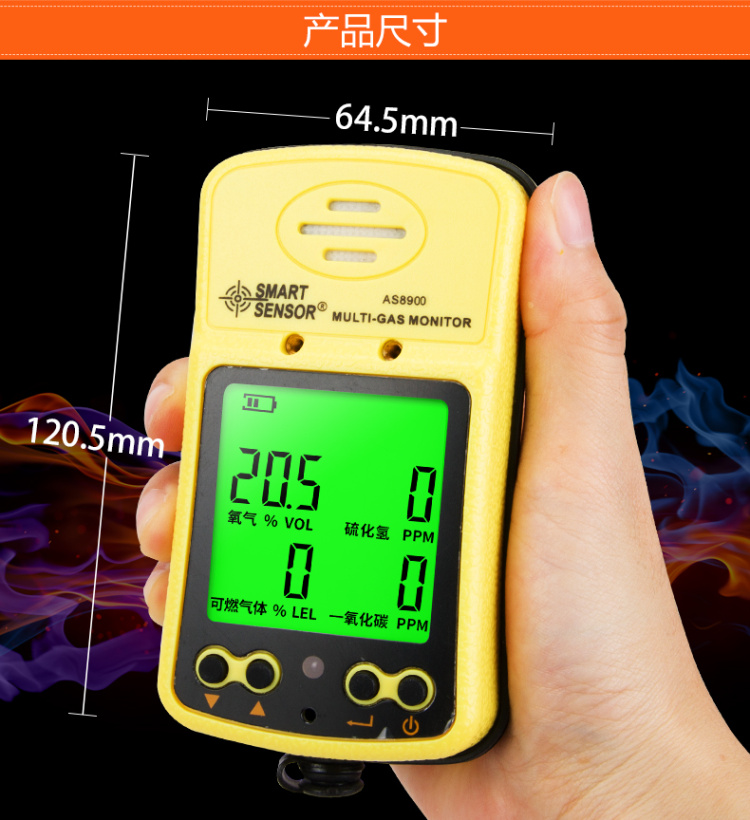

AS8905, Sulfur Dioxide Detector (Diffusion + Suction Type) Product Dimensions

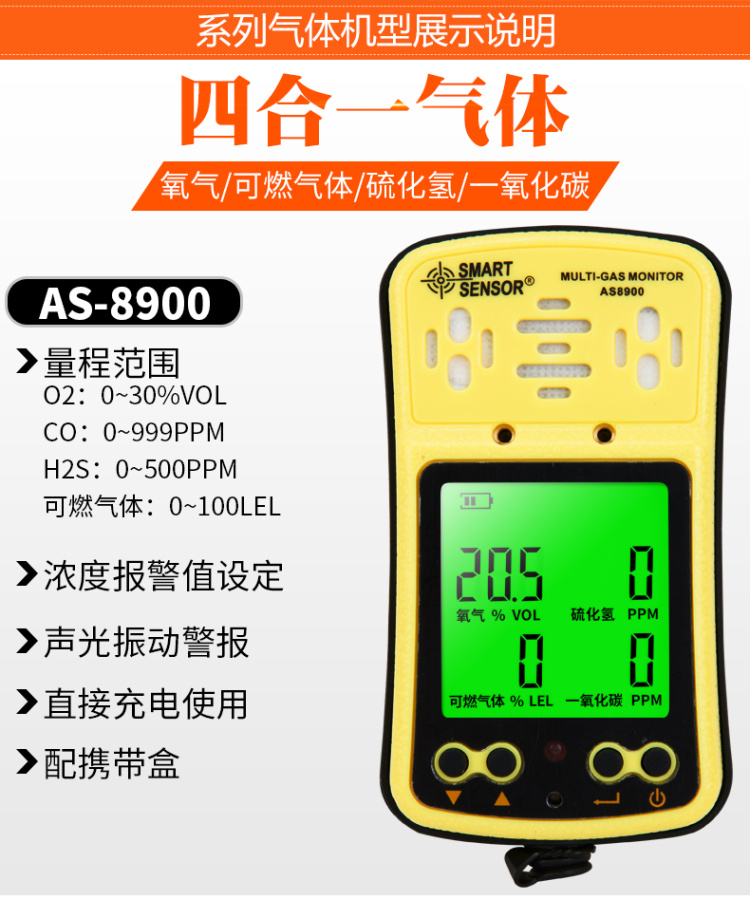

Illustration of the AS8900

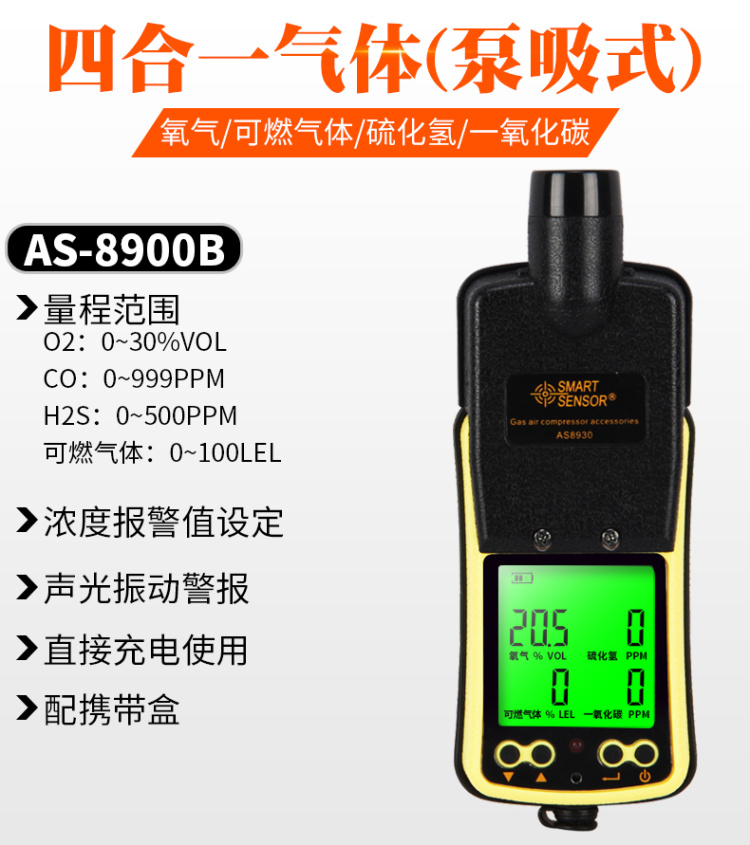

AS8900B display diagram

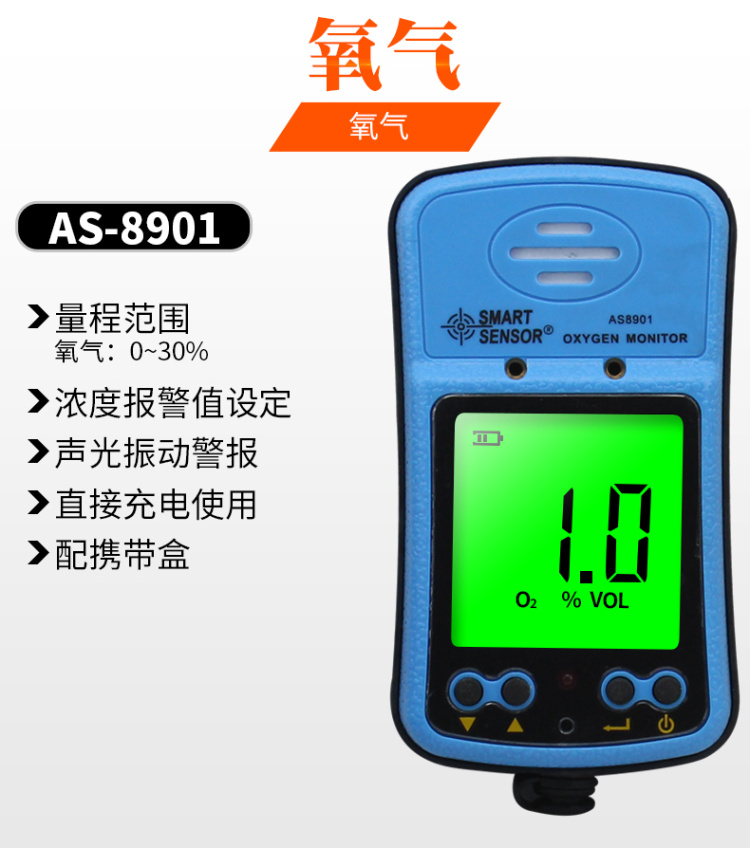

Illustration of AS8901

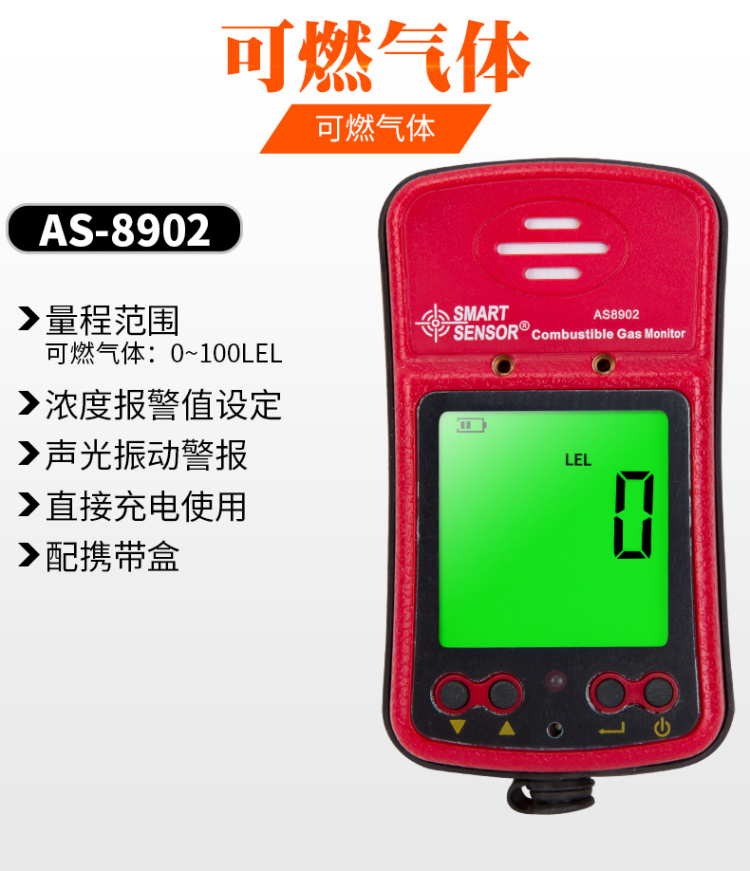

AS8902 Illustration

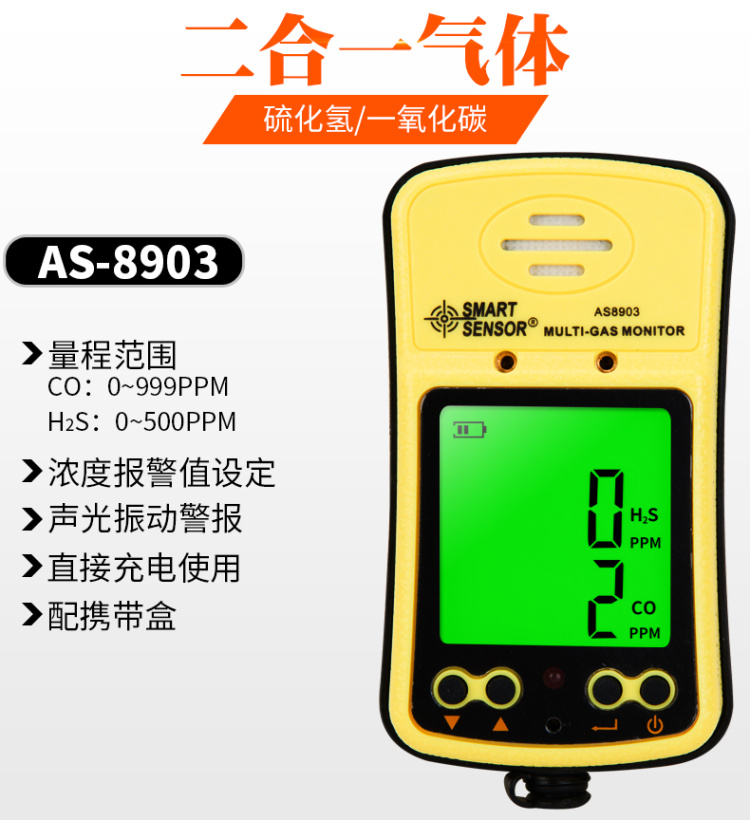

Illustration of the AS8903

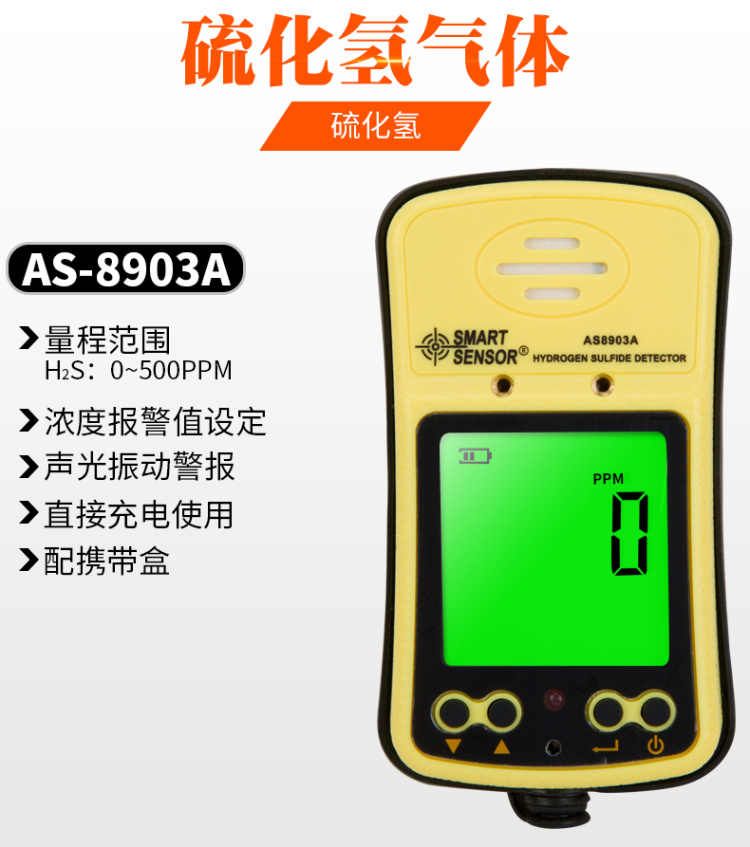

AS8903A display diagram

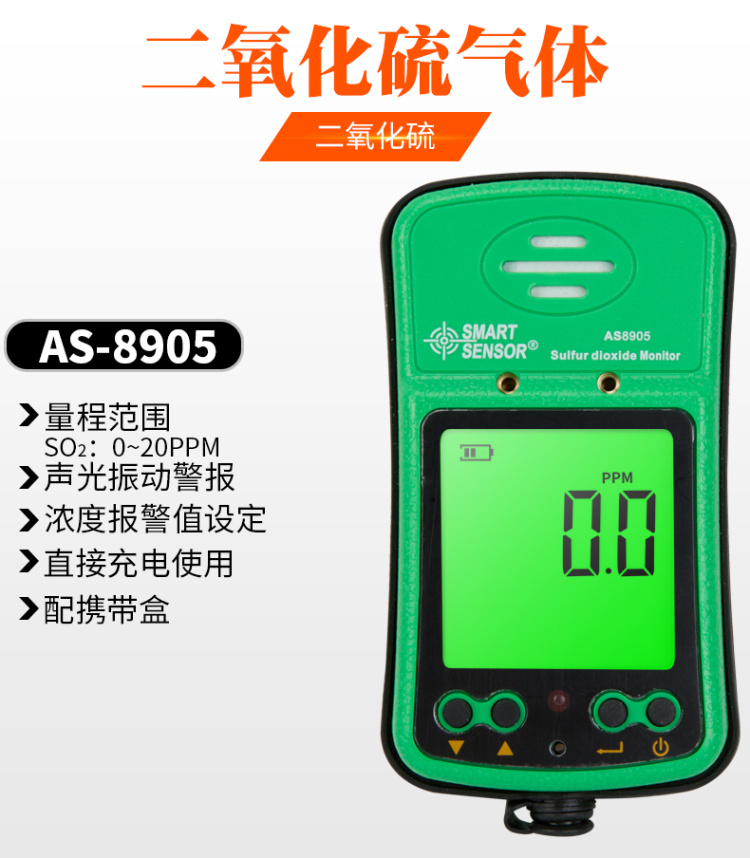

Illustration of the AS8905

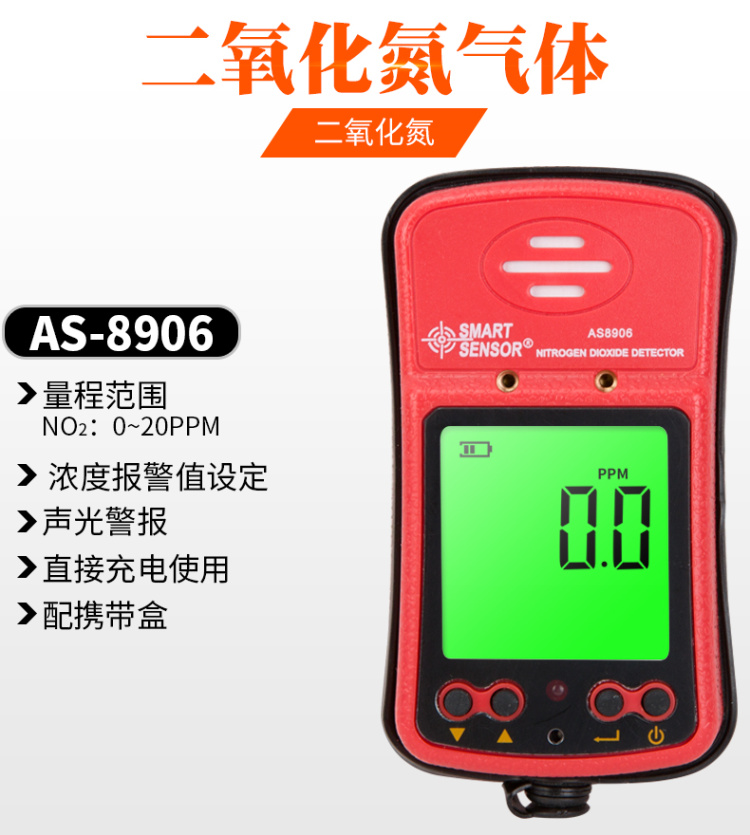

AS8906 Showcase

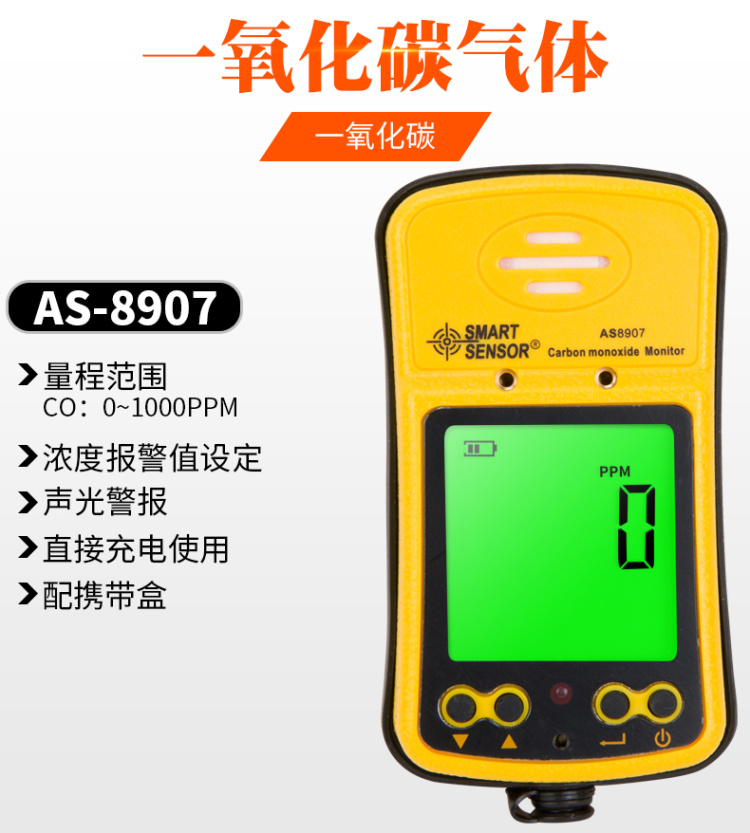

AS8907 showcase

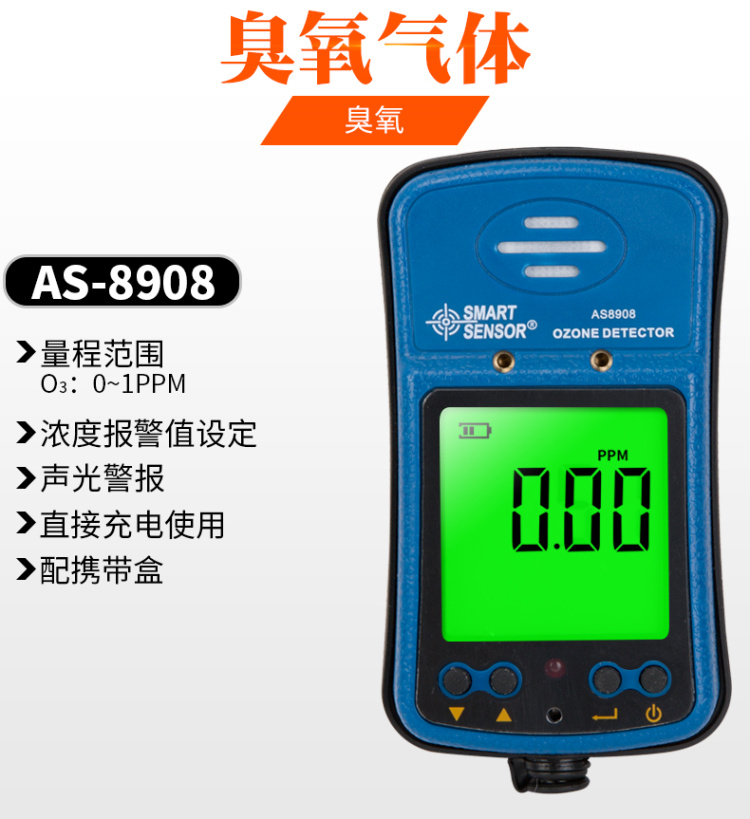

AS8908 showcase

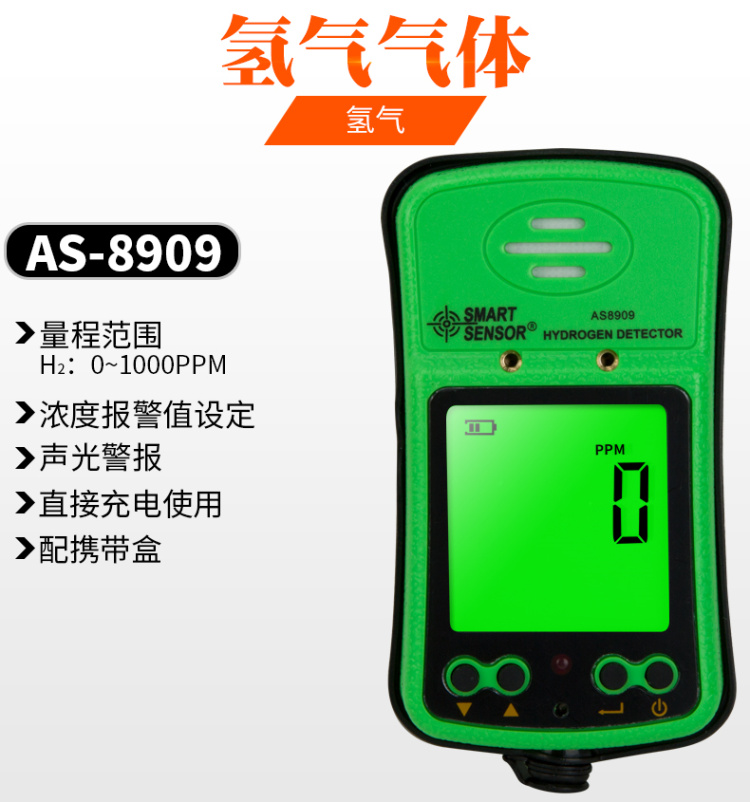

Illustration of AS8909

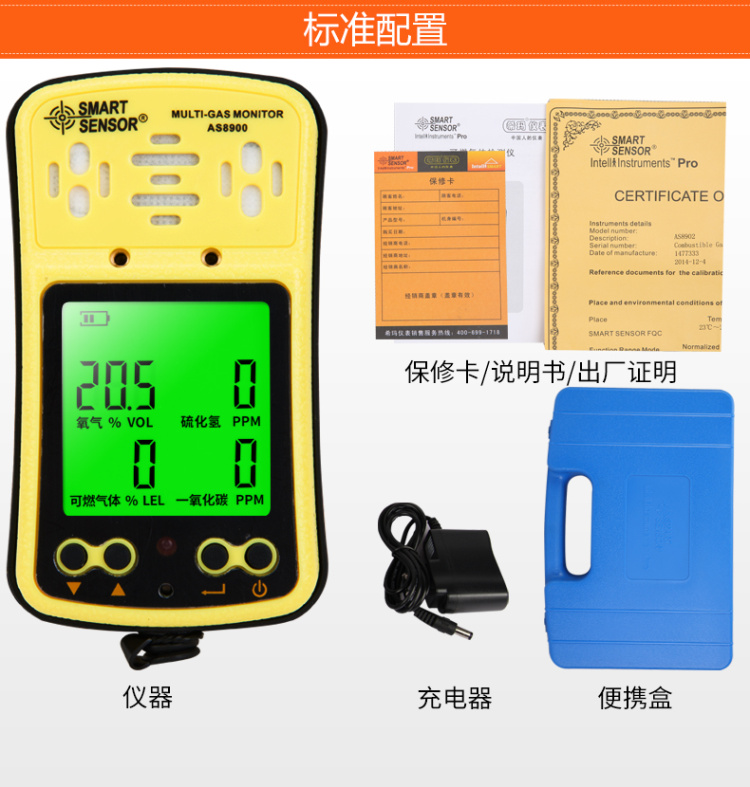

Standard on the AS890 series


FAQ
QAS8906 Nitrogen Dioxide Detector Sensors principle is electrochemistry?
A Yes, this Gas detector uses the principle of electrochemistry. Detect gas NO2
