China

MODERNER XD-1810 Powder test tinplate, size 50 × 120x0.28mm rounded corner punching

MODERNER XD-1810 Tested Tackle iron plate with rounded corners and holes in accordance with GB2520 standard Tackle iron plate, XD-1810 size is 50 × 120mm, thickness is 0.28mm, 100 pieces per pack, 5 packs MOQ. Can be used for various Coatings/powder coatings and other testing coating performance
Model：
Certificate
Contact
Details SPEC

Moderner XD-1810 TinplateSPEC

Moderner XD-1810 TinplateDetails

Moderner XD-1810 TinplatePacking list

SKU
NB012899
Length (mm)
120
Width (mm)
50
Thickness (mm)
0.28
corner shape
rounded corners
Whether to punch holes
Yes
round hole diameter
7mm
raw material
Baosteel
Tin plating amount
E4
Hardness
T52
meet the standard
GB 2520
Encasement
100 pieces/pack
XD-1810
Tinplate
MODERNER XD-1810 Powder test tinplate, size 50 × 120x0.28mm rounded corner punching Picture

Introduction

When testing the performance of almost all industrial coatings (adhesion, hardness, impact, flexibility, bending, drying time), the coating film is required to be prepared on a tinplate plate, and the amount of tin plating, hardness and surface treatment on the tinplate surface are the factors that most affect the test results. major factor;

The parameters of tinplate in MODERNER are in line with GB 2520; the tin plating amount is E4, the hardness grade is T52, and the thickness is 0.28mm.

MODERNER XD-1810 tinplate sheets come in packages of 100, with a minimum order of 5 packages.

plan

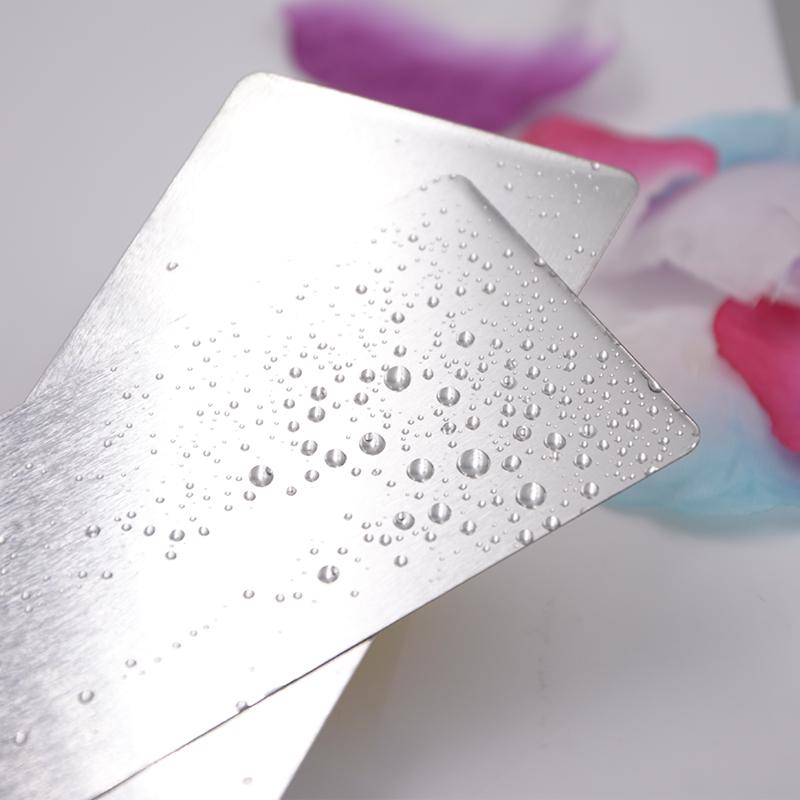

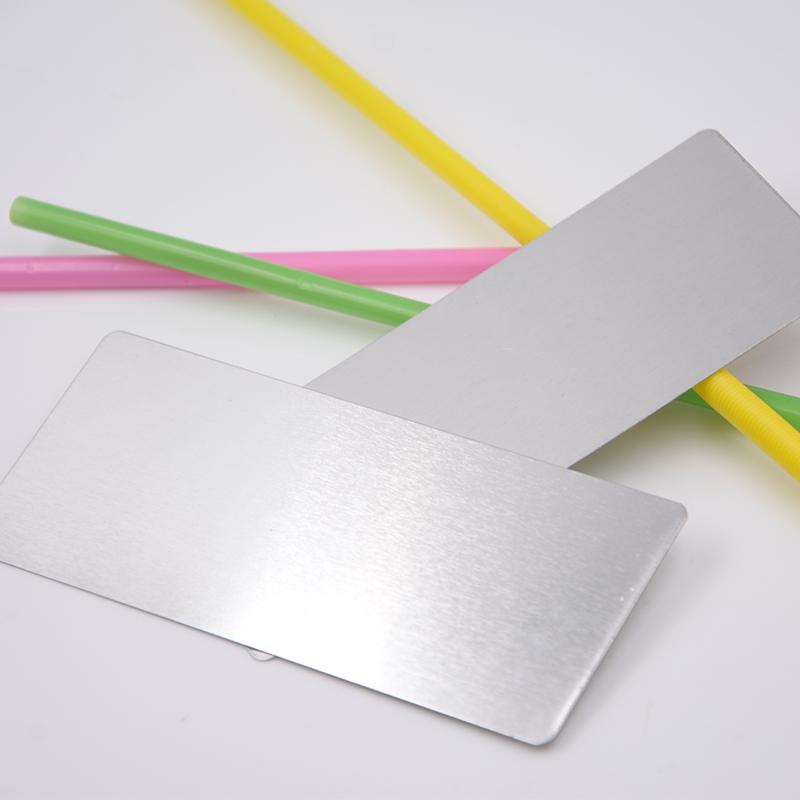

MODERNER XD-1810 test tin plate display

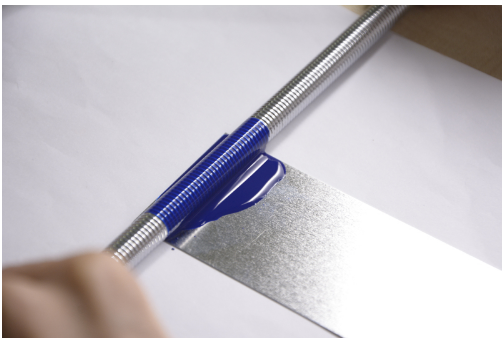

MODERNER XD-1810 test tinplate plate test picture 1

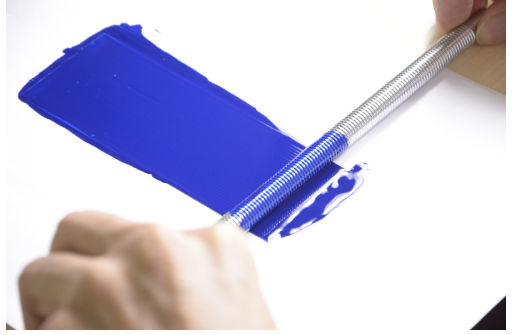

MODERNER XD-1810 test tinplate plate test picture 2

FAQ
QI used it to do the water immersion test of amino paint. Is this specification suitable?
A 120 * 50mm size tinplate for water immersion experiment of alkyd and amino paint, suitable
QIs there a GB/T9779 standard tinplate?
A This MODERNER tinplate will do!
Standard
