MODERNER XD-1811 test tinplate, size 70 × 150x0.28mm rounded corner punching

The size of the MODERNER XD-1811 test tinplate is 70 × 150mm and the thickness is 0.28mm. The XD-1811 test-grade tinplate is rounded with holes, 100 pieces per pack, and the minimum order is 5 packs.
Model：
Certificate
Contact
Details SPEC

Moderner XD-1811 TinplateSPEC

Moderner XD-1811 TinplateDetails

Moderner XD-1811 TinplatePacking list

SKU
NB012900
Length (mm)
150
Width (mm)
70
Thickness (mm)
0.28
corner shape
rounded corners
Whether to punch holes
Yes
round hole diameter
7mm
raw material
Baosteel
Tin plating amount
E4
Hardness
T52
meet the standard
GB 2520
Encasement
100 pieces/pack
XD-1811
Tinplate
MODERNER XD-1811 test tinplate, size 70 × 150x0.28mm rounded corner punching Picture

Introduction

When testing the performance of almost all industrial coatings (adhesion, hardness, impact, flexibility, bending, drying time), the coating film is required to be prepared on a tinplate plate, and the amount of tin plating, hardness and surface treatment on the tinplate surface are the factors that most affect the test results. major factor;

The parameters of tinplate in MODERNER are in line with GB 2520; the tin plating amount is E4, the hardness grade is T52, and the thickness is 0.28mm.

MODERNER

plan

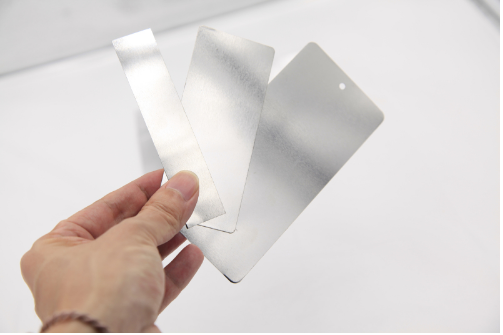

MODERNER XD-1811 test tin plate display

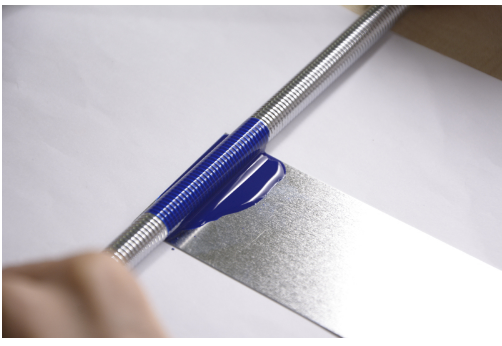

MODERNER XD-1811 test tinplate plate test picture 1

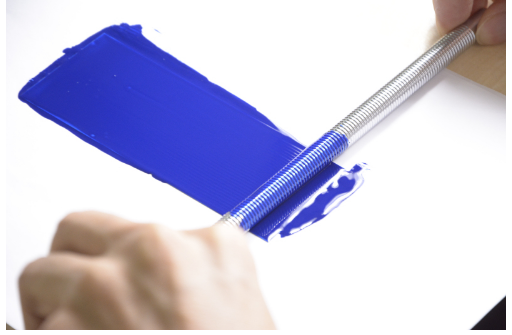

MODERNER XD-1811 test tinplate plate test picture 2

FAQ
QHelp me find a tinplate that meets the GB14907 standard
A This XD-1811 tinplate will do!
