RDS 17 #3/8 "ink scraper bar inks Wire-wound drawdown Bar WFT is 38.9μm

SE
Imported from the United States, can be prepared 38.9 μm Film thickness wet-film, imported stainless steel material, the main rod diameter is 9.5mm.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

RDS 17# 3/8" Applicator rod 3/8 "SPEC

RDS 17# 3/8" Applicator rod 3/8 "Details

RDS 17# 3/8" Applicator rod 3/8 "Packing list

SKU
NB012904
Production process
wire-wound
WFT
38.9μm
diameter
9.52mm
Total length
400mm
Wire diameter
0.43mm
application width
300mm
Grip Width
50mm
material
stainless steel
17# 3/8"
Applicator rod 3/8 "
Imported from the United States, can be prepared 38.9 μm Film thickness wet-film, imported stainless steel material, the main rod diameter is 9.5mm.

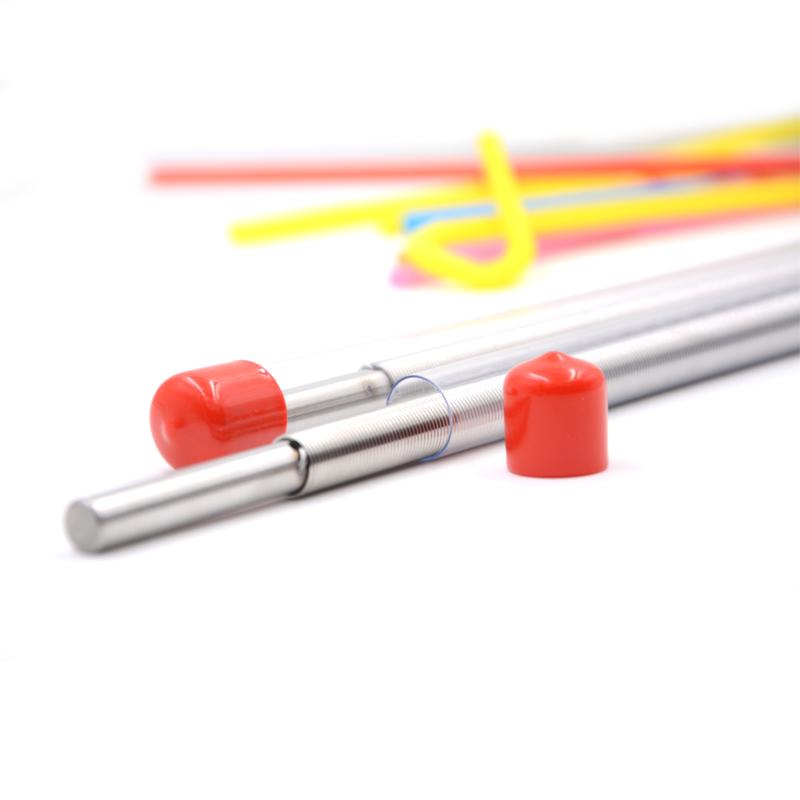

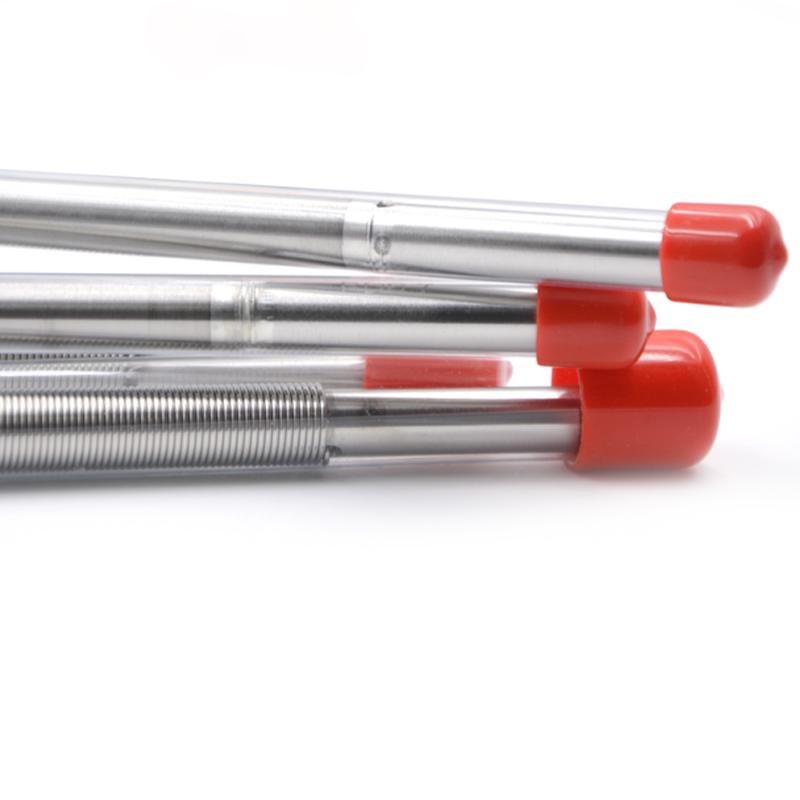

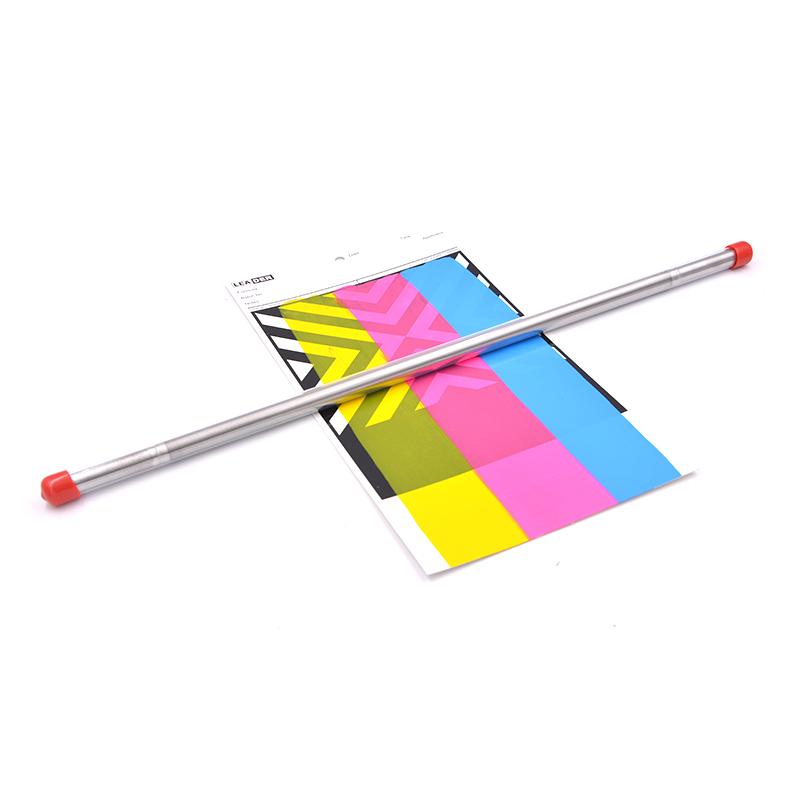

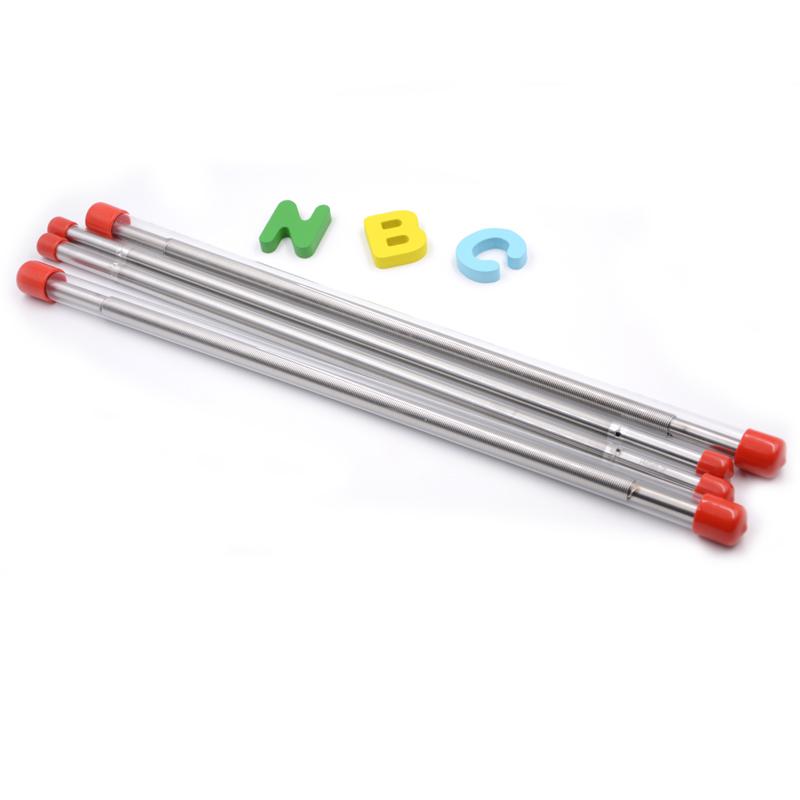

RDS 17 #3/8 "ink scraper bar inks Wire-wound drawdown Bar WFT is 38.9μm Picture

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10



FAQ
QDoes the RDS Applicator rod meet the ASTMD 4147 standard?
A The 17 #3/8 "Applicator rod can refer to
QAmerican scraping ink Mayer-Rod to scrape 39 micron Film thickness to choose which one is suitable?
A Hello, the American scraper Mayer-Rod is an American RDS, and the Film thickness of the No. 17 stick Spreader is 38.9 microns, which can be selected.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
