Yongchao D10-YC006-L240mm Experimental Coating Metering rod coating bar

Yongchao D10-YC006-L240mm Experimental Coating Metering rod is a precision Moulding bar in CHINA laboratory, which can be used for precise and quantitative preparation film laminating experiments such as pulp and paper, Spinning & weaving, coatings, leather, Optical inspection films, Encasement materials and polymer materials.
Certificate

yongchaoMT D10-YC006-L240mm Coating Metering rodSPEC

yongchaoMT D10-YC006-L240mm Coating Metering rodDetails

yongchaoMT D10-YC006-L240mm Coating Metering rodPacking list

SKU
NB012932
Production process
formed
WFT
6μm
diameter
10mm
Total length
240mm
application width
210mm
Grip Width
15+15mm
material
304 stainless steel
D10-YC006-L240mm
Coating Metering rod

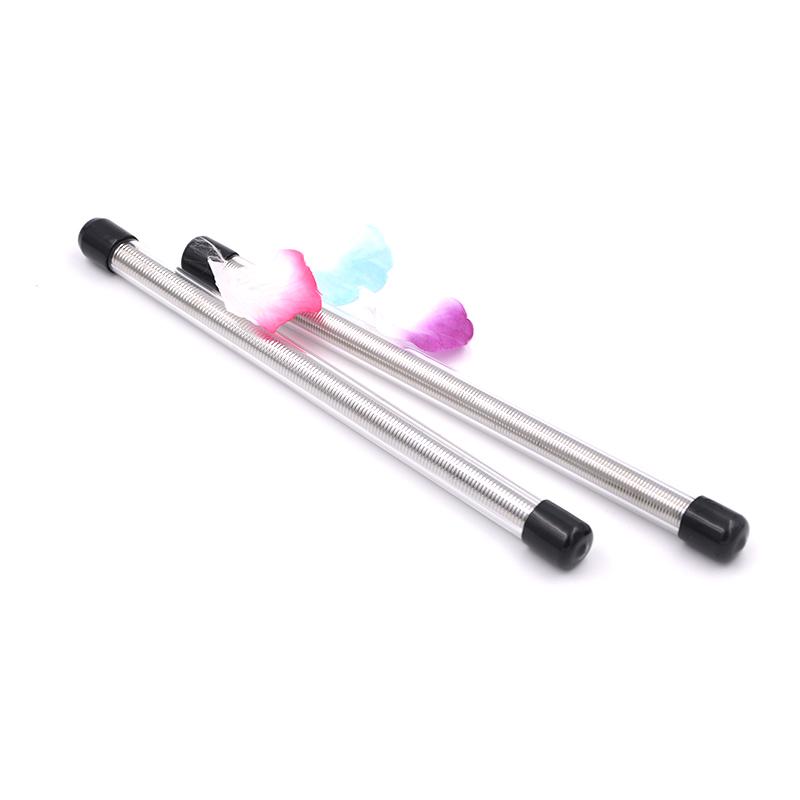

Yongchao D10-YC006-L240mm Experimental Coating Metering rod coating bar Picture


The traditional wire rod is wound on the surface of the steel rod to coat the fine steel wire, the thin steel wire on the surface is not only easy to loosen and break, not easy to clean, and can not be coated with ultra-thin film, Yongchao YC series wire bar is the use of precision mold using cold extrusion processing technology on the surface of the steel rod to process the concave and convex wavy curve, which has the same coating effect as the traditional wire rod. However, since there is no thin steel wire wound on the surface, there is no worry about the wire loosening and breaking. And the surface curve is smooth and easy to clean. The surface of the wire rod is also coated with hard chromium with a hardness of up to 1300HV, which can greatly improve its wear resistance and service life.



Optional

实验涂膜测试卡纸

压印床涂布台

Laboratory small automatic Film Applicator

FAQ
QDo you have the Spreader Metering rod required in the GB/T26461 standard?
A This D10-YC006-L240mm Spreader Metering rod will do.
QThe solid content of the paint is 42%. If you want to scrape the ink and dry 3 microns, can this be done?
A Can be done
