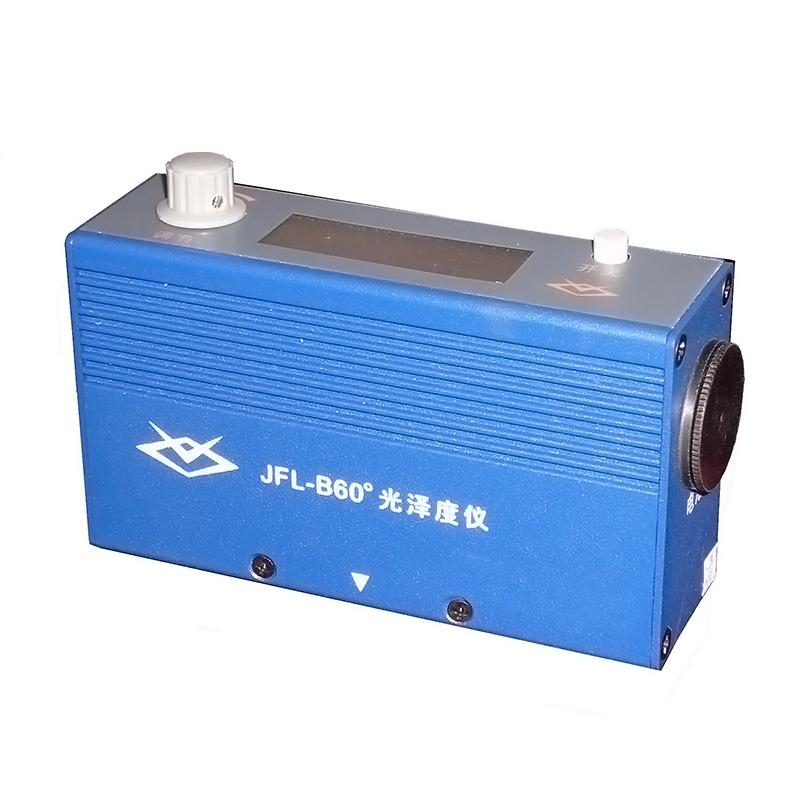

Surface Glossmeter JFL-B60 (ordinary metal shell) JFL 60 ° Measurement angle

JFL-B60 (ordinary metal shell)

Glossmeter

Introduction

JFL JFL-B60 (ordinary metal shell) surface gloss meter is a surface gloss meter with a measurement projection angle of 60° and a metal shell. The measurement range is 0.0~199.0Gs. The JFL-B60 Surface Gloss Meter is powered by a No. 5 battery. The body is small and easy to carry. It is designed according to domestic (CN) and foreign standards for measuring paint, plastic, printing, plate, ceramics, metal, paper, etc. surface gloss.

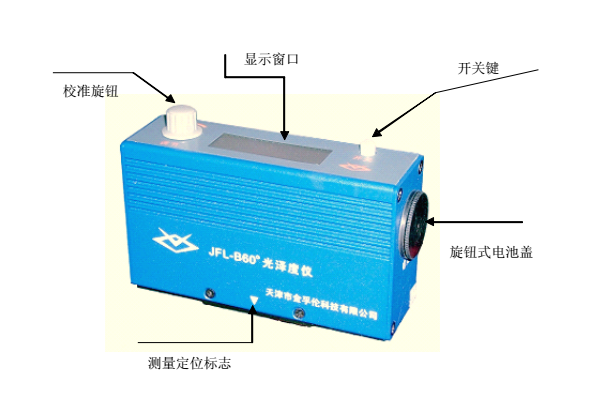

product structure

operation method

Press the switch, put the JFL-B60 (ordinary metal shell) surface gloss meter on the black glass standard plate, and turn the adjusting knob to make the displayed value the same as the nominal value of the standard plate. Then put the JFL-B60 surface gloss meter on the white ceramic standard plate, and the error between the displayed value and the nominal value of the white ceramic standard plate should not be greater than ±1.2 gloss units, otherwise, the standard plate is dirty and other problems should be considered. This process does not have to be done every time. When the error is out of tolerance, calibrate according to the above method. JFL-B60 Surface Gloss Meter can measure samples after calibration, when the measured value exceeds 199.9 gloss units, it will display overflow "1".

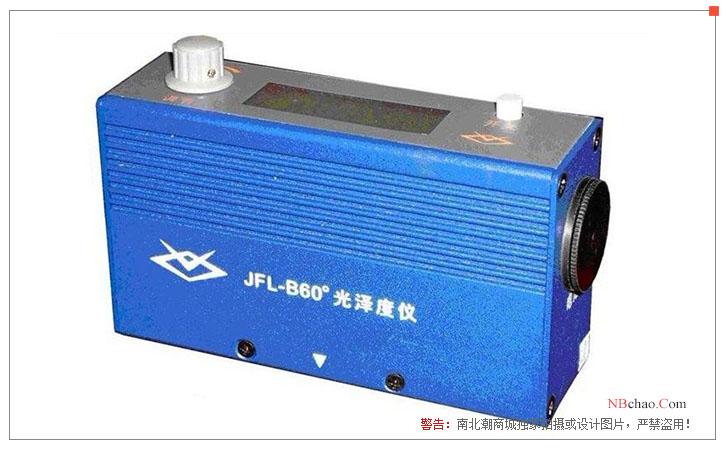

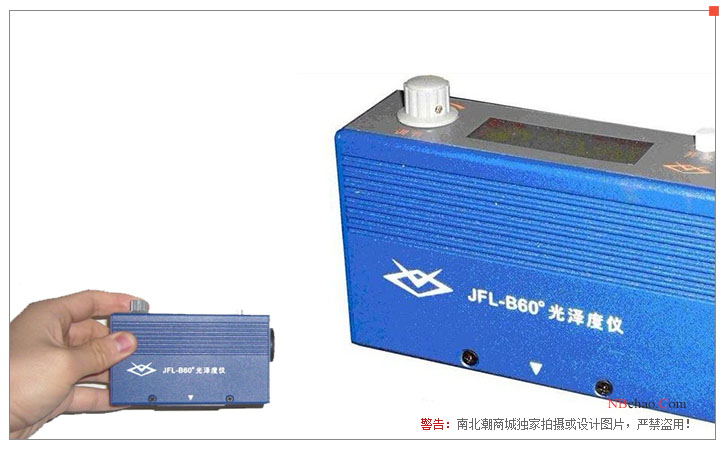

Pictures

Packing list：host (including battery) x1, standard board (including blackboard, whiteboard) x1, manual x1, product certificate x1, instrument case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
