Portable Glossmeter JFL-BZ206085 (portable three-angle smart) JFL

JFL-BZ206085 (portable three angle smart)

Glossmeter

Introduction

JFL JFL-BZ206085 Portable Gloss Meter is an intelligent portable gloss meter with three measurement projection angles of 20°, 60°, and 85°. It uses Ni-MH rechargeable battery to provide power, no need to replace the battery frequently, and the battery life is long. long. The measurement window of JFL-BZ206085 portable gloss meter is rectangular, and the display range is 0.0~300.0Gs. By using a single-chip microcomputer as the control processing element of the circuit, it is easy to use without recalibrating the nominal value when switching between different angles.

Application

JFL-BZ206085 Portable Gloss Meter Applications: paint, paint, ink, plastic, ceramics, stone, paper, metal, etc. It is very convenient for field operation and use in places without power supply.

operation method

1. Press the switch button of JFL-BZ206085 Portable Gloss Meter to enter the measurement mode.

2. Put the JFL-BZ206085 portable gloss meter on the sample, and the displayed value is the gloss value (Gs) of the sample at the working angle at this time.

3. When pressing the "angle/shift" key, switch between different angles for measurement, and the corresponding angle display light is on.

4. No matter which angle is used for measurement, when the measured value is greater than 300.0Gs, the word "OVER" will be displayed.

Precautions for use

When the power is insufficient, the word "bAtt" will be displayed. At this time, it should be charged with a special charging power supply in time. When charging, the charging indicator light on the panel is on, and the charging time is about four hours. Charging standard "⊕".

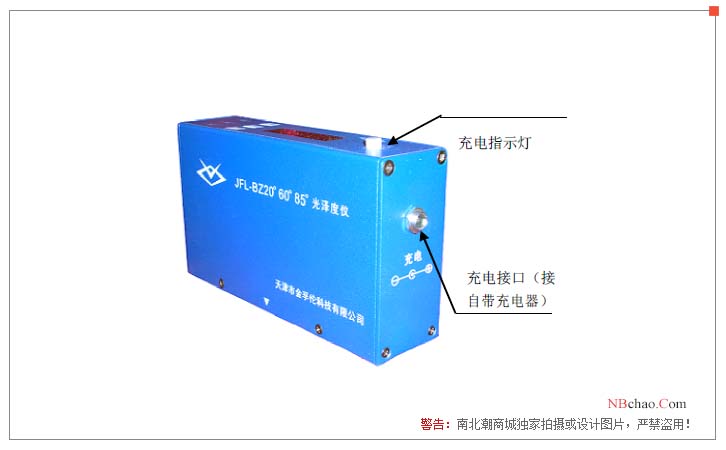

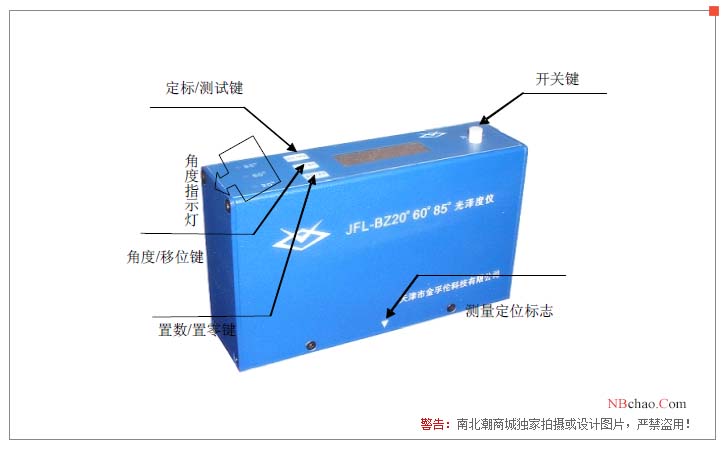

Product Structure

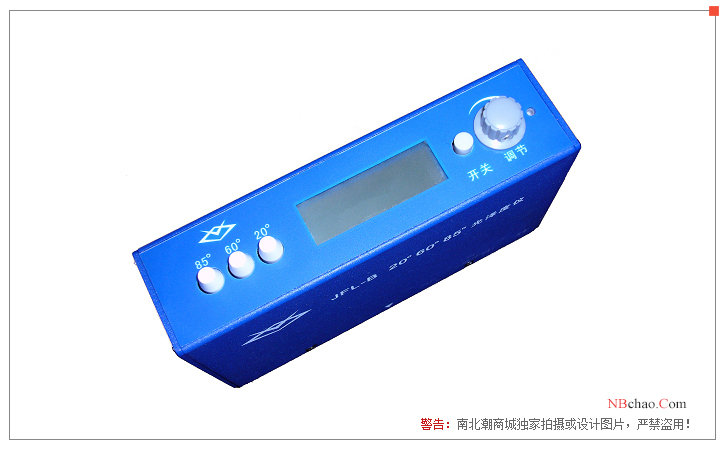

Pictures

Packing list：host (including rechargeable battery) x1, standard board (including blackboard, whiteboard) x1, zero board (black velvet on standard board box) x1, charger x1, manual x1, product certificate x1, instrument case x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
