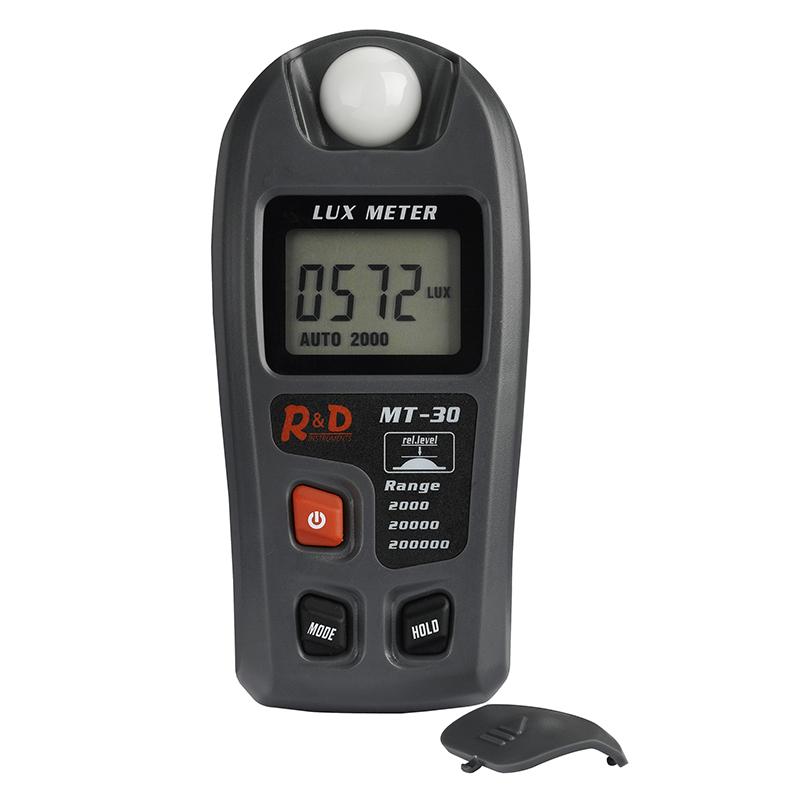

REDDRAGON MT-30 Digital luminometer Illumrination degree range 0.1~ 200000Lux

REDDRAGON MT-30 digital luminometer is a large LCD display, the sampling Frequency is 2 times/second, MT-30 digital luminometer can choose automatic/manual switching range, Measurement accuracy is +/- 4%.
Model：
Certificate
Contact
Details SPEC VIDEO OI
Similar products

Reddragon MT-30 Digital luminometerSPEC

Reddragon MT-30 Digital luminometerDetails

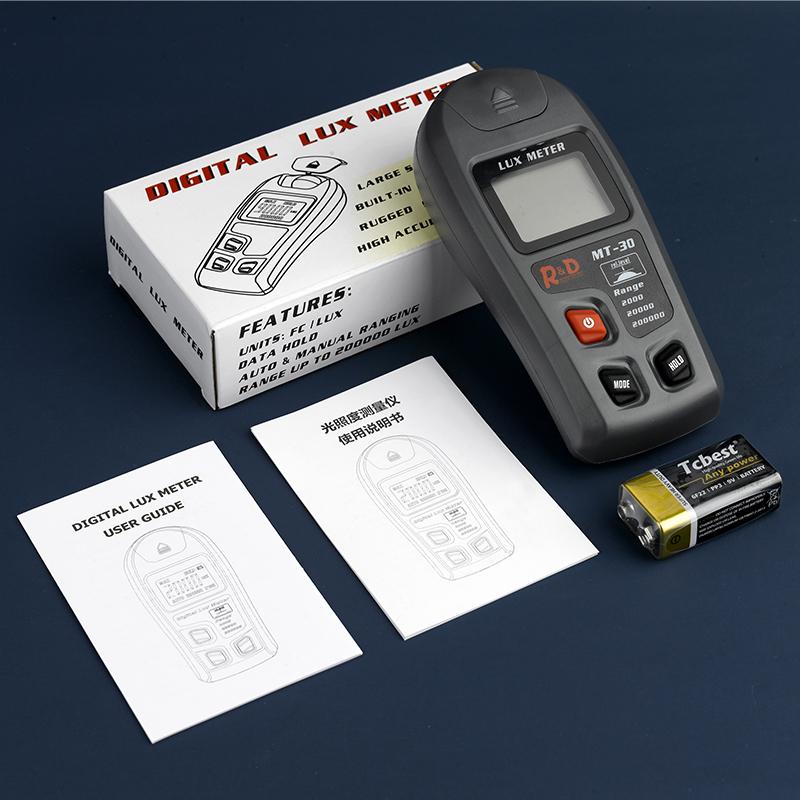

Reddragon MT-30 Digital luminometerPacking list

SKU
NB012991
Measurement range
0.1~200,000Lux，0.01~20,000Fc
Measurement unit
Lux: lux, Fc: ruler candle
Illumination Accuracy
±4%
Resolution
0.1Lux / 0.01Fc
Sampling rate
2 times/second
Operating temperature
14 to 122℉ (-10 to 50℃)
Operating humidity
10%~90%RH
Power Supply
9V battery
Host size
145*67*32mm
Instrument Weight
130g
Measurement principle
photodiode
MT-30
Digital luminometer
REDDRAGON MT-30 Digital luminometer Illumrination degree range 0.1~ 200000Lux Picture

Introduction

The MT-30 digital lux meter adopts a simple, easy-to-use, portable, large-range, high-precision design. This illuminance meter can be applied to factories, warehouses, schools, offices, homes, street lamp construction, laboratories and so on.

Product function introduction

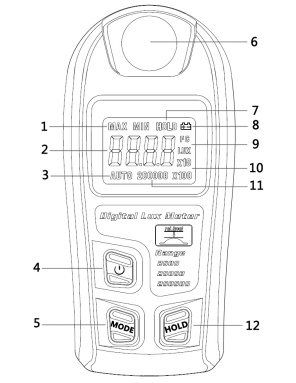

Red Dragon Meter MT-30 Digital Lux Meter Product Structure

1. MAX/MIN max/min measurement markers

2. Measurement reading display

3. AUTO automatically switches the range marker

4. Instrument power on/off button

5. Mode switch button, short press to switch unit, long press to switch normal/maximum/minimum mode

6. Illuminance sensor components

7. HOLD lock screen logo

8. Battery low Voltage identification

9. Illuminance unit, Lux: lux, Fc: ruler candle

10. The multiple of the reading, the displayed value X is the reading

11. Displays the current range

12. HOLD button, short press to lock the screen, long press to switch between automatic range and manual range

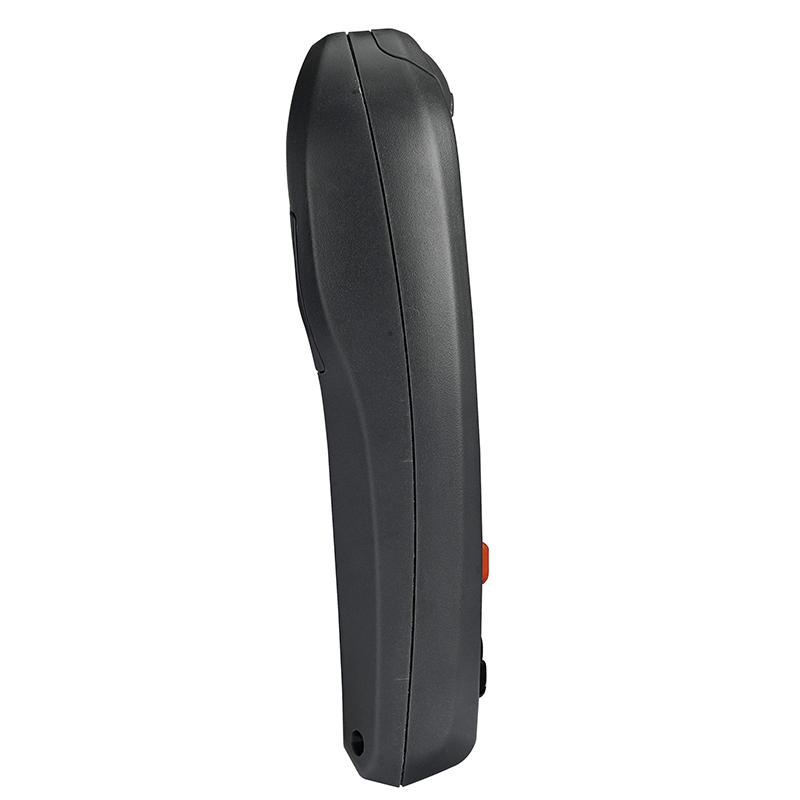

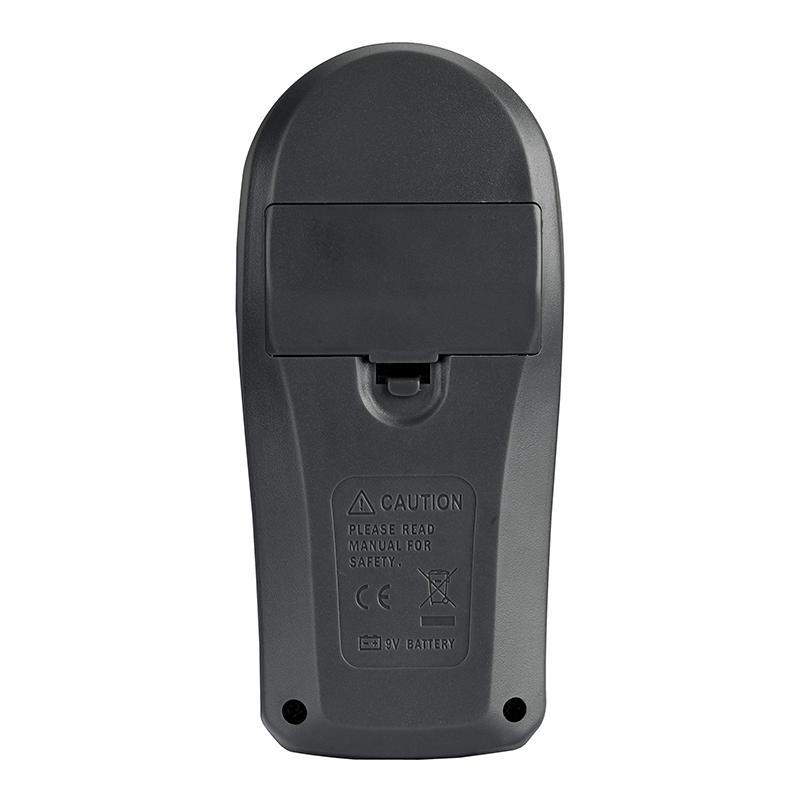

Product display

Red Dragon Meter MT-30 Digital Lux Meter Display Diagram

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
