United States

RDS 14 #3/8 "Mayer Rods WFT 32.0μm Length 400mm

SE
Wire-wound, wet film thickness 32.0 μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, hand width 50 + 50mm, material stainless steel, Wire diameter 0.36mm.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 14# 3/8" Applicator rod 3/8 "SPEC

RDS 14# 3/8" Applicator rod 3/8 "Details

RDS 14# 3/8" Applicator rod 3/8 "Packing list

SKU
NB000013
Production process
wire-wound
WFT
32.0μm
diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
Wire diameter
0.36mm
14# 3/8"
Applicator rod 3/8 "
Wire-wound, wet film thickness 32.0 μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, hand width 50 + 50mm, material stainless steel, Wire diameter 0.36mm.

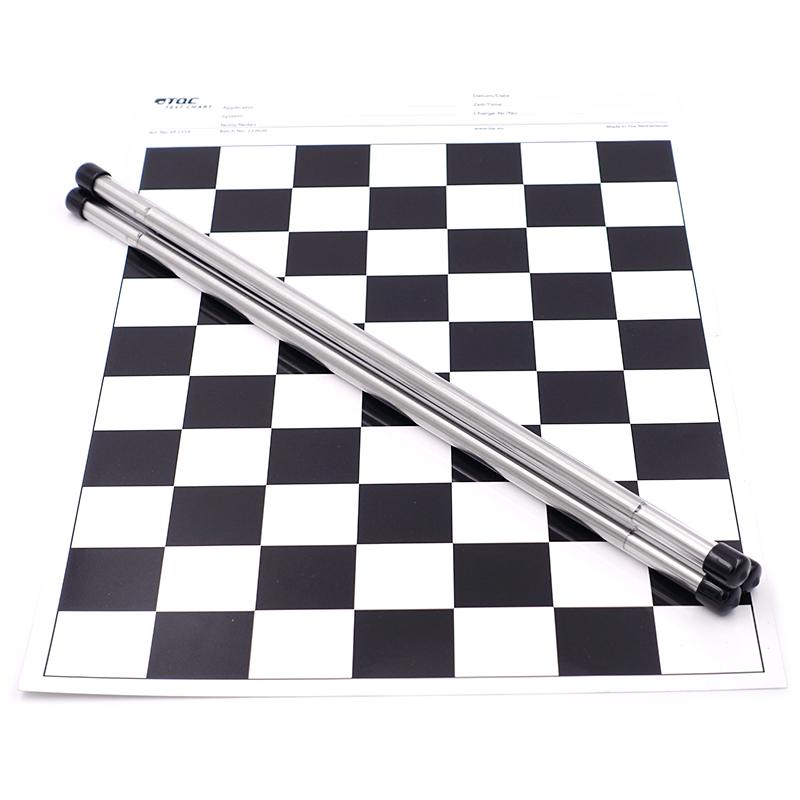

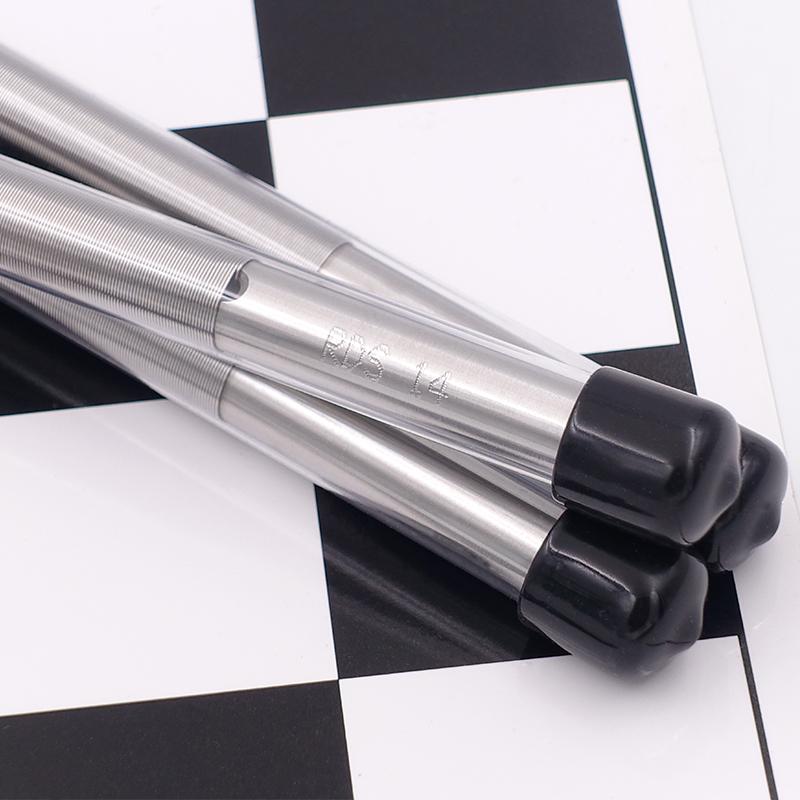

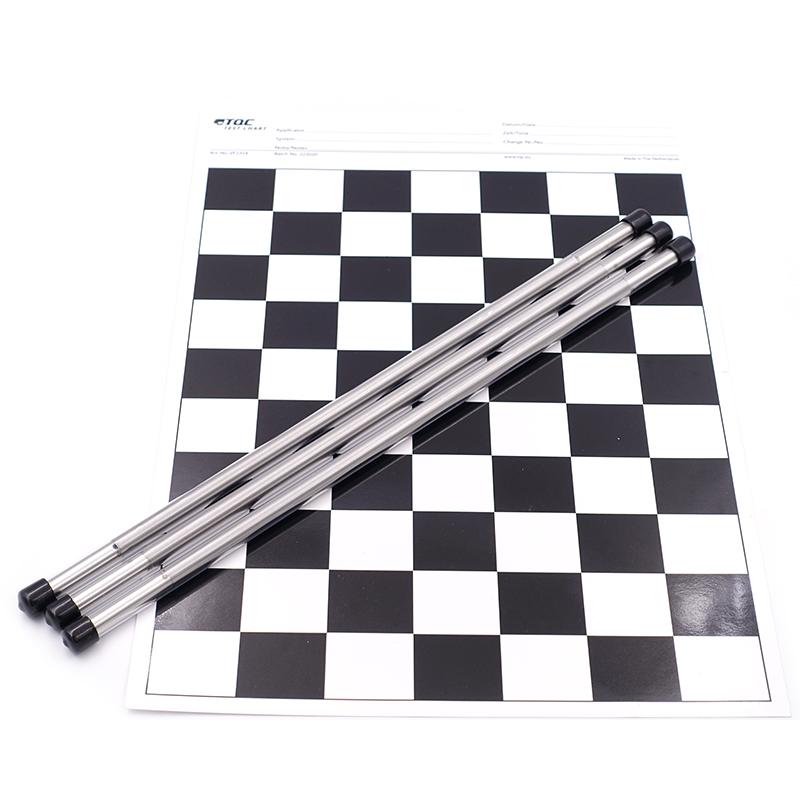

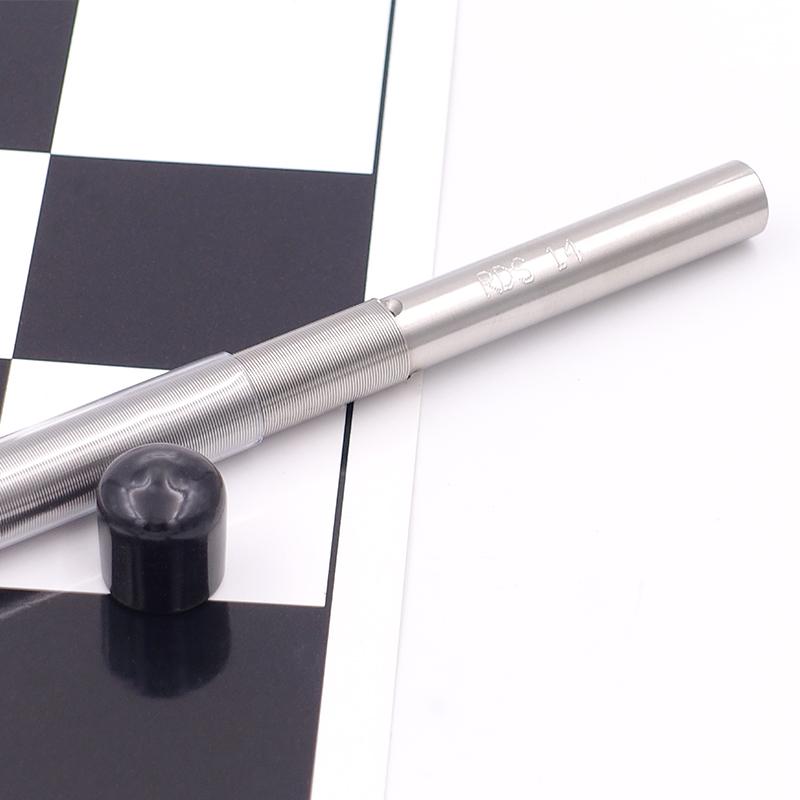

RDS 14 #3/8 "Mayer Rods WFT 32.0μm Length 400mm Picture
RDS model tableRDS wire rod experiment reportCoating Knowledge Collection


The wet film thickness of the U.S. RDS#14 wire bar applicator film is 32 microns, the coating width is 400mm, and there are 5cm long handle parts at both ends. The RDS wire Bar Coater is not only suitable for general flat substrates, but also can coat uniform wet films on substrates that are prone to curling and protrusions, such as paper, foil, etc. RDS wire rod coater has 49 models from 2 to 95, which can coat wet film with different thickness. Users can choose the appropriate coating rod according to the wet film thickness, or use the wet film calculator professionally developed by NBCHAO Mall Calculate the wet film thickness and select the appropriate rod size.

RDS coating Rods Figure 1

RDS coating Rods Figure 2

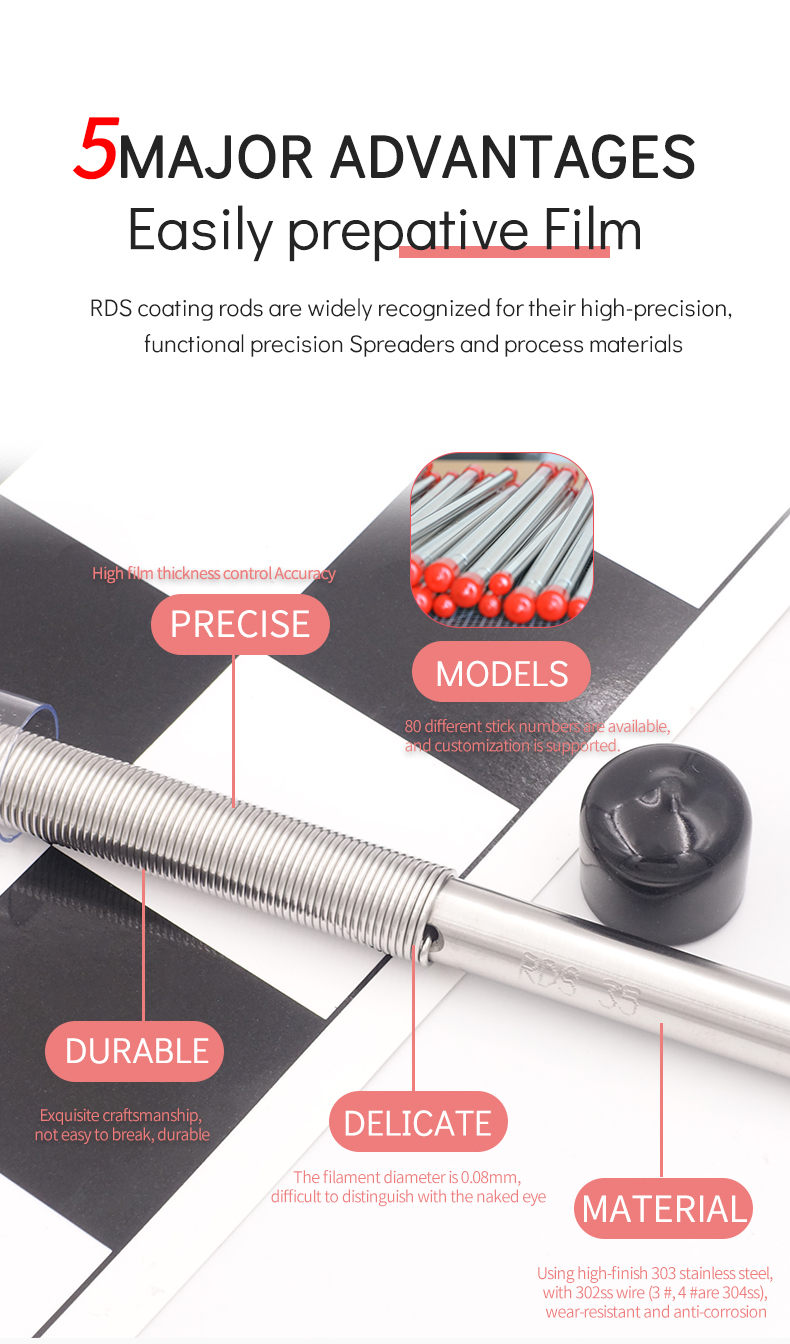

RDS coating Rods Figure 3

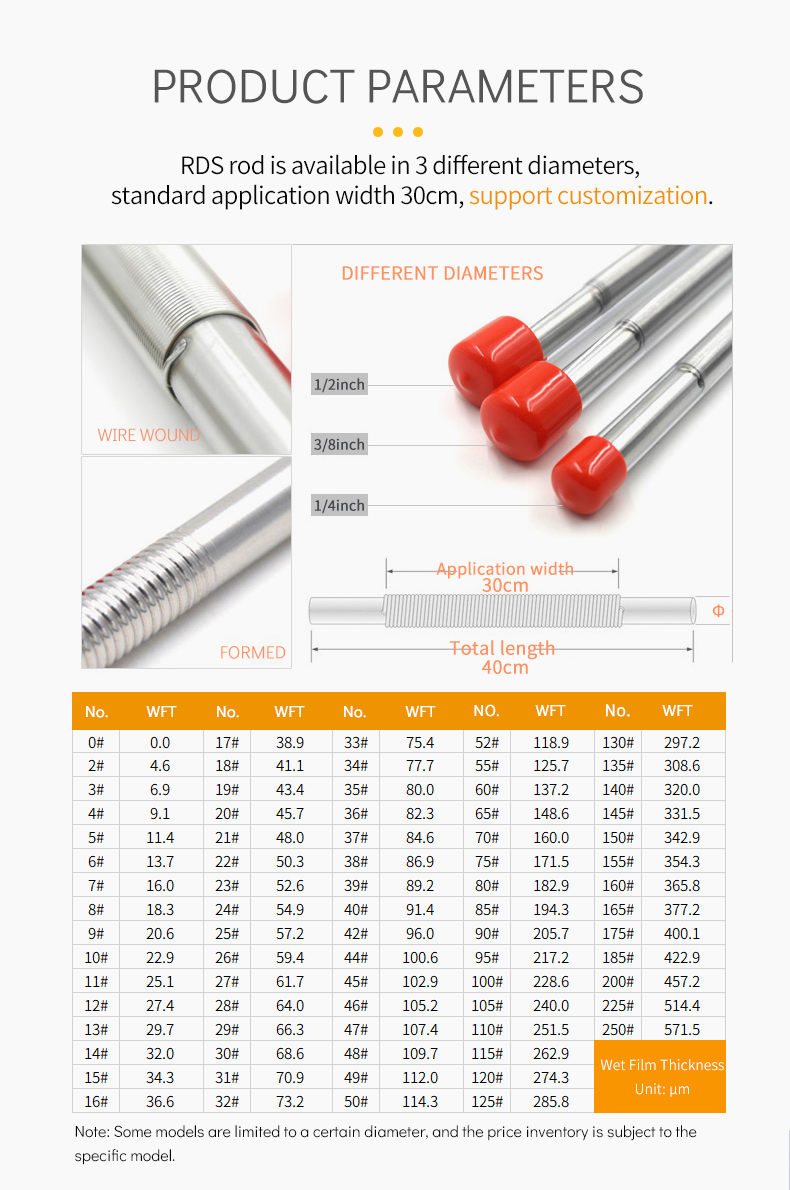

RDS coating Rods Figure 4

RDS coating Rods Figure 5

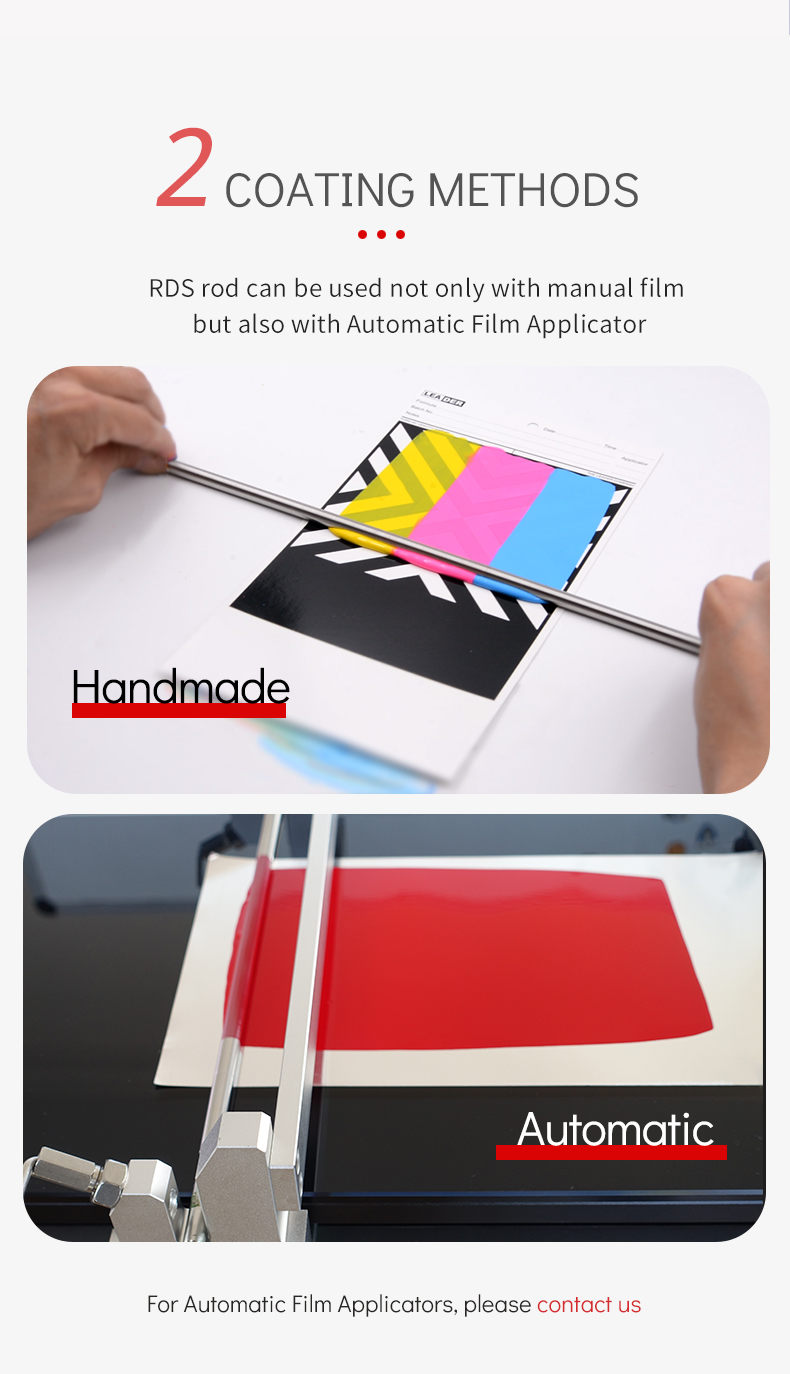

RDS coating Rods Figure 6

RDS coating Rods Figure 7

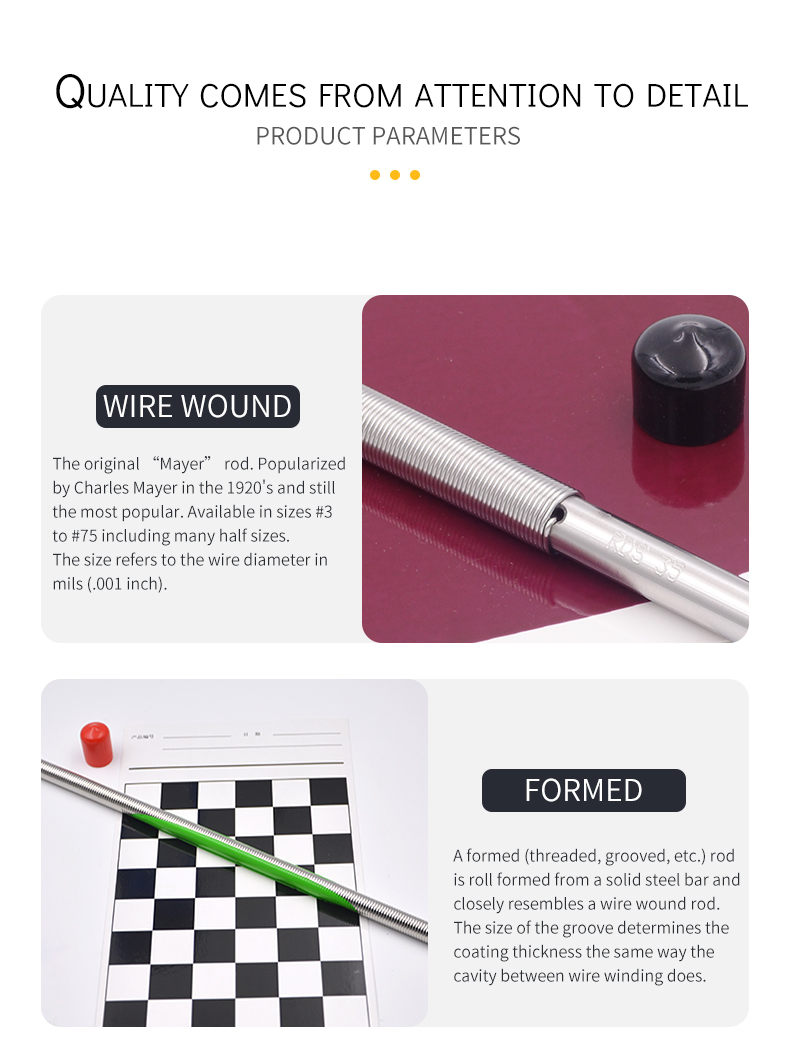

RDS coating Rods Figure 8

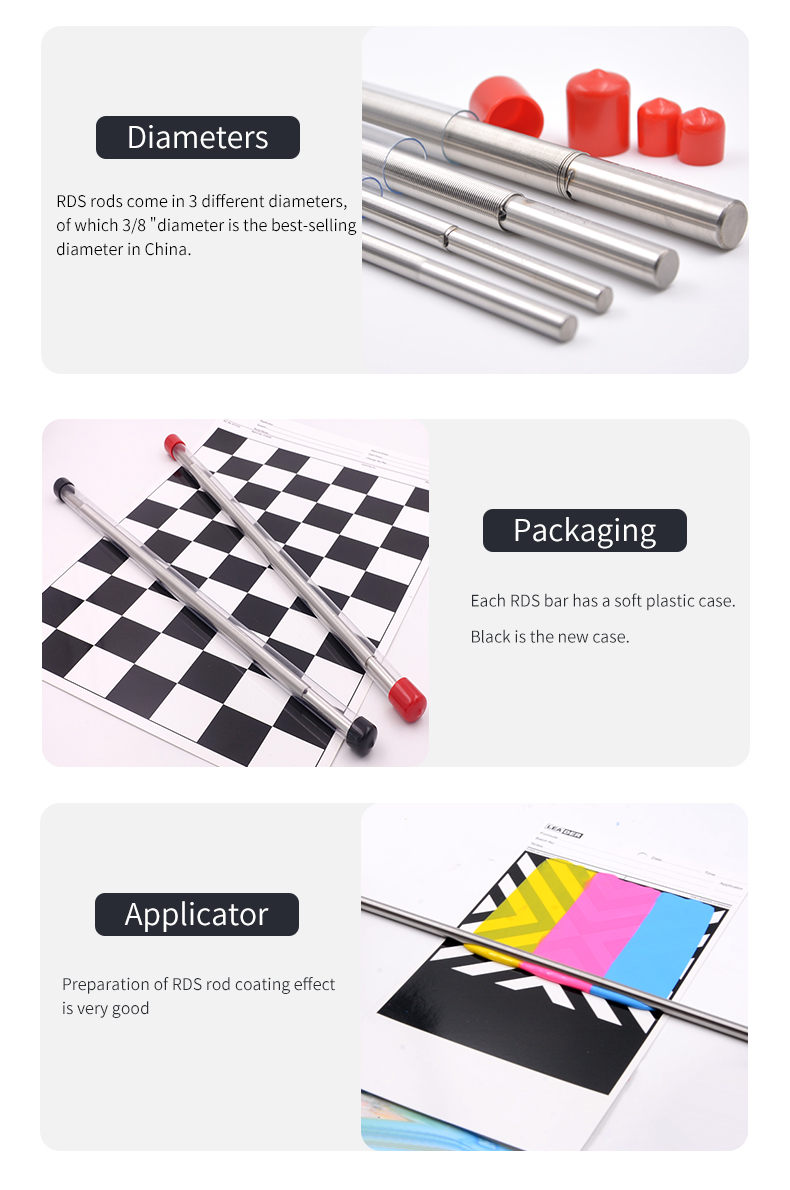

RDS coating Rods Figure 9

RDS coating Rods Figure 10




FAQ
QAre RDS coating rods available in different thicknesses? How to choose the model?
A RDS Mayer Rods has 49 models from 2 to 95, covering different wet film thicknesses. You can directly choose the model according to the wet film thickness you need, for example, #14 is 32 microns; or use the wet-film calculator in our mall to calculate the thickness and then choose, which is more accurate.
QHow is the Mayer-Rod scratch coating amount calculated? It is about 8g/m2 in line with the production wet coating amount, with a solid content of 25%. Which Mayer-Rod is suitable?
A Hello, according to NBchao's wet film calculator, it is about 32um, RDS14 stick.
QDoes RDS have 32 micron film Film thickness?
A Hello, the wet film thickness prepared by RDS No. 14 rod is 32μm.
QHow is the Mayer-Rod scratch coating amount calculated? The production wet coating amount is about 8g/m2, with a solid content of 25%.
A By calculating 32um
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QMeet GB/T13217.1 Applicator rod
A 14 #3/8 "Applicator rod, please refer to it.
QPrinting ink experiment is generally what number of Spreader roller?
A The selection of RDS Spreader sticks is calculated based on the amount of Spreader per square meter, Solid content and Density of the Printing ink you want to measure. The wet film thickness calculation can be provided/mohou/calculated. Thanks for your inquiry.
