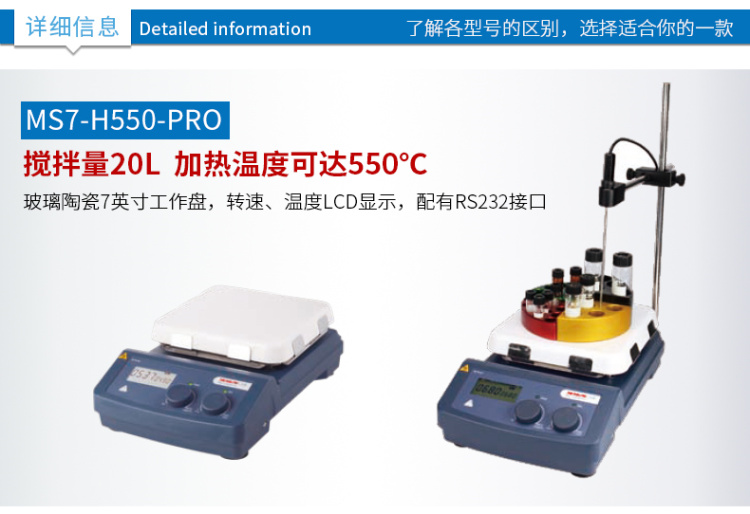

DLAB MS7-H550-Pro Magnetic Stirrer Single mixing point, stirring volume 20L

MS7-H550-Pro

Magnetic Stirrer

Introduction

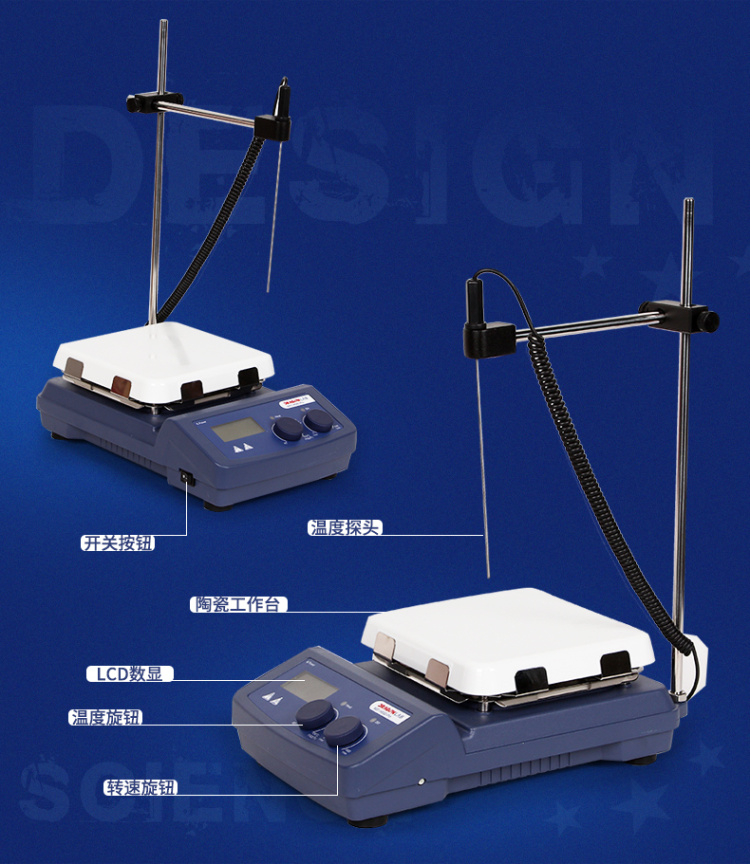

Dalong MS7-H550-Pro Magnetic Stirrer 7-inch square plate heating magnetic stirrer is suitable for low-viscosity liquid or solid-liquid mixing. It is mainly used in chemical synthesis, physical and chemical analysis, biology, materials science and other fields. PID temperature control technology precisely controls the heating process, quickly reaches the target temperature and accurately controls the temperature. The heating temperature is as high as 550℃, and it operates . The glass ceramic work plate is beautiful, easy to clean, and has good resistance to high temperatures and chemical corrosion. The temperature sensor PT1000 can be connected externally, plug and play, and monitor the actual temperature of the sample in real time.

Features and advantages

1. International safety quality

International safety certification: Obtained CE, cTÜVus and FCC product safety certifications issued by the highly credible TÜV Rheinland.

The whole machine is fully explosion-proof: the explosion-proof brushless DC motor is maintenance-free, ensuring laboratory safety.

Over-temperature protection: Independent safety circuit design, automatically stops heating when the panel temperature exceeds 580℃ to ensure laboratory safety.

The residual heat warning protects the operator: when the disk surface temperature exceeds 50℃ after stopping heating (even if the power is turned off and the power is not unplugged), an overheating reminder will appear.

Protect operator safety.

Closed shell: complies with the internationally accepted safety protection standard DIN/EN 60529, with high protection level IP21. The closed shell prevents liquid from splashing into the machine.

Partially corrode circuits to ensure safe operation.

2. The whole machine is designed to withstand high temperatures and corrosion.

Heating temperature up to 550℃

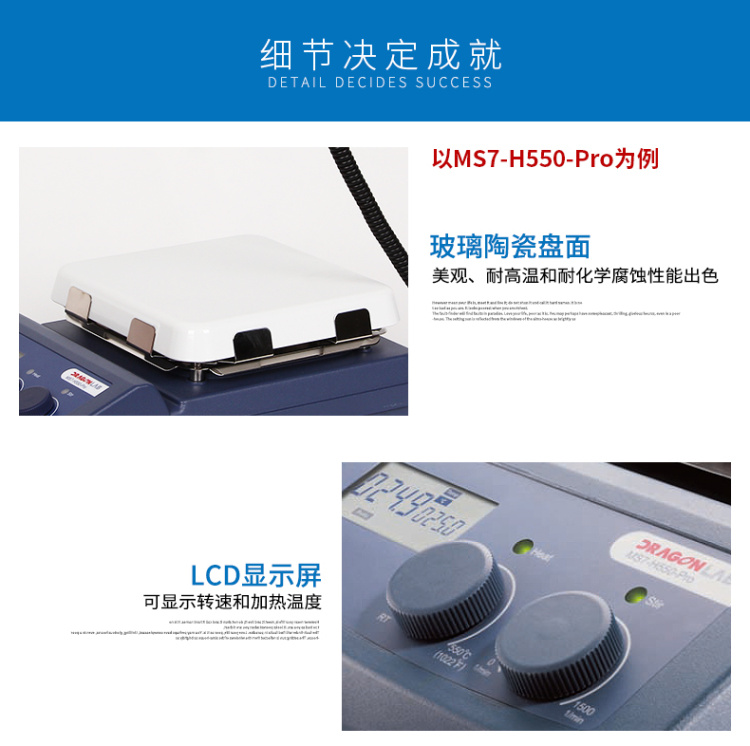

The imported glass ceramic disk is beautiful, has good high temperature resistance and chemical corrosion resistance, the aluminum alloy shell has good heat dissipation performance, and the spray-painted surface is resistant to chemical corrosion.

3. LCD real-time display

At the same time, the set value/actual value of speed and temperature is displayed, and the working status is monitored in real time.

4. Precise temperature control and easy operation

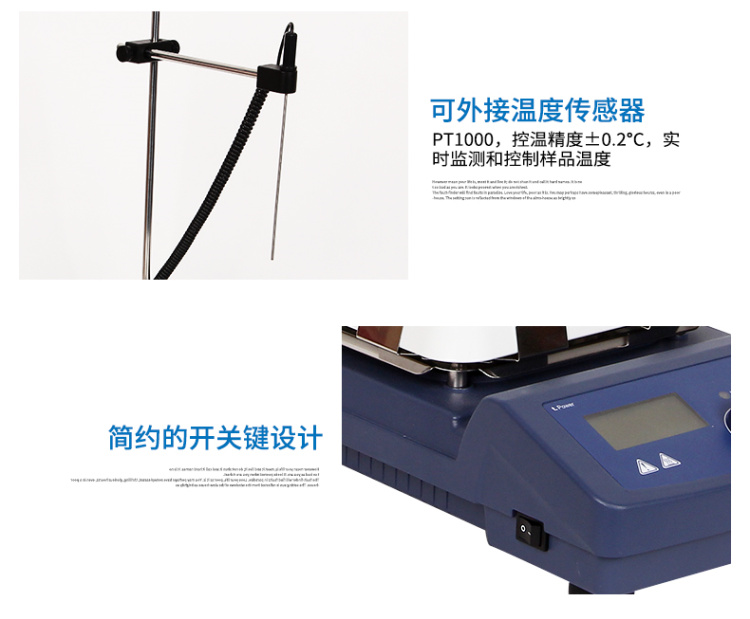

The temperature control accuracy of PT1000 temperature sensor is ±0.2℃, plug and play, and easy to operate;

Panel temperature control accuracy: ±1 (<100℃) ±1% (>100℃);

High output power, fast heating speed, and precise PID temperature control.

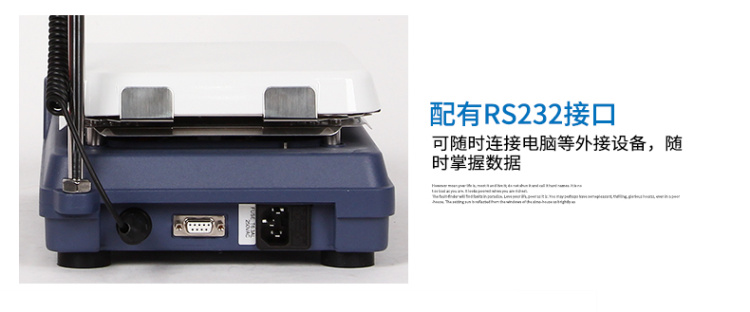

5. Open RS232 data output port

Connecting to the computer through the RS232 interface can realize remote control and save data.

Product display

Packing list：Host X1, quality assurance card X1, certificate of conformity X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
