DLAB MS-H-Pro + Magnetic Stirrer Aluminum plate heating temperature 340 ℃

DLAB MS-H-Pro + Magnetic Stirrer is used in chemical synthesis, physical and chemical analysis, biology, and other fields. The stirring amount is 20L, and the Speed range of MS-H-Pro + Magnetic Stirrer is 100~1500rpm, which is a single stirring point.

DLAB MS-H-Pro + (aluminum surface) Magnetic StirrerSPEC

DLAB MS-H-Pro + (aluminum surface) Magnetic StirrerDetails

DLAB MS-H-Pro + (aluminum surface) Magnetic StirrerPacking list

SKU
NB013010
Max. Capacity of stirring
20L
Stirring speed
100~1500rpm
Temperature range
RT+~340℃
Mixer size
≤80mm
Pan size
Φ135mm
Dimensions
160*280*85mm
Machine Weight
2.8kg
Panel Material
Aluminum surface
Motor type
DC brushless motor
Input Power
18W
output power
10W
Heating power
550W
Power
100~120/200~240V 50/60Hz
Rated Frequency
50/60Hz
station number
1 station
Display mode
LCD
Rotation speed Display resolution
±1rpm
Heating power
500w
Temperature control Accuracy
±1(<100℃)±1%(>100℃)
Safety protection temperature
360℃
Display resolution
±0.1℃
Temperature transducer
PT1000
External temperature transducer temperature control Accuracy
Pt1000:±0.2℃
Waste heat warning function
50℃
Interface
RS-232
Protection level
IP42
Ambient Temperature
5~40℃
Allowable Relative Humidity
80%
MS-H-Pro + (aluminum surface)
Magnetic Stirrer

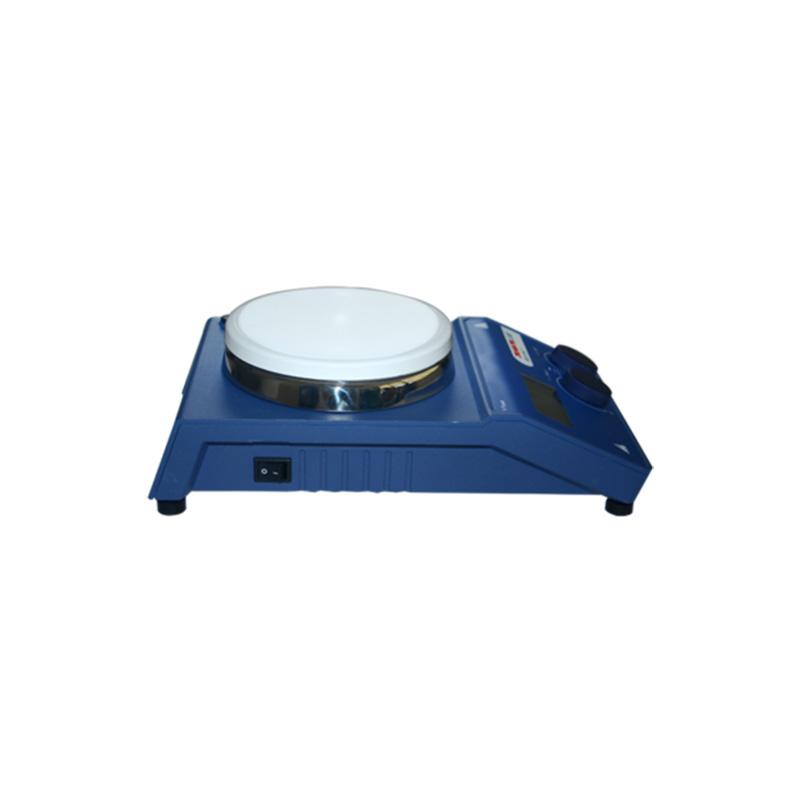

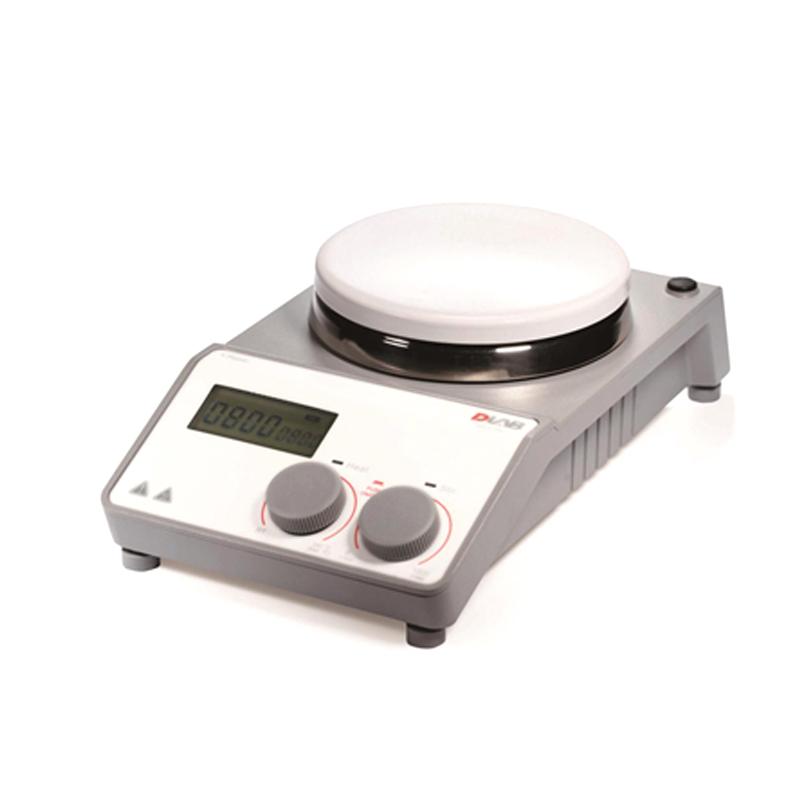

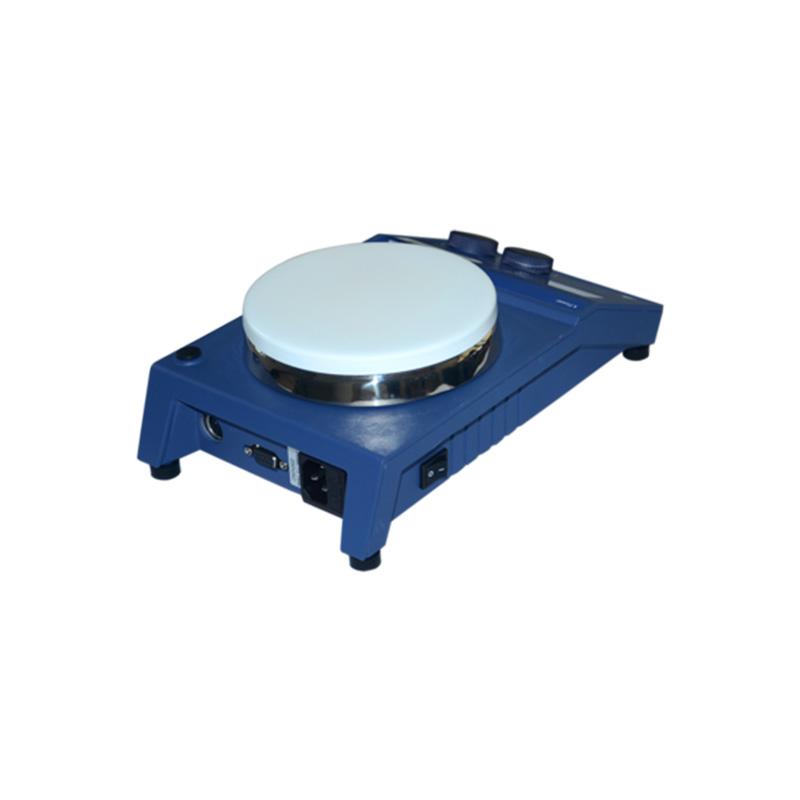

DLAB MS-H-Pro + Magnetic Stirrer Aluminum plate heating temperature 340 ℃ Picture

Introduction

Dalong MS-H-Pro+340℃ heated magnetic stirrer complies with all internationally recognized safety standards , is easy to use and extremely cost-effective. It is widely used in chemical synthesis, physical and chemical analysis, biology and other fields.

Features and advantages

• Equipped with brushless DC motor, explosion-proof and maintenance-free;

• Digital temperature control, the maximum temperature can reach 340℃;

• The maximum speed can reach 1500rpm;

• The maximum mixing volume (H2O) can reach 20L;

• When the disk surface temperature exceeds 50℃ after stopping heating, (even if the machine is turned off and the power is not unplugged), the disk surface temperature overheating reminder . Protect operator safety;

• Independent safety circuit design, when the panel temperature exceeds 360℃, heating will automatically stop to ensure laboratory safety;

• High-definition LCD display shows actual temperature and speed at the same time (MS-H-Pro T model also displays time);

• The temperature sensor PT1000 can be connected externally to accurately control the sample temperature with a temperature control accuracy of ±0.2℃;

• Stainless steel ceramic-coated work plate is extremely resistant to chemical corrosion;

• Equipped with remote control function, can connect to computer and transmit data;

• Various accessories are available.

Product display

FAQ
QDoes the DLAB Magnetic Stirrer meet the GB/T33546 standard?
A The MS-H-Pro + (Aluminum Disc) Magnetic Stirrer can refer to
