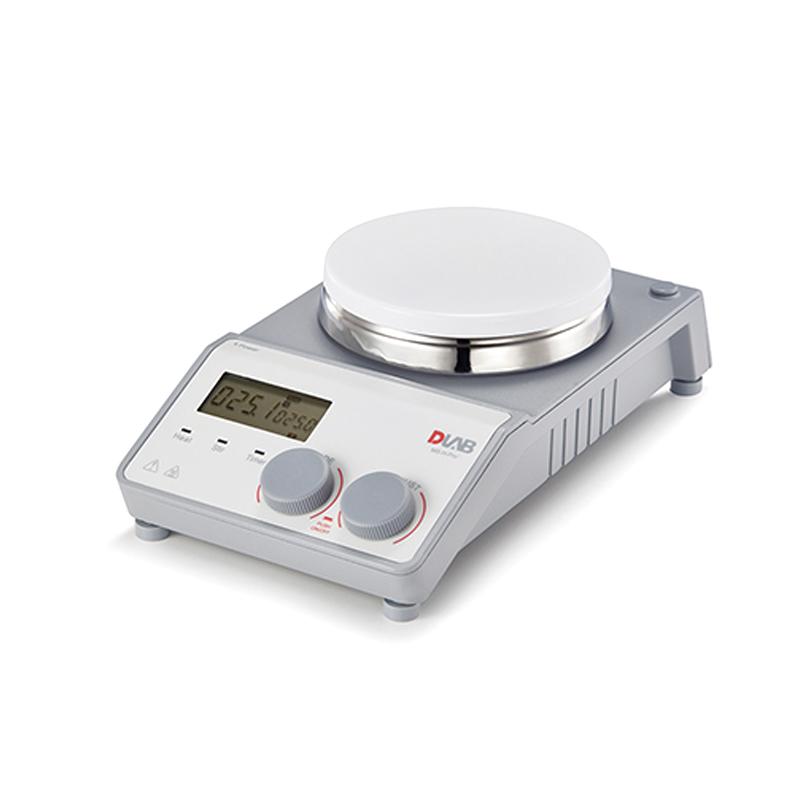

DLAB MS-H-ProT heating Magnetic Stirrer numerical control timing, stirring volume 20L

DLAB MS-H-ProT heating Magnetic Stirrer Speed range of 100~1500rpm, heating temperature up to 340 ℃, MS-H-ProT is a stainless steel ceramic coating numerical control Magnetic Stirrer, with timing function.
Model:

DLAB MS-H-ProT Numerical control timing heating Magnetic StirrerSPEC

DLAB MS-H-ProT Numerical control timing heating Magnetic StirrerDetails

DLAB MS-H-ProT Numerical control timing heating Magnetic StirrerPacking list

SKU
NB013011
Max. Capacity of stirring
20L
Stirring speed
100~1500rpm
Temperature range
RT+~340℃
Timer
1~5999min
Mixer size
80mm
Dimensions
160*280*85mm
Machine Weight
2.8kg
Panel Material
Stainless steel ceramic coating
Motor type
DC brushless motor
Input Power
18W
output power
10W
Heating power
550W
Power
100~120/200~240V
Rated Frequency
50/60Hz
station number
1 station
Display mode
LCD
Rotation speed Display resolution
±1
Heating power
500w
Temperature control Accuracy
±1(<100℃)±1%(>100℃)
Safety protection temperature
360℃
Display resolution
±0.1℃
Temperature transducer
PT1000
External temperature transducer temperature control Accuracy
Pt1000:±0.2℃
Waste heat warning function
50℃
Interface
RS-232
Protection level
IP42
Ambient Temperature
5~40℃
Allowable Relative Humidity
80%
MS-H-ProT
Numerical control timing heating Magnetic Stirrer
DLAB MS-H-ProT heating Magnetic Stirrer numerical control timing, stirring volume 20L Picture

Introduction

Dalong MS-H-Pro T 340℃ heated magnetic stirrer complies with all internationally recognized safety standards , is easy to use and extremely cost-effective. Widely used in chemical synthesis, physical and chemical analysis,

Biology and other fields.

Features and advantages

• Equipped with brushless DC motor, explosion-proof and maintenance-free;

• Digital temperature control, the maximum temperature can reach 340℃;

• The maximum speed can reach 1500rpm;

• The maximum mixing volume (H2O) can reach 20L;

• When the disk surface temperature exceeds 50℃ after stopping heating, (even if the machine is turned off and the power is not unplugged), the disk surface temperature overheating reminder . Protect operator safety;

• Independent safety circuit design, when the panel temperature exceeds 360℃, heating will automatically stop to ensure laboratory safety;

• Long Timer Setting, from 1 minute to 99 hours and 59 minutes (MS-H- Pro T model only);

• High-definition LCD display shows actual temperature and speed at the same time (MS-H-Pro T model also displays time);

• The temperature sensor PT1000 can be connected externally to accurately control the sample temperature with a temperature control accuracy of ±0.2℃;

• Stainless steel ceramic-coated work plate is extremely resistant to chemical corrosion;

• Equipped with remote control function, can connect to computer and transmit data;

• Various accessories are available.

Product display

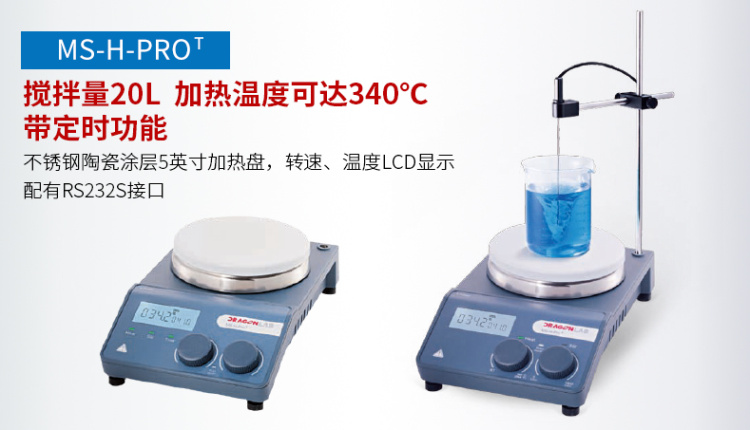

Dalong MS-H-Pro T display picture

FAQ
QI want to do a test on the GB/T33546 standard. Is this numerical control timing heating Magnetic Stirrer okay?
A Sure
