OS20-S

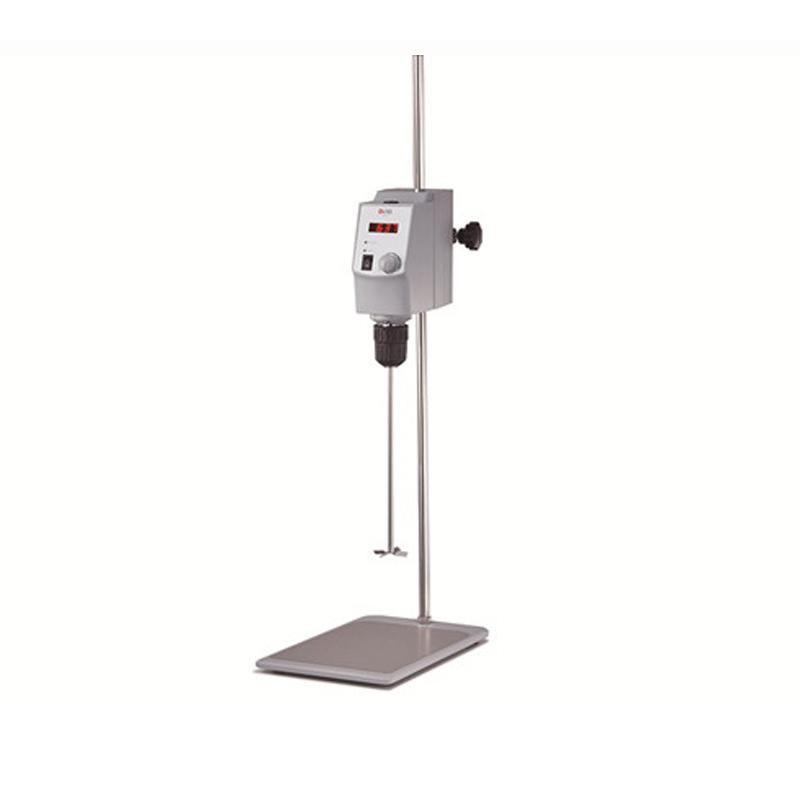

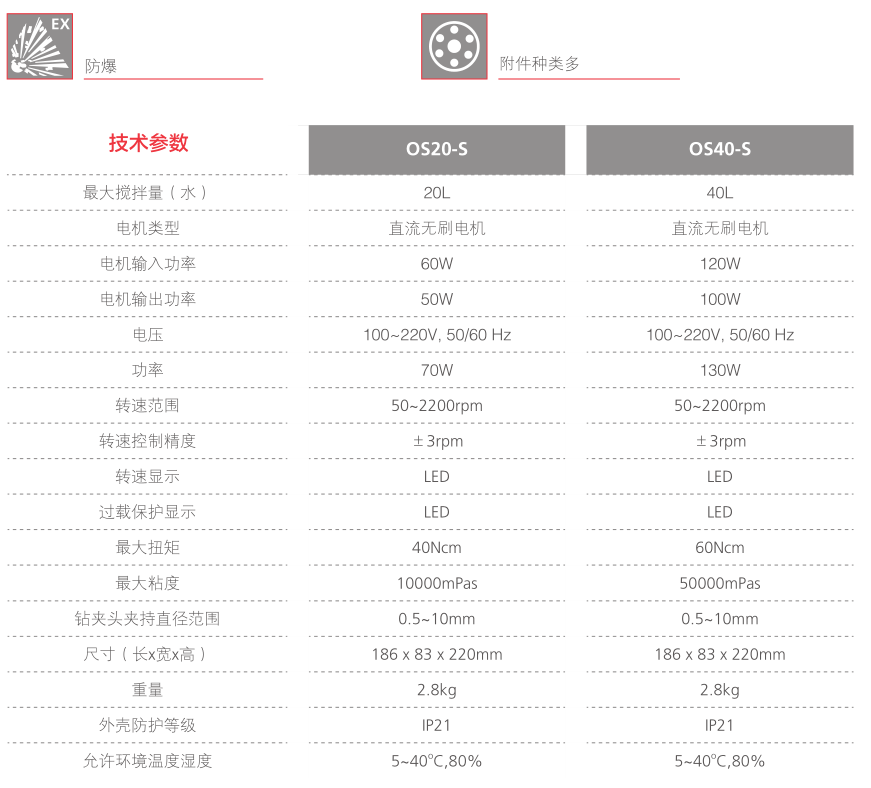

DLAB OS20-S Numerical control overhead electronic StirrerSPEC
DLAB OS20-S Numerical control overhead electronic StirrerDetails
DLAB OS20-S Numerical control overhead electronic StirrerPacking list
- SKU
- NB013085
- Processing Capacity
- 20L
- Input Power
- 60W
- Input Power
- 50W
- Rated Voltage
- 100~220V
- Rated Frequency
- 50/60Hz
- Power
- 70W
- Speed range
- 50~2200rpm
- Rotation speed control Accuracy
- ±3rpm
- Rotation speed display
- LED
- Rotation speed Display resolution
- ±1rpm
- Max Torque
- 40N.cm
- Torque display
- -
- Safety protection
- Overload protection LED light is on
- Safety protection
- The LED is on.
- maximum viscosity
- 10000mPa·s
- Rotary collet clamping range
- Φ0.5~10mm
- Dimensions
- 220*83*186mm
- Machine Weight
- 2.8kg
- Protection level
- IP21
- Environmental temperature
- 5~40℃
- Allowable Relative Humidity
- ≤80%
- Interface
- without
OS20-S
Numerical control overhead electronic Stirrer

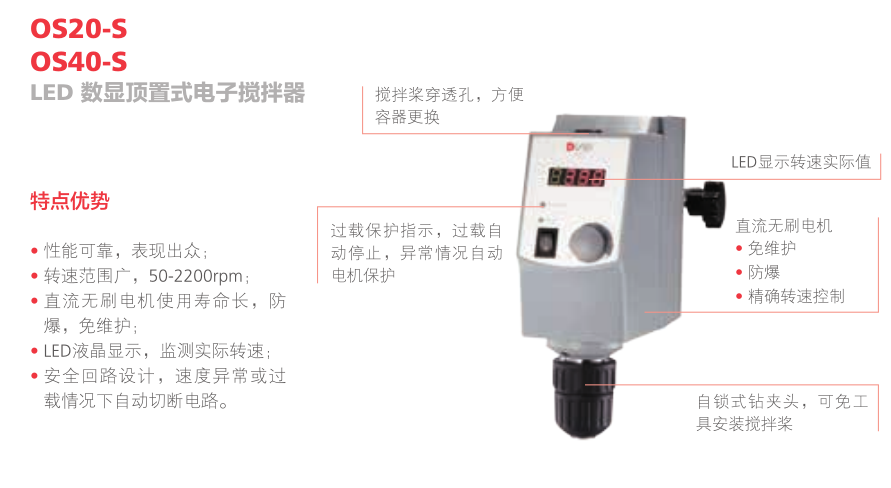

Features
Capable of high-load, ultra-long continuous work, outstanding performance.
The speed range is wide from 0 to 2200 rpm, and the high-low speeds are accurate and controllable.
Brushless DC motor, low noise, maintenance-free.
The speed LED display allows for real-time data reading.
Overload protection: overload automatically stops to ensure safe operation.
Sample spillage prevention: Smooth start-up, effectively preventing sample spillage.
Safety loop setting: the circuit will be automatically cut off in case of abnormality to ensure the safety of users.
FAQ
QExcuse me, can this OS20-S Stirrer have a capacity of 2L?
A
Hello, this maximum Impeller is 20 liters.
QCan this DLAB numerical control overhead electronic Stirrer correspond to GB/T11543?
A
Yes, please refer to the NBchao standards page for specific standards.
