Dual-use Coating Thickness Gauge AMITTARI AC-110AS metal high temperature probe, thickness range 0~1250um

AMITTARI AC-110AS dual-use Coating Thickness Gauge is a high temperature custom metal probe, external type, can measure the surface Coating thickness below 200 ℃, AC-110AS thickness range is 0~1250um.
Certificate
Contact
Details SPEC VIDEO
Similar products

AMITTARI AC-110AS (high temperature customized model) Coating Thickness GaugeSPEC

AMITTARI AC-110AS (high temperature customized model) Coating Thickness GaugeDetails

AMITTARI AC-110AS (high temperature customized model) Coating Thickness GaugePacking list

SKU
NB013162
Measurement principle
Magnetic induction + eddy current
Measuring range
0 ~ 1250µm
margin of error
±3%
resolution
0.1mm | 1mm
Minimum measurement surface
F6mm
Minimum radius of curvature
F: convex 1.5mm/concave 25mm; N: convex 3mm/concave 50mm
thinnest matrix
0.3mm
probe
F and NF split probes
Minimum headroom
90mm
icon function
without
Power
2 * AAA 1.5V battery
Standards
ISO2178、ISO2360、Gb4956、Gb4957
Calibrated Certificate
without
Language
Chinese
Display screen
4-Bit digital backlight LCD
Data Interface
RS-232C、USB、Bluetooth
supporting software
Yes (optional)
Total Weight
90G (without battery)
Complete-built unit size
130*63*24mm
Statistical function
Single measurement, continuous measurement
Operating Temperature
0~50℃
Optional accessories
RS-232C data cable interface, USB data cable output, Bluetooth Data output
Relative Humidity
<80% RH
AC-110AS (high temperature customized model)
Coating Thickness Gauge

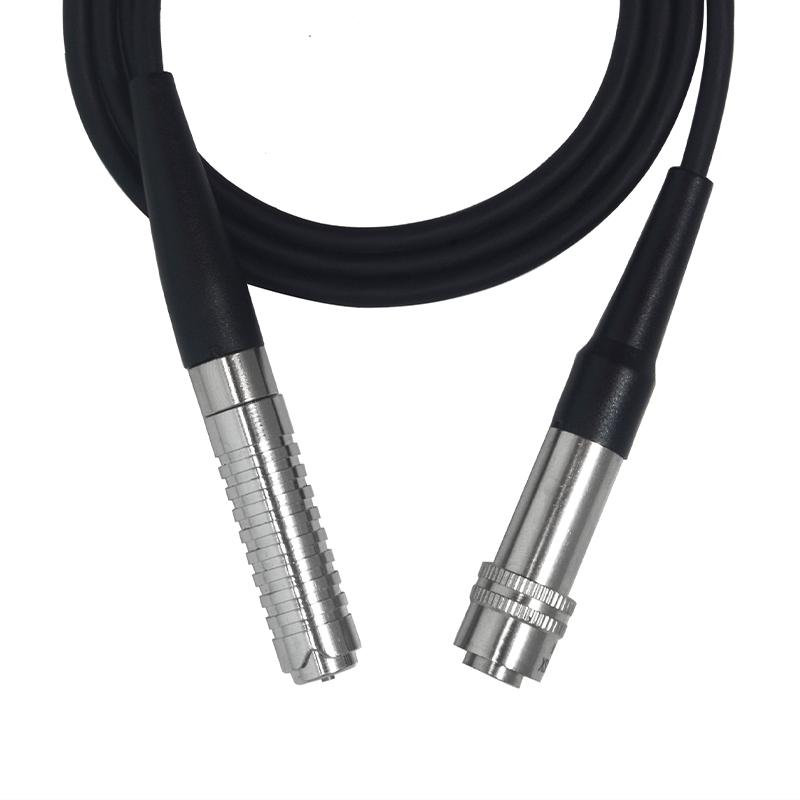

Dual-use Coating Thickness Gauge AMITTARI AC-110AS metal high temperature probe, thickness range 0~1250um Picture
FAQ
QCoating thickness on the high temperature mold, the size of the workpiece is only 20mm
A This one is ok.
QI want to do a test about the ISO2360 standard. Is this Coating thickness gauge okay?
A Sure
