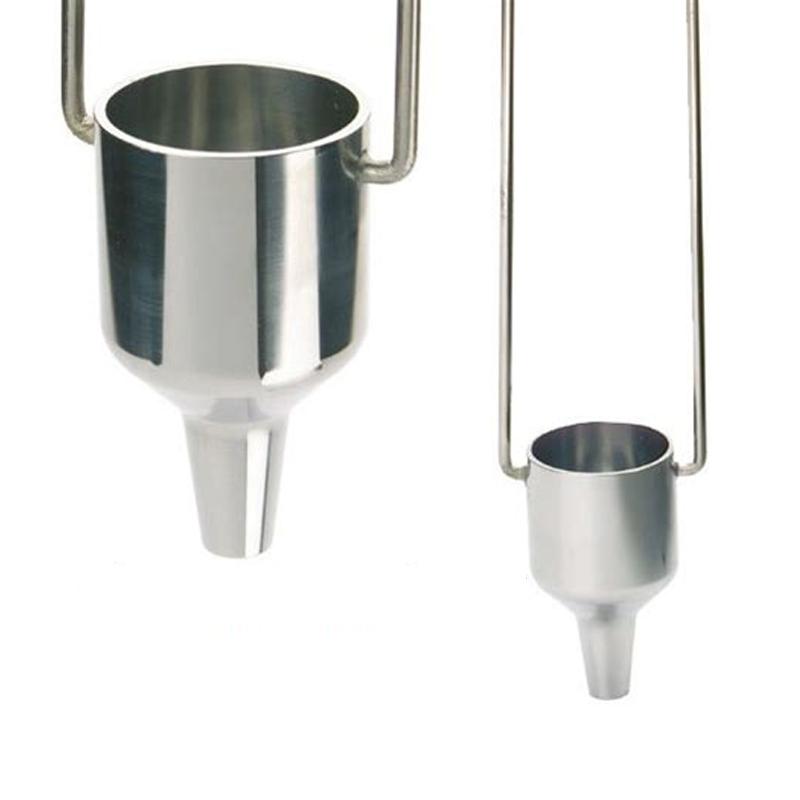

British Sheen ref. 422/6 Shell Viscosity Cup Portable Viscosity Cup 5.8mm
ref.422/6
SHEEN ref.422/6 Shell Viscosity CupSPEC
SHEEN ref.422/6 Shell Viscosity CupDetails
SHEEN ref.422/6 Shell Viscosity CupPacking list
- SKU
- NB013188
- Viscosity range
- 320~1300cSt
- outflow time
- 20~80s
- flow hole diameter
- 5.8mm
- Cup body material
- stainless steel
- Applicable standards
- ASTM D4212
- Certificate
- optional
Zahn and Shell cups
A Zahn cup made of brass plating and a shell cup made of stainless steel are housed with oneLiquid baths, these cups are often used for a quick check of product flow.
The Zahn cup series is suitable for paints and inks, while the Shell cup is designed with a capillaryTube bore, suitable for inks, enamels and lacquers.
Frikmar Cup
The cup is the same size as the countertop cup according to DIN 53211 and is equipped with a handle and can be enteredImmersion testing is performed.
In fact, all standard cups are available in this model if requested (i.e. mentionedfor handles) and with the same precision and quality.
Lory Cup
The cup is made of shiny nickel-plated steel and is often used for inspection purposes. Fill the cup to the brim,Flow time is obtained when the needle mounted at the bottom of the cup is exposed.
The optional stand holds 5 Zahn cups
Temperature/Viscosity Calculator
These useful devices can be used to test viscosity when the temperature is not specifiedCorrect calculations. The device consists of two discs, one of which is mounted on top of the other.
The upper disc is rotated to a specified temperature, and the corresponding stickiness at other temperatures can be readDegree value.
